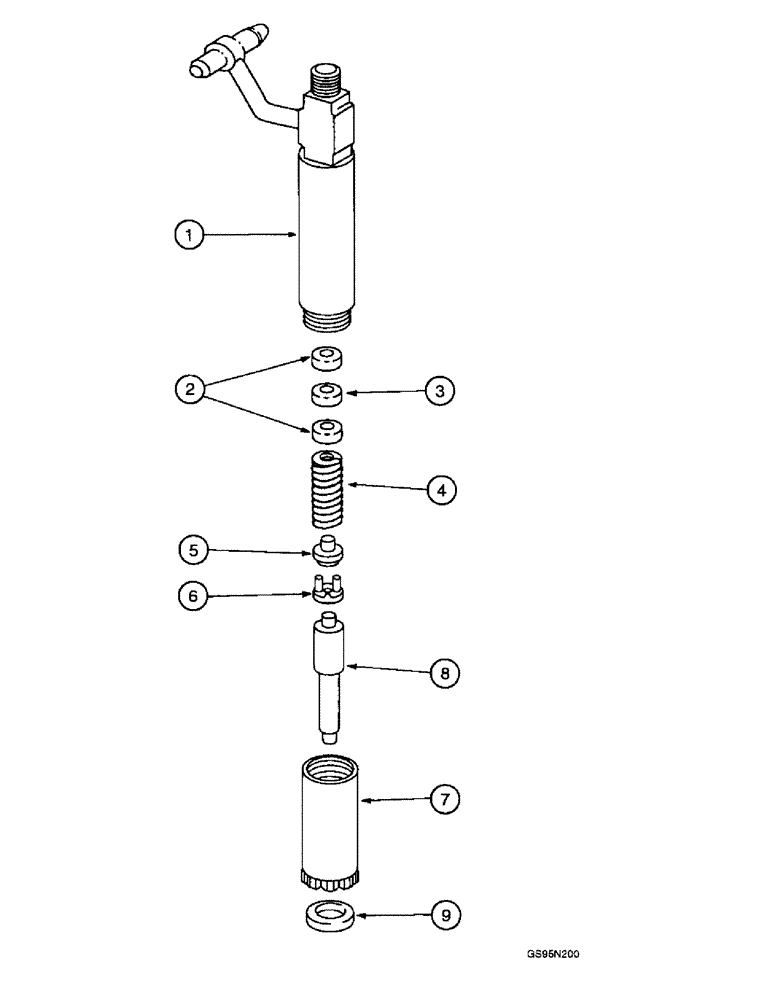

Запчасти Case IH DTI-466B (9E-106) - AMBAC INJECTION NOZZLE

682654C91

NOZZLE CAP

NOZZLE ASSEMBLY - injection, new, used with 4366 tractors, 4386 tractors with engine serial numbers prior to 77300, 3488 tractors, 1822 cotton pickers and 1640 combines, Includes: Ref. 1 - 9

1шт.

749039C91

REMAN-FUEL INJECTOR

NOZZLE ASSEMBLY - injection, remanufactured for 682654C91 , component parts on this page do not apply to the remanufactured assembly

1шт.

1934151C1

CORE-FUEL INJECTOR

RETURN NUMBER - use this part number to return nozzle for credit when using a remanufactured assembly

1шт.

687372C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, new, used with 4386 tractors with engine serial number 77300 & after, 3788 & 6788 tractors, 3588 & 6588 tractors, 1480 rice combines, 1470 hillside combines, 5288 & 5488 tractors, 7288 & 7488 tractors, Includes: Ref. 1 - 9

1шт.

749945C91

REMAN-FUEL INJECTOR

NOZZLE ASSEMBLY - injection, remanufactured for 687372C92, component parts on this page do not apply to the remanufactured assembly

1шт.

1934157C1

CORE-FUEL INJECTOR

RETURN NUMBER - use this part number to return nozzle for credit when using a remanufactured assembly

1шт.

1

680413C1

BODY

BODY - nozzle holder

1шт.

2

680414C1

SPACER

SPACER - nozzle

2шт.

3

680415C1

SPACER

SPACER - spring adjusting, 0.002 inch

1шт.

3

680416C1

SPACER

SPACER - spring adjusting, 0.007 inch

1шт.

3

680418C1

SPACER

SPACER - spring adjusting, 0.010 inch

1шт.

3

680419C1

SPACER

SPACER - spring adjusting, 0.025 inch

1шт.

3

680420C1

SPACER

SPACER - spring adjusting, 0.375 inch

1шт.

3

680421C1

SPACER

SPACER - spring adjusting, 0.028 inch

1шт.

3

680422C1

SPACER

SPACER - spring adjusting, 0.030 inch

1шт.

3

680423C1

SPACER

SPACER - spring adjusting, 0.035 inch

1шт.

4

680424C1

SPRING

SPRING - pressure adjusting

1шт.

5

680433C1

GUIDE

GUIDE - spring seat

1шт.

6

A44862

VALVE

SPACER - valve stop (Replaces spacer 680434C1)

1шт.

7

680435C1

NUT

NUT - nozzle cap

1шт.

8

682960C1

NOZZLE CAP

TIP - nozzle, used with nozzle assembly 682654C91

1шт.

8

687400C1

NOZZLE CAP

TIP - nozzle, used with nozzle assembly 687372C91

1шт.

9

1342829C1

GASKET

GASKET - nozzle, injector (Replaces gasket 675477C1)

1шт.
