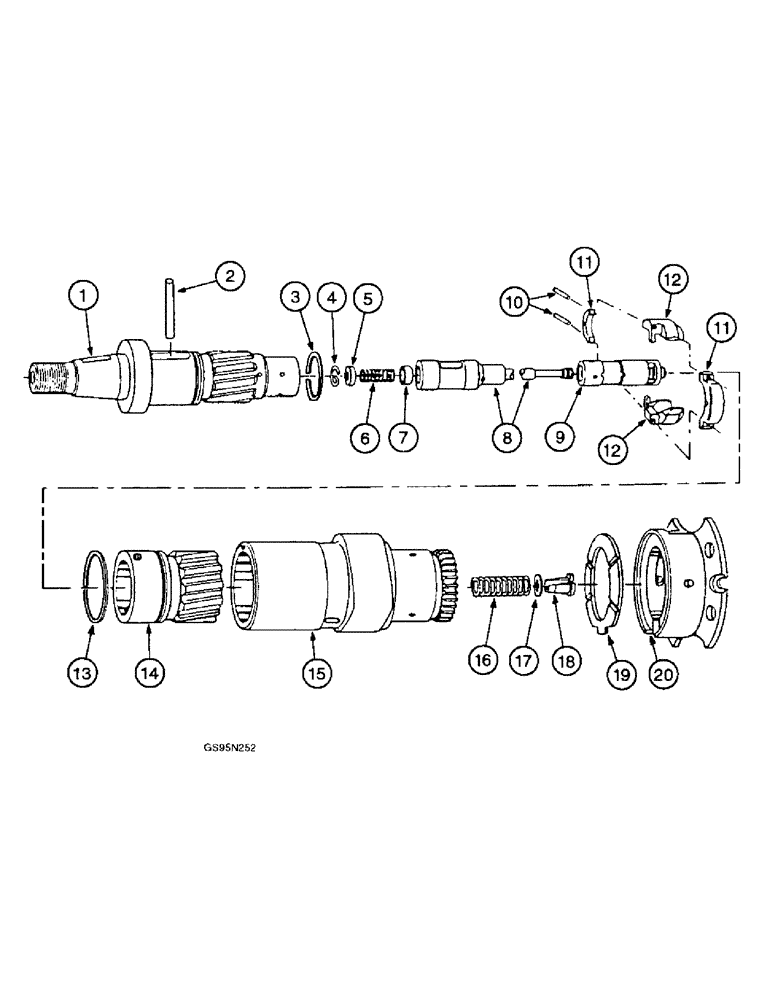

Запчасти Case IH DTI-466B (9E-104) - FUEL INJECTION PUMP, AMERICAN BOSCH CAMSHAFT

735312C91

REMAN-ANEROID

CAMSHAFT ASSEMBLY - intravance, 14 degree, remanufactured for camshaft assembly 687012C92 (North America only), component parts on this page do not apply to the remanufactured assembly, no longer available

1шт.

1934181C1

CORE-ANEROID

RETURN NUMBER - use this part number to return camshaft core for credit when using a remanufactured assembly, no longer used

1шт.

687012C92

CAMSHAFT

ASSEMBLY - intravance, 14 degree, new, used with injection pump assembly 691180C91, parts list Figure 9E-44, Includes: Ref. 1 - 20

1шт.

735315C91

REMAN-ANEROID

CAMSHAFT ASSEMBLY - intravance, 14 degree, remanufactured for camshaft assembly 687147C92 (North America only), component parts on this page do not apply to the remanufactured assembly, no longer available

1шт.

1934187C1

CORE-ANEROID

RETURN NUMBER - use this part number to return camshaft core for credit when using a remanufactured assembly, no longer used

1шт.

687147C92

CAMSHAFT

ASSEMBLY - intravance, 14 degree, new, used with injection pump assembly 691335C91, parts list Figure 9E-44, Includes: Ref. 1 - 20

1шт.

1802347C93

CAMSHAFT

ASSEMBLY - intravance, 14 degree, new, used with injection pump assembly 691492C92, parts list Figure 9E-44, Includes: Ref. 1 - 20

1шт.

1802667C91

CAMSHAFT

ASSEMBLY - intravance, 20 degree, new, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - cam, order camshaft assembly

1шт.

2

1802401C1

PIN

- sleeve and rod, no longer available

1шт.

3

1802402C1

RING

- shaft seal

1шт.

4

1802419C1

RING

- spring guide, for camshaft assemblies 1802347C92 and 1802347C93

1шт.

5

1802418C1

GUIDE

- retard piston spring, for camshaft assemblies 1802347C92 and 1802347C93

1шт.

6

1802417C1

SPRING

- retard piston, for camshaft assemblies 1802347C92 and 1802347C93

1шт.

7

1802416C1

PISTON

- retard, for camshaft assembly 1802347C92

1шт.

8

1802415C1

ROD

- follow-up, used with all camshaft assemblies except 1802347C92 and 1802347C93

1шт.

8

1802547C1

ROD

- follow-up, for camshaft assembly 1802347C92

1шт.

8

1806596C1

ROD

- follow-up, for camshaft assembly 1802347C93

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - control, order camshaft assembly

1шт.

10

1802403C1

PIN

- weight

2шт.

11

1802426C1

WEIGHT

SPIDER - weight, no longer available

2шт.

12

1802404C1

WEIGHT

- control valve, no longer available

2шт.

13

1802405C1

RING

- sleeve seal

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - spline, order camshaft assembly

1шт.

15

NSS

NOT SOLD SEPARAT

CAM - order camshaft assembly

1шт.

16

1802422C1

SPRING

- advance, for camshaft assembly 687012C92

1шт.

16

1802423C1

SPRING

- advance, for camshaft assembly 687147C92

1шт.

16

1802424C1

SPRING

- advance, for camshaft assemblies 1802347C92 and 1802347C93

1шт.

16

1802668C1

SPRING

- advance, for camshaft assembly 1802667C91

1шт.

17

1802411C1

WASHER

- advance spring, 0.004 inch thick

1шт.

17

1802407C1

WASHER

- advance spring, 0.010 inch thick

1шт.

17

1802408C1

WASHER

- advance spring, 0.015 inch thick

1шт.

17

1802409C1

WASHER

- advance spring, 0.040 inch thick

1шт.

17

1802410C1

WASHER

- advance spring, 0.060 inch thick

1шт.

18

1802406C1

GUIDE

- spring seat

1шт.

19

684309C1

WASHER

- thrust

1шт.

20

674841C1

PLATE

- bearing

1шт.
