Запчасти Case IH DTI-466B (9E-084) - INJECTION PUMP ELECTRIC SHUT-OFF AND MOUNTING

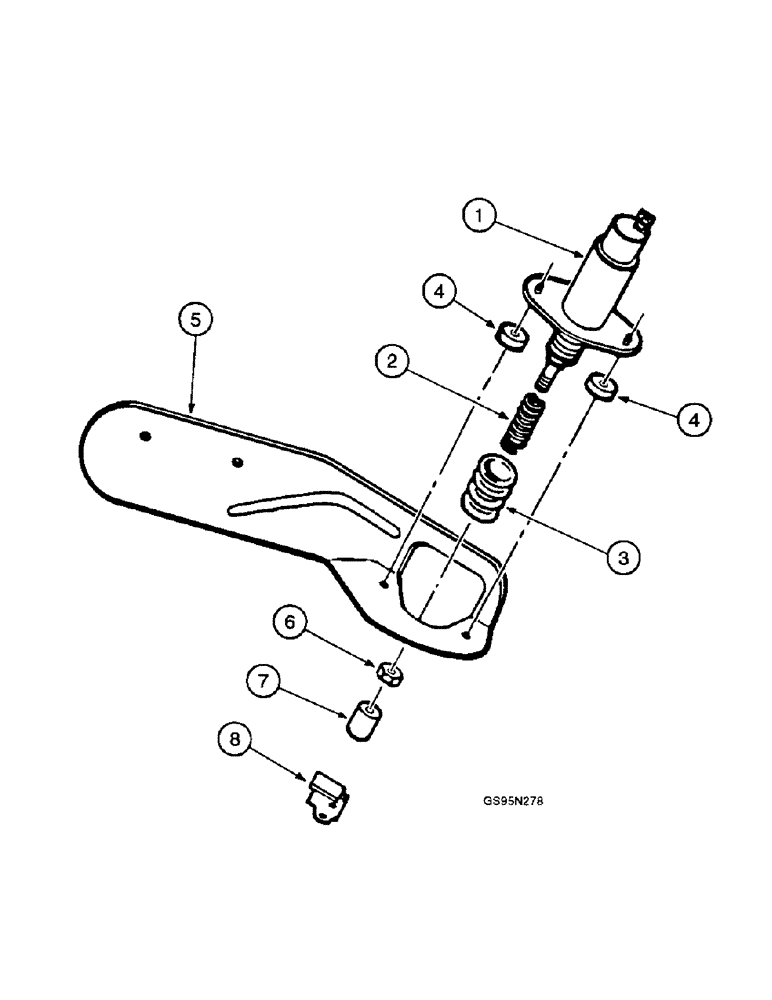

Схема запчастей Case IH DTI-466B - (9E-084) - INJECTION PUMP ELECTRIC SHUT-OFF AND MOUNTING
7
8
1
6
4
5
3
2
4

Артикул

Название

Примечание

Количество

1

1803195C91

SWITCH

SOLENOID ASSEMBLY - injection pump electric shut-off, Includes: Ref. 2 & 3

1шт.

2

1800294C1

SPRING

- electric shut-off solenoid return

1шт.

3

1800295C1

BOOT

- electric shut-off solenoid dust

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces screw 180079)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

23776D

SPACER - electric shut-off solenoid mounting, no longer used

2шт.

5

1803194C1

BRACKET

- solenoid mounting

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 180121) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

6

26030R1

NUT,1/4"-28, G8

- hex, 1/4 inch NF

1шт.

7

1802988C1

TAPPET

- electric shut-off solenoid

1шт.

8

1806202C1

LEVER

- electric shut-off solenoid

1шт.

455858

ANGLE BAR

SCREW - hex, No. 10 x 1/2 inch, no longer used

1шт.

115707

LOCK WASHER,#10

Washer, Lock, #10

1шт.

225-14110

NUT,#10-24

(Replaces nut 120361) #10-24

1шт.

Выбрано товаров: 15
