Запчасти Case IH DTI-466B (9E-078) - FUEL INJECTION PUMP, ROBERT BOSCH MODEL MW

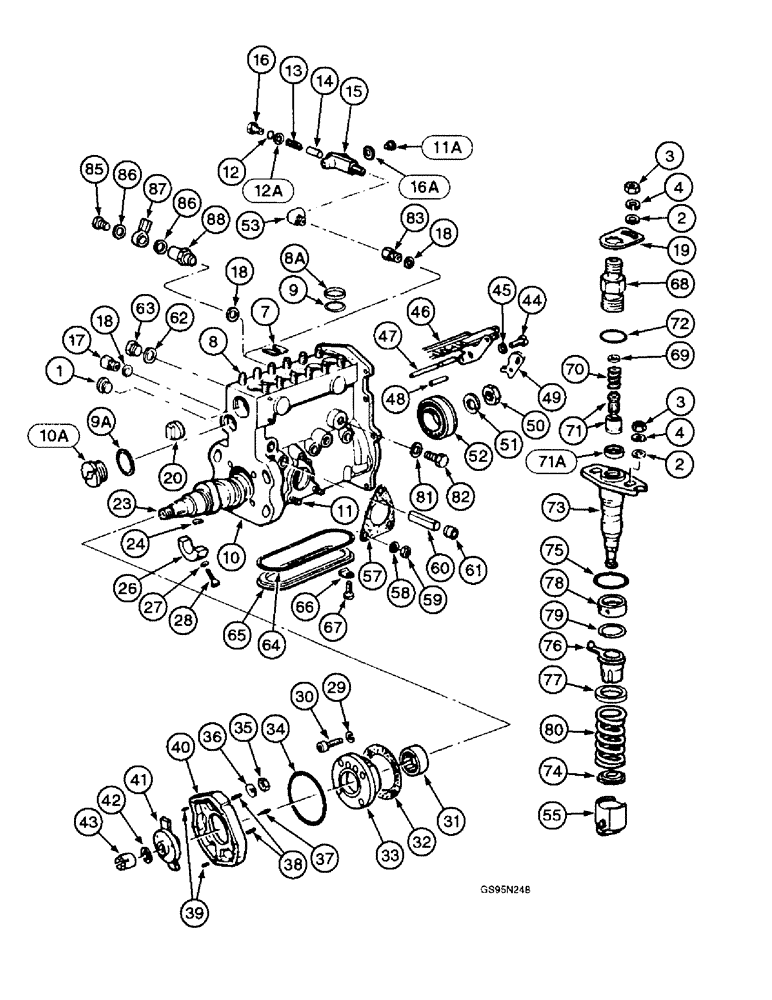

Схема запчастей Case IH DTI-466B - (9E-078) - FUEL INJECTION PUMP, ROBERT BOSCH MODEL MW
74
9
17
3
83
55
45
34
69
1
44
65
85
86
12a
27
10a
75
4
43
18
31
3
16a
37
14
30
36
2
2
18
39
18
20
11
80
16
76
41
79
81
66
10
13
49
77
62
24
87
52
60
8a
73
63
9a
46
38
7
71a
67
23
19
35
47
32
26
42
64
59
4
12
8
28
29
40
88
58
68
33
70
71
82
11a
86
57
50
78
61
15
53
72
51
48

Артикул

Название

Примечание

Количество

735189C91

REMAN-INJECTION PUMP

1470 Chasis SN 12001 & Aft., 1480 w/Eng. SN 103042 & Aft., Both w/DTI-466C Eng., Reman For New P/N 1802612C93

1шт.

1934141C1

CORE-INJECTION PUMP

Retturn Number

1шт.

1802612C93

PUMP

ASSEMBLY - fuel injection, new, Includes: Ref. 1 - 89

1шт.

1934206C1

REMAN-INJECTION PUMP

DT-466, DT-466B, Both TURBO, DTI-466, DTI-466B, DTI-466C, D-466, All TURBO INTERCOOLED, All 6 CYLINDER DIESEL ENGINE, PUMP ASSEMBLY - fuel injection, new

1шт.

1934207C1

CORE-INJECTION PUMP

Return Number

1шт.

1

1806293C1

PLUG

- housing screw

1шт.

2

1806270C1

SPACER

- housing stud and plunger plate lock

18шт.

3

691265C1

NUT

- hex, special, pump housing stud and plunger plate lock

18шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Housing Stud and Plunger Plate M6

18шт.

7

1802256C1

SHIM

- 1.0 mm

1шт.

7

1802257C1

SHIM

- 1.05 mm

1шт.

7

1802258C1

SHIM

- 1.1 mm

1шт.

7

1802259C1

SHIM

- 1.15 mm

1шт.

7

1802260C1

SHIM

- 1.2 mm

1шт.

7

1802261C1

SHIM

- 1.25 mm

1шт.

7

1802262C1

SHIM

- 1.3 mm

1шт.

7

1802263C1

SHIM

- 1.35 mm

1шт.

7

1802264C1

SHIM

- 1.4 mm

1шт.

7

1802265C1

SHIM

- 1.45 mm

1шт.

7

1802266C1

SHIM

- 1.5 mm

1шт.

7

1802267C1

SHIM

- 1.55 mm

1шт.

7

691315C1

SHIM

- 1.6 mm

1шт.

7

691316C1

SHIM

- 1.65 mm

1шт.

7

691317C1

SHIM

- 1.7 mm

1шт.

7

691318C1

SHIM

- 1.75 mm

1шт.

7

691319C1

SHIM

- 1.8 mm

1шт.

7

691320C1

SHIM

- 1.85 mm

1шт.

7

691321C1

SHIM

- 1.9 mm

1шт.

7

691322C1

SHIM

- 1.95 mm

1шт.

7

691323C1

SHIM

- 2.0 mm

1шт.

7

691324C1

SHIM

- 2.05 mm

1шт.

7

691325C1

SHIM

- 2.1 mm

1шт.

7

691326C1

SHIM

- 2.15 mm

1шт.

7

691327C1

SHIM

- 2.2 mm

1шт.

7

691328C1

SHIM

- 2.25 mm

1шт.

7

691329C1

SHIM

- 2.3 mm

1шт.

7

691330C1

SHIM

- 2.35 mm

1шт.

7

691331C1

SHIM

- 2.4 mm

1шт.

7

691332C1

SHIM

- 2.45 mm

1шт.

7

691333C1

SHIM

- 2.5 mm

1шт.

1808651C91

HOUSING

ASSEMBLY - pump, Includes: Ref. 8 - 11

1шт.

8

1806269C1

PLUG

STUD - pump housing

12шт.

8a

691261C1

SPACER

- housing plunger

6шт.

9

691262C1

O-RING

- housing plunger

6шт.

9a

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, , Housing plug M26 x 31 x 2

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - pump, order housing assembly 1808651C91

1шт.

10a

691260C1

PLUG

- housing screw, no longer available

1шт.

691563C1

PLUG

- housing, no longer available

1шт.

11

397624C1

STUD

- pump housing, fuel supply

3шт.

670889C91

TEE

VALVE ASSEMBLY - check, overflow, no longer available, order valve assembly 1809795C91, see Figure 9E-82, Includes: Ref. 11A - 16A

1шт.

11a

1809794C1

PLUG - allen-head, metric, no longer available

1шт.

11a

625601C1

PLUG

- hex, no longer available

1шт.

12

933610R1

SEALING RING,M14 x 18 x 1.8

Piston plug, Used with check valve assembly 670889C91 M14 x 18 x 1.8

1шт.

12a

625600C1

WASHER

- 0.3 mm, no longer available

1шт.

13

625598C1

VALVE SPRING

SPRING - piston, no longer available

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - stem, no longer available

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - valve, no longer available

1шт.

16

1806417C1

PLUG

- piston, used with check valve assembly 670889C91

1шт.

16a

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing, copper, used with metric plug 1809794C1

1шт.

17

625924C1

FITTING

- fuel inlet

1шт.

18

397630C1

PACKING RING

GASKET - fuel inlet and outlet fitting

2шт.

19

1806294C1

PLATE ASSY.

PLATE - plunger lock

6шт.

20

691263C1

PLUG

- housing rack

1шт.

23

1806505C1

CRANKSHAFT

CAMSHAFT - injection pump

1шт.

24

3056409R1

KEY

- Woodruff, camshaft

1шт.

26

691252C1

SUPPORT ASSY.

SUPPORT - camshaft

1шт.

27

1806284C1

WASHER

- lock, support, no longer available

2шт.

28

1811729C1

SCREW

- camshaft support (Replaces screw 1806285C1)

2шт.

29

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Front Bearing Housing (Replaces washer 1806276C1) M6

4шт.

30

1806918C1

SCREW,Torx, M6 x 15mm

- front bearing housing

4шт.

31

1806273C91

BEARING

- camshaft front, no longer available

1шт.

32

1806274C1

GASKET

- front bearing housing, no longer available

1шт.

33

1806275C1

HOUSING

- front bearing

1шт.

34

670875C1

O-RING,88mm ID x 3mm Width

RING - front bearing housing

1шт.

36

625566C1

WASHER

- adapter stud, no longer available

4шт.

1811726C91

ADAPTER

ASSEMBLY - injection pump mounting (Replaces adapter assembly 1802642C91), Includes: Ref. 37 - 40

1шт.

37

691349C1

POINTER

- timing

1шт.

38

691313C1

STUD

- adapter

4шт.

39

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

40

NSS

NOT SOLD SEPARAT

ADAPTER - injection pump, order adapter assembly 1811726C91

1шт.

41

1802649C1

HUB CAP

HUB - injection pump

1шт.

42

691243C1

WASHER

- lock, pump drive hub

1шт.

43

1802705C1

NUT

- pump drive hub

1шт.

44

P32514

SCREW

- control rack (Replaces screws 931393R1 and 684732C1)

2шт.

45

492-11006

LOCK WASHER,#6

Washer, Lock, , Control rack (Replaces washer 933987R1) #6

2шт.

46

1808710C1

RACK

- plunger control

1шт.

47

691254C1

AXLE PIN

PIN - pump back

1шт.

48

691256C1

AXLE PIN

PIN - stop plate

1шт.

49

691257C1

PLATE ASSY.

PLATE - stop, no longer available

1шт.

50

691251C1

NUT

- camshaft rear

1шт.

51

691250C1

WASHER

- lock, camshaft rear

1шт.

52

691249C91

BEARING

- camshaft rear

1шт.

53

444041

ELBOW

- street, 90 degree x 1/4 inch NPT, used with check valve assembly 670889C91

1шт.

55

691236C91

TAPPET

- bushing, pin and ring

6шт.

57

1819008C1

GASKET

- fuel supply pump (Replaces gasket 1802931C1)

1шт.

58

492-11006

LOCK WASHER,#6

Washer, Lock, (Replaces washer 933987R1) #6

3шт.

59

825-1406

NUT,M6, Cl 8

WASHER - supply pump stud, hex, 6 mm - 1 (Replaces washer 933988R1)

3шт.

60

1806278C1

SPACER

- camshaft

3шт.

61

691270C1

PLUG

- camshaft

3шт.

62

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug, Port closure (Replaces washer 933222R1) M18 x 24 x 1.5

1шт.

63

691271C1

PLUG

- port closure

1шт.

64

1806504C1

GASKET

- bottom cover

1шт.

65

1806416C1

COVER ASSY

COVER - housing bottom

1шт.

66

691268C1

WASHER

- lock, cover screw

6шт.

67

1806919C1

SCREW,Torx, M6 x 10mm

- bottom cover

6шт.

68

1806288C1

FITTING

HOLDER - deliver valve

6шт.

69

3079241R1

WASHER

- valve spring

6шт.

70

3132382R1

SPRING

- delivery valve

6шт.

71

1806833C91

LOCK VALVE

VALVE ASSEMBLY - delivery, Includes: Ref. 71A

6шт.

71a

1806328C1

GASKET

- delivery valve sealing, cup shaped

6шт.

72

1806292C1

SEAL ASSY.

SEAL - delivery valve holder dust, no longer available

6шт.

73

1808709C1

PLUNGER

- includes barrel

6шт.

74

691235C1

SEAT

- lower spring

6шт.

75

1806290C1

O-RING

- impact cap

6шт.

76

691233C1

SLEEVE CYLINDER

SLEEVE - control

6шт.

77

691234C1

SEAT

- upper spring

6шт.

78

1806291C1

BUSHING

CAP - impact

6шт.

79

691232C1

RING

- cap retainer snap

6шт.

80

1809798C1

VALVE SPRING

SPRING - tappet roller (Replaces spring 691226C1)

6шт.

81

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

- vent screw, plug

1шт.

82

1808712C1

SCREW,Screw, Hex, M14 x 1.5 x 10mm

PLUG - screw

1шт.

83

625924C1

FITTING

- fuel outlet, used with check valve assembly 670889C91

1шт.

1809795C91

LOCK VALVE

VALVE ASSEMBLY - check, overflow, no longer available as a unit, order components (Replaces valve assembly 670889C91), Includes: Ref. 85 - 88

1шт.

85

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

86

933610R1

SEALING RING,M14 x 18 x 1.8

Banjo fitting M14 x 18 x 1.8

1шт.

87

1809797C1

FITTING

- fuel tube, banjo

1шт.

88

1809796C1

VALVE

- overflow

1шт.

89

444944

PLUG

- hex, 3/4 inch, for timing hole, not illustrated

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

Adapter Stud M10, Cl 10

4шт.

Выбрано товаров: 129
