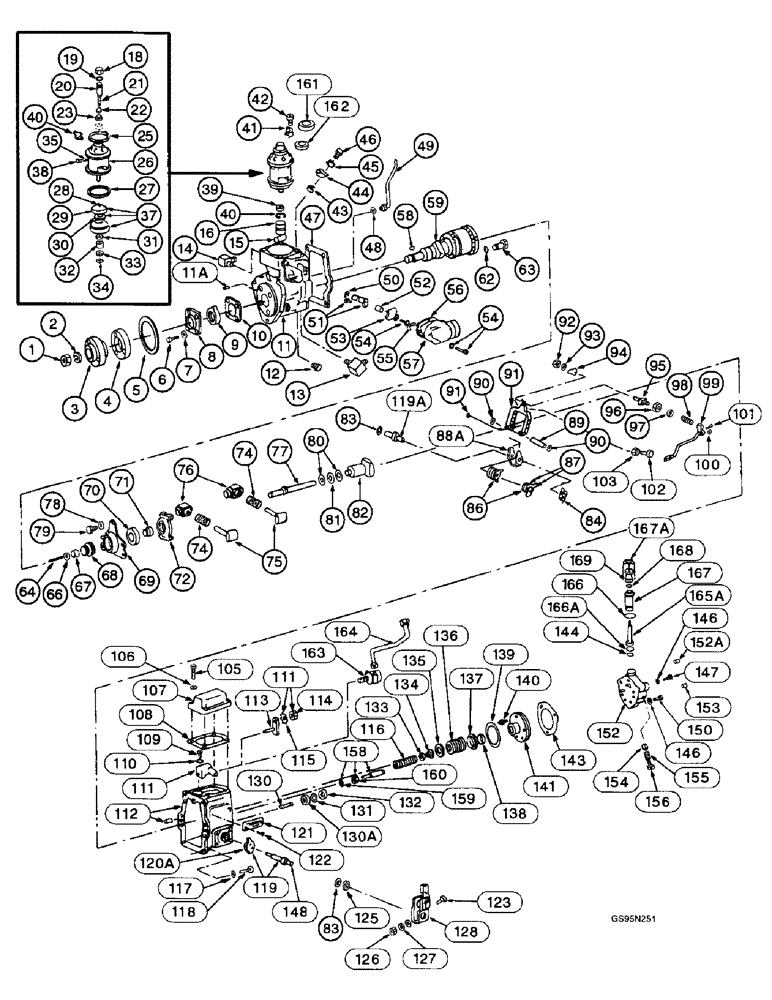

Запчасти Case IH DTI-466B (9E-056) - FUEL INJECTION PUMP, 4366, 4386, 3588, 3788, 6588 AND 6788 TRACTORS

749025C91

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured for pump assembly 681242C91, used with 4366 tractors

1шт.

1934105C1

CORE-INJECTION PUMP

Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

681242C91

PUMP ASSEMBLY - fuel injection, new, used with 4366 tractors, no longer available, Includes: Ref. 1 - 171

1шт.

On orders for injection pumps, also furnish one fuel return elbow 217-21 and fuel return orifice 687426C1.

1шт.

749739C91

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured for pump assembly 687144C91, used with 4386 tractors with engine serial numbers, Serial Range: prior-77300

1шт.

749739C91C

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

1934105C1

CORE-INJECTION PUMP

Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

687144C91

PUMP ASSEMBLY - fuel injection, new, used with 4386 tractors with engine serial numbers prior to 77300, Includes: Ref. 1 - 171

1шт.

On orders for injection pumps, also furnish one fuel return elbow 217-21 and fuel return orifice 687426C1.

1шт.

735006C91

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured for pump assembly 691026C91, used with 4386 tractors with engine serial number 77300 and after

1шт.

1934077C1

CORE-INJECTION PUMP

Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

691026C91

PUMP ASSEMBLY - fuel injection, new, used with 4386 tractors with engine serial number 73000 and after, Includes: Ref. 1 - 171

1шт.

On orders for injection pumps, also furnish one fuel return elbow 217-21 and fuel return orifice 687426C1.

1шт.

735027C91

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured for pump assembly 691057C93, used with 3588 and 6588 tractors

1шт.

1934081C1

CORE-INJECTION PUMP

Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

On orders for injection pumps, also furnish one fuel return elbow 217-21 and fuel return orifice 687426C1.

1шт.

691057C93

PUMP ASSEMBLY - fuel injection, new, used with 3588 and 6588 tractors, Includes: Ref. 1 - 171

1шт.

On orders for injection pumps, also furnish one fuel return elbow 217-21 and fuel return orifice 687426C1.

1шт.

735070C91

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured for pump assembly 691019C92, used with 3788 and 6788 tractors

1шт.

1934081C1

CORE-INJECTION PUMP

Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

691019C92

PUMP

ASSEMBLY - fuel injection, new, used with 3788 and 6788 tractors, Includes: Ref. 1 - 171

1шт.

1

129-551

SPECIAL NUT,9/16"-18, G8

- drive hub, no longer used

1шт.

2

674751C1

WASHER

- lock, drive hub nut

1шт.

3

676925C1

HUB

- drive

1шт.

4

676926C1

PLATE

- drive hub back

1шт.

5

674754C1

GASKET

GASKET - injection pump mounting

1шт.

6

674755C1

SCREW

- retainer plate

4шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Retainer plate (Replaces washer 131200) 1/4"

4шт.

8

674757C1

PLATE

- retainer, no longer available

1шт.

9

674758C1

WASHER

- thrust

1шт.

10

674761C1

SHIM

- retainer plate, 0.002 inch

1шт.

10

674759C1

SHIM

- retainer plate, 0.004 inch

1шт.

10

674760C1

SHIM

- retainer plate, 0.008 inch

1шт.

11

680442C2

HOUSING

ASSEMBLY - pump, Includes: Ref. 11A

1шт.

11a

681438C1

INDICATOR

POINTER - timing

1шт.

12

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 444655)

1шт.

13

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- fuel inlet, street, 90 degree x 1/4 inch PT x female PT

1шт.

14

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree x 1/4 inch PT x female PT, fuel return (Replaces valve 680313C1 by also ordering fuel return orifice 687426C1, also replaces elbow 444040)

1шт.

15

674769C1

ROLLER

- tappet

1шт.

16

674770C1

GUIDE

- tappet

1шт.

674839C94

HEAD

ASSEMBLY - hydraulic, Includes: Ref. 18 - 23

1шт.

18

674786C2

NUT,3/4" - 20

- cap, delivery valve

1шт.

684934C93

PACKAGE, REPAIR

KIT - delivery valve service, Includes: Ref. 19 - 23

1шт.

684935C93

PACKAGE

KIT - delivery valve service, Includes: Ref. 19 - 23

1шт.

19

674785C1

GASKET

- cap nut

1шт.

20

NSS

NOT SOLD SEPARAT

HOLDER - delivery valve, order kit

1шт.

21

674801C1

SPRING

- delivery valve

1шт.

22

674789C1

GUIDE

- delivery valve spring, 0.056 inch, yellow

1шт.

22

674790C1

GUIDE

- delivery valve spring, 0.066 inch, red

1шт.

22

674791C1

GUIDE

- delivery valve spring, 0.076 inch, blue

1шт.

22

674792C1

GUIDE

- delivery valve spring, 0.086 inch, black

1шт.

22

674793C1

GUIDE

- delivery valve spring, 0.096 inch, white

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE - delivery, order kit

1шт.

25

238-5144

O-RING,0.103" Thk x 2.487" ID, -144, Cl 5, 75 Duro

- charge pump, upper, 2-1/2 ID x 3/32 inch wide

1шт.

26

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head assembly 674839C94

1шт.

27

674772C1

GASKET

- O-ring, lower

1шт.

28

681426C1

GUIDE

- plunger drive

1шт.

29

681496C1

RETAINER

- face gear

1шт.

30

674798C2

THRUST WASHER

- thrust

1шт.

31

674804C1

WASHER

- plunger spring

1шт.

32

674802C1

SPRING

- plunger

1шт.

33

684310C1

SEAT

- lower spring

1шт.

34

674797C1

RING

- lower spring seat split

2шт.

35

211-1006

BALL,3/16" Dia

- sealing, chrome alloy steel, 3/16 inch, grade 24

1шт.

36

684399C1

FITTING

- discharge

6шт.

37

681439C91

GEAR

AND HUB ASSEMBLY - face, Includes: Gear, Hub and Thrust Washer Listed Below

1шт.

1802397C1

GEAR

- face

1шт.

1802399C1

HUB

- face gear

1шт.

674798C2

THRUST WASHER

- thrust

1шт.

38

674800C1

SCREW

- set, no longer available

1шт.

39

674949C2

VALVE

BUTTON - plunger letter A, 0.1071 inch

1шт.

39

674925C2

VALVE

BUTTON - plunger letter B, 0.1091 inch

1шт.

39

674926C2

VALVE

BUTTON - plunger letter C, 0.1110 inch

1шт.

39

674948C2

VALVE

BUTTON - plunger letter D, 0.1130 inch

1шт.

39

674775C2

VALVE

BUTTON - plunger letter E, 0.1150 inch

1шт.

39

674776C2

VALVE

BUTTON - plunger letter F, 0.1169 inch

1шт.

39

674777C2

VALVE

BUTTON - plunger letter G, 0.1189 inch

1шт.

39

674778C2

VALVE

BUTTON - plunger letter H, 0.1209 inch

1шт.

39

674779C2

VALVE

BUTTON - plunger letter J, 0.1228 inch

1шт.

39

674780C2

VALVE

BUTTON - plunger letter K, 0.1248 inch

1шт.

39

674781C2

VALVE

BUTTON - plunger letter L, 0.1268 inch

1шт.

39

674782C2

VALVE

BUTTON - plunger letter M, 0.1287 inch

1шт.

40

674783C1

RING

- retainer plunger button

1шт.

41

674805C1

CLAMP

- hydraulic head retainer

4шт.

42

684306C1

SCREW

O-RING - hydraulic head retainer

4шт.

43

674807C1

GASKET

- hydraulic head locating plate, used with pump housing 680442C1 only

1шт.

44

674808C1

PLATE

- hydraulic head locating, used with pump housing 680442C1 only

1шт.

45

257161R1

GASKET

- head locating plate screw, used with pump housing 680442C1 only

1шт.

46

674810C1

PLUG

SCREW - hydraulic head locating plate, used with pump housing 680442C1 only

1шт.

47

674811C1

GASKET

- pump housing to governor housing

1шт.

48

674812C1

GASKET

GASKET - excess fuel device tubing O-ring

1шт.

49

674813C1

TUBE

TUBING - excess fuel device

1шт.

50

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Control unit

1шт.

51

674704C91

LEVER

UNIT - control, standard

1шт.

52

674709C1

SPACER

- control unit plate

2шт.

53

674938C1

PLATE

- control unit, identification no. 1

1шт.

53

674939C1

PLATE

- control unit, identification no. 2

1шт.

53

674940C1

PLATE

- control unit, identification no. 3

1шт.

54

674710C1

SCREW

- control unit plate and cover, includes washer

6шт.

55

263213R1

ELECTRICAL WIRE

WIRE - lock, control unit plate

1шт.

56

681263C1

GASKET

- control unit cover

1шт.

57

674705C1

COVER

- control unit

1шт.

58

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Camshaft assembly #6, 5/32" x 5/8", HT

1шт.

59

687012C92

CAMSHAFT

ASSEMBLY - engine, parts list page 9E-105

1шт.

62

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Retaining screw (Replaces washer 131200) 1/4"

4шт.

63

674755C1

SCREW

- retaining

4шт.

64

674850C1

PIN

SPRING - lubrication, includes pin

1шт.

1802672C91

GOVERNOR

SHAFT ASSEMBLY - governor, includes weights, also order sleeve 1802673C1 (Replaces shaft assembly 674853C92), Includes: Ref. 66 - 77

1шт.

66

681444C1

NUT

- drive gear

1шт.

67

681445C1

CUP

- drive gear lock

1шт.

68

681446C1

GEAR

- drive

1шт.

69

681447C1

PLATE

- bearing support, no longer available

1шт.

70

681448C1

BALL BEARING

- ball

1шт.

71

1802353C1

BUSHING

- bearing

1шт.

72

1802349C1

WEIGHT

KIT - governor weight

1шт.

74

1802350C1

SPRING

- governor weight

1шт.

75

1802351C1

SEAT

- spring

1шт.

76

1802352C1

SUPPORT

- spring seat

1шт.

77

1802671C1

SHAFT

- governor drive (Replaces shaft 681459C1 by also ordering sleeve 1802673C1)

1шт.

78

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Support plate screw (Replaces washer 131200) 1/4"

3шт.

79

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

(Replaces screw 25481R1) Hex, 1/4"-20 x 3/4", G8, Full Thd

3шт.

80

674875C1

WASHER

- thrust, governor sleeve

2шт.

81

674876C91

THRUST BEARING

- thrust, governor sleeve

1шт.

82

1802673C1

SLEEVE

- governor (Replaces sleeve 674877C1)

1шт.

83

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Governor shaft short and operating shaft (Replaces O-ring 355966R1) -111, 70 Duro, .424" ID x .103" Thk

2шт.

84

674886C2

LEVER

- governor stop

1шт.

86

684047C91

SPRING

PLATE ASSEMBLY - governor operating shaft, Includes: Ref. 86A & 86B

1шт.

86a

1802449C1

PLATE

- spring, not illustrated

1шт.

86b

1802448C1

SPRING

- operating lever, not illustrated

1шт.

87

674885C1

SCREW

- set, spring plate

2шт.

674887C91

LEVER

AND ROD ASSEMBLY - fulcrum, used with 4366, 3588, 3788, 6588 and 6788 tractors, no longer available, Includes: Ref. 88A - 101

1шт.

684317C91

LEVER

AND ROD ASSEMBLY - fulcrum, used with 4386 tractors, Includes: Ref. 88A - 101

1шт.

88a

674882C1

BRACKET

- fulcrum, no longer available

1шт.

89

674891C1

PIN

- fulcrum lever

1шт.

90

674892C1

RING

- pin retaining

2шт.

91

681461C91

LEVER

ASSEMBLY - fulcrum, Includes: Ref. 91A

1шт.

91a

1802427C1

PIN

- pivot, not illustrated

2шт.

92

143415

NUT,1/4"-20, G5, Hvy

- cam

1шт.

93

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Cam (Replaces washer 131200) 1/4"

1шт.

94

62270D

CAM

- torque

1шт.

95

681464C1

SCREW

- square head

1шт.

96

131-63

LOCK NUT,1/4"-28, G8

NUT - light hex, self-locking, 1/4 inch NF, adjusting spring

1шт.

97

681466C1

WASHER

- adjusting nut

1шт.

98

681467C1

SPRING

- adjusting, no longer available

1шт.

99

681468C1

ROD

- control, used with pump assembly 749025C91

1шт.

99

684685C1

ROD

- control, used with pump assemblies 687144C91, 749739C91 and 691019C91

1шт.

100

681469C1

WASHER

- control rod

1шт.

101

681470C1

PIN

- cotter

1шт.

102

674902C1

SCREW

- droop

1шт.

103

131-63

LOCK NUT,1/4"-28, G8

NUT - light hex, self-locking, 1/4 inch NF

1шт.

105

425-114

NUT,1/4"-28, G5

Cover mounting, Used with 4366, 3588 and 6588 tractors (Replaces nut 691001C1) 1/4"-28, G5

4шт.

105

70744R1

SCREW

- cover mounting, drilled head, used with 4386 tractors

4шт.

105

674924C1

SCREW

- cover mounting, drilled head, used with 3788 and 6788 tractors

4шт.

106

67870D

GASKET

- cover screw

4шт.

107

674921C1

COVER

ASSEMBLY - governor top, used with 4366, 3588, 3788, 6588 and 6788 tractors

1шт.

107

735313C91

REMAN-ANEROID

Cover Assembly - aneroid, remanufactured for cover 684683C91, component parts do not apply to the remanufactured assembly, no longer available

1шт.

107

1934183C1

CORE-ANEROID

Return Part Number - use this part number to return core for credit when using remanufactured assembly

1шт.

107

684683C91

COVER

ASSEMBLY - governor top and aneroid, Includes: Ref. 107A - 107D

1шт.

107a

1802320C1

COVER - governor housing (Replaces cover 687446C1), not illustrated

1шт.

107b

687447C1

DIAPHRAGM

- aneroid, not illustrated

1шт.

107c

131970

SCREW,Sl Fil Hd, #8 - 32 x 1/2"

- machine, fillister head, No. 8 x 1/2 inch, no longer used, not illustrated

4шт.

107d

492-11008

LOCK WASHER,#8

Washer, Lock, , Used with 4386 tractors, not illustrated #8

4шт.

108

681264C1

GASKET

- governor cover top, used with 4366, 3588, 3788, 6588 and 6788 tractors, no longer available, order gasket 684684C1 below

1шт.

108

684684C1

GASKET

- governor cover top, used with 4386 tractors

1шт.

109

674919C1

SCREW

- fuel device mounting, no longer available

2шт.

109

684330C1

SCREW

- fuel device mounting, used with 4386 tractors

2шт.

110

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fuel device mounting screw 1/4"

2шт.

111

735303C91

REMAN-ANEROID

Device Assembly - excess fuel, remanufactured for 674915C92, component parts do not apply to the remanufactured assembly, no longer available

1шт.

111

1934169C1

CORE-ANEROID

Return Part Number - use this part number to return core for credit when using a remanufactured assembly

1шт.

111

735304C91

REMAN-ANEROID

Device Assembly - excess fuel, remanufactured for 674915C92, component parts do not apply to the remanufactured assembly, no longer available

1шт.

111

1934171C1

CORE-ANEROID

Return Part Number - use this part number to return core for credit when using a remanufactured assembly

1шт.

111

674915C92

ANEROID PUMP

DEVICE ASSEMBLY - excess fuel, new, used with 4366, 3588, 3788, 6588 and 6788 tractors, Includes: Ref. 112 - 114

1шт.

111

735317C91

REMAN-ANEROID

Device Assembly - excess fuel, remanufactured for 691150C91, component parts do not apply to the remanufactured assembly

1шт.

111

1934191C1

CORE-ANEROID

Return Part Number - use this part number to return core for credit when using a remanufactured assembly, no longer used

1шт.

111

691150C91

GOVERNOR

DEVICE ASSEMBLY - excess fuel with aneroid, new, used with 4386 tractors (Replaces device assemblies 687086C91 and 691143C91), Includes: Ref. 112 - 114

1шт.

112

674903C91

HOUSING

ASSEMBLY - governor, Includes: Ref. 112A

1шт.

112a

1802447C1

PIN

- dowel, no longer used, not illustrated

2шт.

113

674917C1

WASHER

- tab

1шт.

114

115728

NUT

- stop plate, no longer used

1шт.

115

691141C1

PLATE

- stop, 4366 and 4386 tractors (Replaces plate 674916C1)

1шт.

115

687118C1

PLATE

- stop, used with 3588, 3788, 3588 and 6788 tractors

1шт.

116

681415C1

SPRING

- governor inner, 140 pounds/inch

1шт.

116

681413C1

SPRING

- governor inner, 120 pounds/inch, used with all machines except 3788 and 6788 tractors

1шт.

116

681414C1

SPRING

- governor inner, 3788 and 6788 tractors, no longer available

1шт.

117

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Governor housing screw 1/4"

6шт.

118

674906C1

SCREW

- governor housing to pump housing

6шт.

119

681471C91

SHAFT

ASSEMBLY - governor operating, Includes: Ref. 119 - 120

1шт.

119

1802444C1

SHAFT

- governor short, no longer available

1шт.

120

1802445C1

SHAFT

- governor operating, no longer available

1шт.

120

680400C1

SPRING

- idle return

1шт.

121

684323C2

PRODUCT GRAPHIC

NAMEPLATE - governor housing

1шт.

122

125622

SCREW,Type U Drive, Rnd Hd, #0 x 0.188"

- nameplate drive

2шт.

123

181069

SCREW,Hex, 1/4" x 1 1/2"

- operating lever, no longer used

1шт.

125

674909C1

WASHER

- operating shaft

1шт.

126

118643

NUT - lever screw, no longer used

1шт.

127

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Lever screw 1/4"

1шт.

128

557109R1

WASHER

- flat, lever screw, no longer used

1шт.

687108C1

SPACER

- operating lever

1шт.

129

674908C92

LEVER

ASSEMBLY - operating, Includes: Ref. 129A

1шт.

129a

687108C1

SPACER

- operating lever, not illustrated

1шт.

130

684282C91

SCREW

ASSEMBLY - high idle, Includes: Set Screw & Ref. 130 - 132

1шт.

1802438C1

SET SCREW,Sl Hdls, 1/4" - 28 x 2", Oval Pt

- set

1шт.

130

425-114

NUT,1/4"-28, G5

High idle screw (Replaces nut 691001C1) 1/4"-28, G5

1шт.

131

67870D

GASKET

- high idle screw

1шт.

132

1802437C1

NUT

- cap, high idle screw

1шт.

133

62637D

SPACER

- governor spring inner, 0.020 inch

1шт.

133

62638D

SHIM

SPACER - governor spring inner, 0.042 inch

1шт.

133

62639D

SHIM

SPACER - governor spring inner, 0.058 inch

1шт.

133

62640D

SHIM

SPACER - governor spring inner, 0.083 inch

1шт.

133

674934C1

SPACER

- governor spring inner, 0.177 inch

1шт.

133

674935C1

SPACER

- governor spring inner, 0.276 inch

1шт.

133

674936C1

SPACER

- governor spring inner, 0.010 inch

1шт.

134

674937C1

SEAT

- governor spring inner

1шт.

135

62641D

SPACER

- governor spring outer, 0.020 inch

1шт.

135

62642D

SHIM

SPACER - governor spring outer, 0.042 inch

1шт.

135

62643D

SHIM

SPACER - governor spring outer, 0.058 inch

1шт.

135

62644D

SHIM

SPACER - governor spring outer, 0.083 inch

1шт.

135

674942C1

SPACER

- governor spring outer, 0.156 inch

1шт.

135

674943C1

SPACER

- governor spring outer, 0.030 inch

1шт.

135

674944C1

SPACER

- governor spring outer, 0.010 inch

1шт.

136

674945C1

SPRING

- governor outer

1шт.

137

674946C1

SEAT

- governor spring outer

1шт.

138

681292C1

SEAL

- governor shaft

1шт.

680312C92

PUMP, FUEL INJECTION

PUMP ASSEMBLY - supply, Includes: Ref. 139 - 144

1шт.

139

681293C1

GASKET

GASKET - O-ring

1шт.

140

1802431C1

SCREW,Pozidriv Fil Hd, #10 - 24 x 0.86", Gr 8, w/ LW

- insert

5шт.

141

1802428C91

INSERT

- supply pump

1шт.

143

681294C1

GASKET

- supply pump

1шт.

144

681298C1

GASKET

- hand primer

1шт.

146

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Pump mounting screw (Replaces washer 131200) 1/4"

3шт.

147

181073

SCREW,Hex, 1/4" x 2"

- supply pump mounting long, no longer used

1шт.

150

62204D

BOLT,Eye, M12 x 125mm

SCREW - pump mounting, drilled head

2шт.

152

1802429C91

COVER

ASSEMBLY - supply pump, Includes: Ref. 152 - 156

1шт.

152

1802432C1

VALVE

- check, at upper part of cover

2шт.

153

1802433C1

VALVE

- check, at lower part of cover

1шт.

154

674972C1

VALVE

- regulating

1шт.

155

680441C1

SPRING

- regulating valve

1шт.

156

674974C1

SCREW

- spring retaining

1шт.

158

681291C93

SCREW

- low idle capsule

1шт.

100-3321

SNAP RING,#X21, .185" Dia, E-Type

Ring, Retaining, , Low idle screw #X21, .185" Dia, E-Type

1шт.

159

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

160

674878C1

NUT

- low idle screw

1шт.

161

684307C1

WASHER

- retaining, upper hydraulic head

4шт.

162

684308C1

WASHER

- retaining, lower hydraulic head

4шт.

163

691150C91

GOVERNOR

ANEROID ASSEMBLY - excessive fuel, used with pump assemblies 687144C91 and 749739C91 only, Includes: Ref. 163A - 163G

1шт.

163a

425-114

NUT,1/4"-28, G5

Stop plate (Replaces nut 691001C1), Not illustrated 1/4"-28, G5

1шт.

163b

674917C1

WASHER

- tab, not illustrated

1шт.

163c

1802684C1

SHIM

- aneroid, 0.004 inch thick, not illustrated

1шт.

163d

1802685C1

SHIM

- aneroid, 0.009 inch thick, not illustrated

1шт.

163e

1802686C1

SHIM

- aneroid, 0.001 inch thick, not illustrated

1шт.

163f

1802687C1

SHIM

- aneroid, 0.023 inch thick, not illustrated

1шт.

163g

1802688C1

SHIM

- aneroid, 0.047 inch thick, not illustrated

1шт.

164

687061C91

TUBE

ASSEMBLY - aneroid, used with pump assemblies 687144C91 and 749739C91 only, no longer available

1шт.

319615R1

ELBOW

- male, brass, 1/8 inch x 90 degree

1шт.

680391C91

PUMP

PRIMER ASSEMBLY - hand, Includes: Ref. 165 - 169

1шт.

165

1802436C1

PLUNGER

- hand primer

1шт.

166

NSS

NOT SOLD SEPARAT

FLANGE - bail, order primer assembly 680391C91

1шт.

166

1802465C1

GASKET

- plunger, square ring

1шт.

167

1802434C1

CYLINDER

BARREL - hand primer

1шт.

167

681299C1

RETAINER

BAIL - hand primer

1шт.

168

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

(Replaces seal 352221R1) -113, 70 Duro, .549" ID x .103" Thk

1шт.

169

1802435C1

KNOB

- hand primer

1шт.

170

678026C1

ELECTRICAL WIRE

WIRE - lock, seal, not illustrated

1шт.

171

687459C1

ELECTRICAL WIRE

SEAL - lock wire (Replaces seal 678027C1), not illustrated

1шт.

684079C92

GASKET

KIT - injection pump gasket

1шт.
