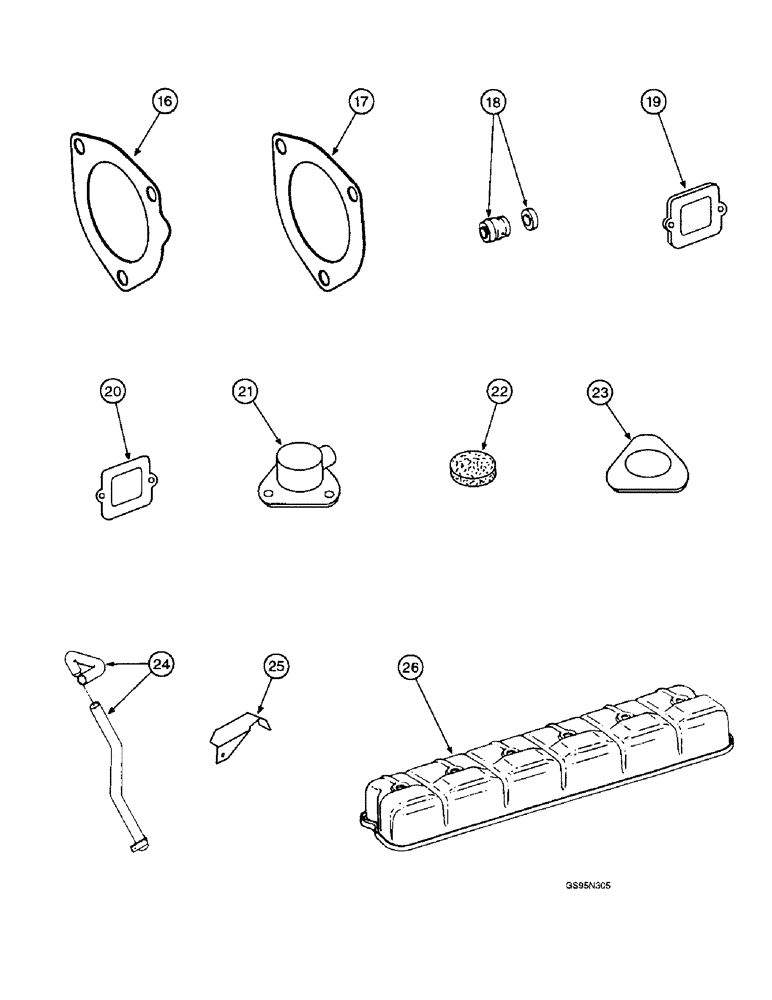

Запчасти Case IH DTI-466B (9E-042) - SERVICE KITS

684079C92

GASKET

KIT - injection pump gasket, Includes: Parts Listed Below

1шт.

67870D

GASKET

- screw mounting, governor top cover and high idle

5шт.

257161R1

GASKET

- plate screw, hydraulic head locating

1шт.

674807C1

GASKET

- plate, hydraulic head locating

1шт.

674811C1

GASKET

- pump housing to governor housing

1шт.

681263C1

GASKET

- cover, control unit

1шт.

684684C1

GASKET

- cover, governor top (Replaces gasket 681264C1)

1шт.

681292C1

SEAL

- governor shaft seal

1шт.

681298C1

GASKET

- hand primer

1шт.

16

681294C1

GASKET

- supply pump

1шт.

17

681293C1

GASKET

GASKET - supply pump

1шт.

674754C1

GASKET

GASKET - injection pump mounting

1шт.

674812C1

GASKET

GASKET - excess fuel device tube

1шт.

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Governor operator shaft (Replaces O-ring 355966R1) -111, 70 Duro, .424" ID x .103" Thk

2шт.

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Control unit (Replaces O-ring 355967R1)

1шт.

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Low idle screw

1шт.

18

687161C92

KIT

- water pump seal

1шт.

687069C91

GASKET KIT

KIT - intercooler gasket, used with 4386, 5488, 7288 and 7488 tractors, no longer available, Includes: Parts Listed Below

1шт.

1342839C1

MANIFOLD GASKET

- intake manifold (Replaces gasket 682199C1)

1шт.

686142C2

GASKET

- cover, intercooler cover

1шт.

686145C2

GASKET

- intercooler flange

2шт.

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(Replaces O-ring 350429R1) -114, 70 Duro, .612" ID x .103" Thk

2шт.

1342838C1

GASKET

- intercooler air inlet elbow (Replaces gasket 686181C1)

1шт.

691109C94

VENT

KIT - crankcase ventilation conversion, used with 4366 and 4386 tractors, also order breather tube 690596C1, Includes: Parts Listed Below

1шт.

19

690166C1

COVER

- breather opening

1шт.

20

690231C3

GASKET

- breather cover

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

2шт.

21

690354C1

BODY

HOUSING - breather

1шт.

22

690233C1

FILTER, ELEMENT

ELEMENT - breather

1шт.

23

1342832C1

GASKET

- breather housing (Replaces gasket 673973C4)

1шт.

231-1435

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC (Replaces nut 25077R1)

3шт.

115308

WASHER,.344" x 11/16" x .065"

- flat, 11/32 x 11/16 x 3/64 inch

3шт.

690460C1

HOSE

Breather Tube

1шт.

24

690457C1

HOSE

TUBE - upper breather

1шт.

#24 long length(bottom piece) p/n 690594c1 csd

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

1шт.

392-11031

LOCK WASHER,5/16"

(Replaces washer 116120) 5/16"

1шт.

25

690458C1

SUPPORT

- breather tube

1шт.

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

(Replaces bolt 24840R1) Hex, 3/8"-16 x 1", G8, Full Thd

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 115093) 3/8"

1шт.

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

1шт.

26

690339C3

VALVE COVER

COVER - valve

1шт.
