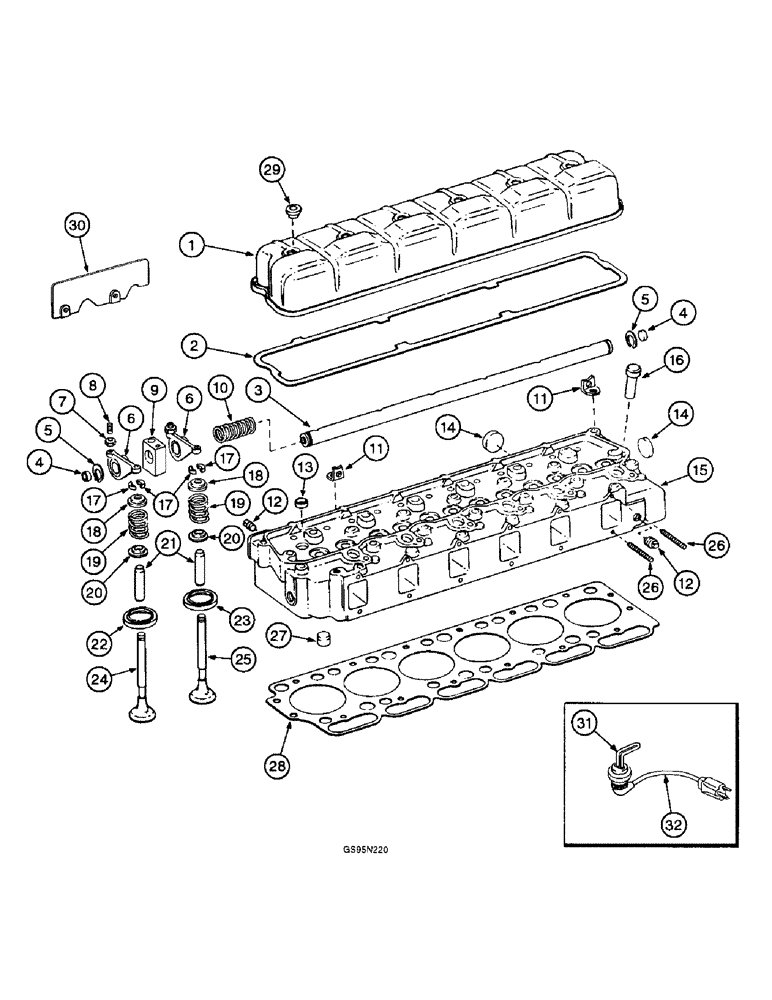

Запчасти Case IH DTI-466B (9E-032) - CYLINDER HEAD AND RELATED PARTS / ENGINE BLOCK HEATER

1

676088C5

COVER

- valve, used with 3488 and 4366 tractors, 4386 tractors with engine serial numbers prior to 38434, 1822 cotton pickers, 1640 combines

1шт.

On orders for valve cover 676088C2, order cover 676088C3 and valve cover gasket 1342828C1, Ref. 2 on page 9E-33. Also order gasket 1342421C2, Ref. 28, on page 9E-35.

1шт.

1

690339C3

VALVE COVER

COVER - valve, used with 4386 tractors with engine serial number 38434 and after, 3588, 3788, 6588, 6788, 7288 and 7488 tractors, 5288 and 5488 tractors, 1480 combines and 1470 hillside combines

1шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

five used with 1844 cotton pickers (Replaces bolt 25654R1) Hex, 5/16"-18 x 1 1/2", G8

6шт.

689324C1

STUD,Stud, 5/16" - 24 - 5/16" - 18 x 2.30"

BOLT - valve cover stud, used with 1844 cotton pickers and 5288, 5488, 7288 and 7488 tractors with turbocharger oil inlet tube clamp bracket

1шт.

2

1342828C1

GASKET

- valve cover (Replaces gasket 675109C2)

1шт.

3

675660C92

SHAFT

- rocker arm

1шт.

4

41-109

PLUG,Cup, 9/16"

- rocker arm shaft (Replaces plug 291171C1)

2шт.

5

100-1184

SNAP RING,#84, Ext

Ring, Snap, (Replaces ring 24577R1) #84, Ext

2шт.

6

682260C91

LEVER

ARM - valve rocker, engine serial numbers, Serial Range: prior-21849

12шт.

6

1820830C92

ROCKER

ARM - valve rocker, engines serial number 21849 and after (Replaces arm 688999C93)

12шт.

7

133093R1

NUT,Hex, 3/8" - 24

- adjusting screw

12шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

- rocker arm adjusting

12шт.

9

675547C2

BRACKET

- rocker arm shaft, no longer used, order bracket 1802461C3

6шт.

9

1802461C3

SUPPORT

BRACKET - rocker arm shaft, used at cylinder numbers 2 and 5, part of valve train improvement kit 1802464C92, see page 9E-31

2шт.

Use bracket 1802461C3 with .042 inch hole for all bracket positions.

1шт.

10

675105C1

SPRING

- rocker arm shaft

5шт.

11

675455C1

EYE

- lifting

2шт.

25830R1

BOLT,Hex, 9/16" - 12 x 1 1/4", Gr 8

SCREW - hex, 9/16 NC x 1-1/4 inch (Replaces screw 24648R1)

2шт.

1800901C91

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, used with 3488 tractors, 1844 cotton pickers and 1640 combines (Replaces assembly 684400C92), Includes: Ref. 12 - 27

1шт.

Use bracket 1802461C3 with .042 inch hole for all bracket positions.

1шт.

749605C92

REMAN-CYLINDER HEAD

Head Assembly - cylinder, remanufactured for 1800901C91, component parts on this page do not apply to the remanufactured assembly

1шт.

1928091C1

CORE-CYLINDER HEAD

Return Part Number - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

691876C91

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, used with 4366 tractors, 4386 tractors with engine serial numbers prior to 77300, no longer available, order remanufactured assembly 749635C92 (Replaces assembly 684401C92), Includes: Ref. 12 - 27

1шт.

749635C92

REMAN-CYLINDER HEAD

Head Assembly - cylinder, remanufactured for 691876C91, component parts on this page do not apply to the remanufactured assembly

1шт.

1928111C1

CORE-CYLINDER HEAD

Return Part Number - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

749854C92

REMAN-CYLINDER HEAD

Head Assembly - cylinder, remanufactured for 1816969C91, component parts on this page do not apply to the remanufactured assembly

1шт.

1928113C1

CORE-CYLINDER HEAD

Return Part Number - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

1816969C91

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, replaces head assemblies 687199C92 and 691877C91, Includes: Ref. 12 - 27

1шт.

Use bracket 1802461C3 with .042 inch hole for all bracket positions.

1шт.

Used with 4386 tractors with engine serial number 77300 and after, 3588, 3788, 5288, 5488, 6488, 6588, 6788, 7288 and 7488 tractors, 1480 combines, 1470 hillside combines and 1844 cotton pickers prior to JJC0002462.

1шт.

749605C92

REMAN-CYLINDER HEAD

Head Assembly - cylinder, remanufactured, component parts do not apply to the remanufactured assembly

1шт.

1928091C1

CORE-CYLINDER HEAD

Return Part Number - use this part number to return cylinder head for credit when using a remanufactured assembly

1шт.

1800901C91

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, Includes: Ref. 12 - 27

1шт.

Used with 3488 and 4366 tractors, 1640 combines prior to P.I.N. JJC0034705, 1670 combines prior to P.I.N. JJC0080540, 1680 combines prior to P.I.N. JJC0045689 and 1822 cotton pickers prior to P.I.N. JJC0012691

1шт.

12

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 445751)

2шт.

13

41-1618

PLUG,Cup, 1 1/8", Stainless

- cup, 1-1/8 inch (Replaces plug 21427R1)

6шт.

14

41-1624

PLUG,Cup, 1 1/2", Stainless

- cup, 1-1/2 inch (Replaces plug 601093C1)

6шт.

15

NSS

NOT SOLD SEPARAT

HEAD - cylinder, order head assembly

1шт.

16

675442C1

SLEEVE

- injector

6шт.

17

41339D

KEY

LOCK - valve spring retainer

24шт.

18

682221C92

VALVE

ROTATOR - valve, top (Replaces rotator 1811581C91)

12шт.

1342827C1

SHIELD

- oil (Replaces shield 681234C1)

1шт.

19

682064C1

SPRING

- valve

12шт.

20

675443C1

SEAT

- valve spring

12шт.

21

675439C1

GUIDE

- valve

12шт.

22

671559C1

INSERT

- intake valve seat, 0.002 inch oversize

6шт.

22

671561C1

INSERT

- intake valve seat, 0.015 inch oversize

6шт.

23

671563C2

INSERT

- exhaust valve seat, 0.002 inch oversize

6шт.

23

671565C1

INSERT

- exhaust valve seat, 0.015 inch oversize

6шт.

24

675046C4

VALVE,ENGINE,INLET,S

VALVE - intake

6шт.

25

676865C4

VALVE

- exhaust

6шт.

26

682840C1

STUD

- manifold, exhaust, no longer used, order bolt 1809774C1, see Figure 9E-178

12шт.

682987C1

NUT

- hex, 7/16 inch NC, exhaust manifold

12шт.

684034C1

WASHER,11.91mm ID x 21.34mm OD x 3.17mm Thk

- flat, 15/32 x 27/32 x 1/8 inch, exhaust manifold

12шт.

27

675045C1

DEFLECTOR

DIRECTOR - water, engine serial numbers, Serial Range: prior-131918

12шт.

27

691183C1

DEFLECTOR

DIRECTOR - water, engine serial number 131918 and after

12шт.

676119C1

BOLT

- cylinder head long

6шт.

676120C1

BOLT

- cylinder head short

20шт.

252018R1

WASHER,15.11mm ID x 25.4mm OD x 4.83mm Thk

- cylinder head bolt

26шт.

28

1342421C2

CYLINDER HEAD GASKET

- cylinder head (Replaces gaskets 676108C2 and 1806226C1)

1шт.

29

1342830C1

SEAL

GROMMET - valve cover (Replaces grommet 677692C1)

6шт.

30

1800248C1

SHIELD

- heat, used with 5288, 5488 tractors and 1844 cotton pickers

1шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 115093) 3/8"

2шт.

31

71151C91

HEATER

- engine block, 115 volt, used with 3488, 3588, 3788, 4366, 4386, 5288, 5488, 6588 and 6788 tractors; 1470 and 1480 combines

1шт.

32

A44813

CABLE EXTENSION

CABLE - engine block heater, 12 inch (305 mm) long (Replaces cable 71150C1)

1шт.

Ref #32: A44813 is 1ft. long. For 6ft. long cord, order J905113 or 196466A1. 4/12/02 CJK-TSG

1шт.
