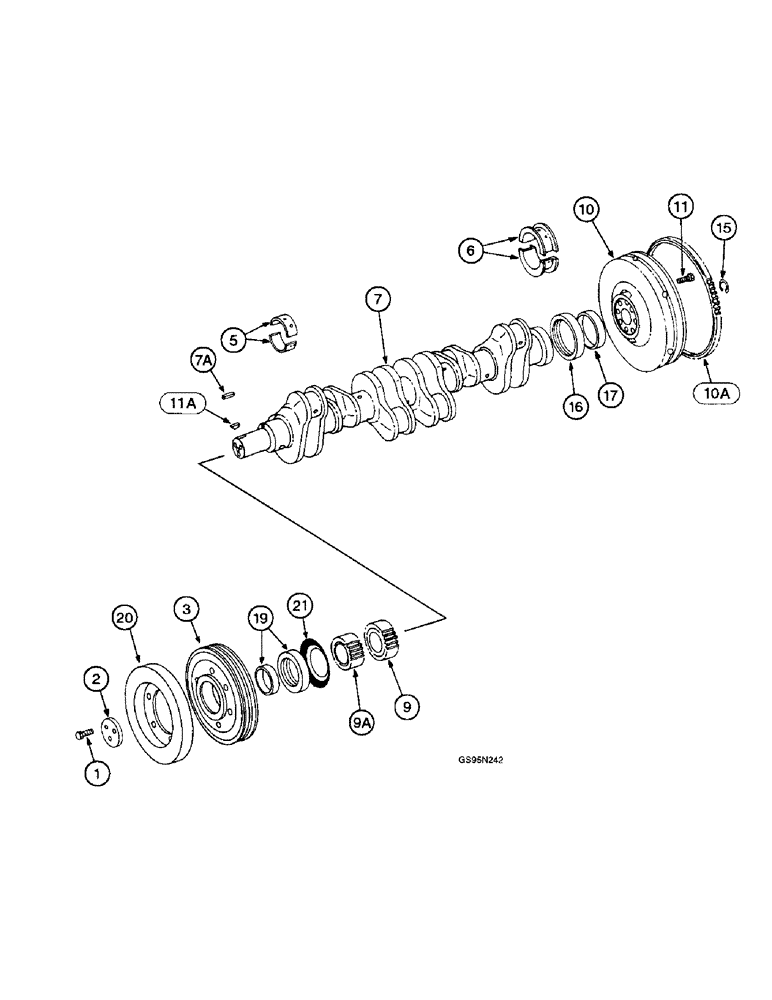

Запчасти Case IH DTI-466B (9E-020) - CRANKSHAFT, FLYWHEEL AND BEARINGS, 4366 AND 4386 TRACTORS

1

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

BOLT, (Replaces bolt 24862R1) Hex, 1/2"-13 x 1 1/2", G8, Full Thd

3шт.

2

675412C1

PLATE

PLATE - damper retaining

1шт.

3

683180C91

PULLEY

PULLEY - crankshaft

1шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, (Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

6шт.

670278C1

WASHER

WASHER - flat, 3/8 inch, hardened, no longer used

6шт.

173639

SCREW

PIN - drive

1шт.

5

684570C93

CRANKSHAFT BEARING

BEARING - crankshaft main, two halves, standard, front and intermediate, no longer available separately, order bearing kit 243649A1

6шт.

5

684573C93

BEARING SET

BEARING - crankshaft main, two halves, front and intermediate, 0.010 inch undersize, no longer available separately, order bearing kit 243650A1

6шт.

5

687391C3

BEARING SET

BEARING - crankshaft main, two halves, front and intermediate,0.020 inch undersize, no longer available separately, order bearing kit 243651A1

6шт.

5

684576C93

BEARING SET

BEARING - crankshaft main, two halves, front and intermediate, 0.030 inch undersize

6шт.

6

684579C93

CRANKSHAFT BEARING,116.33mm ID x 122.68mm OD x 45.14mm W

BEARING - crankshaft main, rear, two halves, standard

1шт.

6

684582C93

CRANKSHAFT BEARING

BEARING - crankshaft main, rear, two halves, 0.010 inch undersize

1шт.

6

687394C3

CRANKSHAFT BEARING

BEARING - crankshaft main, rear, two halves, 0.020 inch undersize

1шт.

6

684585C93

BEARING SET

BEARING - crankshaft main, rear, two halves, 0.030 inch undersize, no longer available separately, order kit 243652A1 for narrow bearings and kit 243648A1 for wide bearings

1шт.

7

179197A1

CRANKSHAFT

CRANKSHAFT - standard, with gear (Replaces crankshaft assembly 681319C93)

1шт.

7

681319C93

CRANKSHAFT

CRANKSHAFT ASSEMBLY - standard, no longer available, order crankshaft 179197A1 and bearings

1шт.

7

749656C92

REMAN-CRANKSHAFT

Crankshaft Assembly - standard, remanufactured for crankshaft assembly 681319C93, component parts on this page do not apply to the remanufactured assembly

1шт.

7

1928183C1

CORE-CRANKSHAFT

Return Part Number - use this part number to return core for credit when using a remanufactured assembly

1шт.

1808059C92

BEARING SET,77.74mm ID x 82.8mm OD x 32mm W

BEARING - connecting rod, standard, Includes: Ref. 7A

6шт.

7a

17135R1

LOCK PIN,5/32" x 5/16", Slotted

PIN, 5/32" x 5/16", Slotted

1шт.

9

675406C1

GEAR

GEAR - crankshaft, 32 tooth

1шт.

9a

675364C1

GEAR

SPLINE - oil pump drive, 41 tooth

1шт.

10

683187C92

FLYWHEEL

FLYWHEEL ASSEMBLY - crankshaft, Includes: Ref. 10A

1шт.

10a

1813752C1

GEAR

GEAR - ring 138 teeth (Replaces gear 61544H)

1шт.

11

25277R1

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 8

BOLT - hex, 1/2 NF x 1-5/8 inch, grade 8

8шт.

685902C1

WASHER

WASHER - hardened

8шт.

11a

691044C1

KEY

KEY - vibration damper, 5/16 x 1 inch (Replaces key 124554)

1шт.

15

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, (Replaces 456736R1) 2.062", Int, #206

1шт.

1809964C92

OIL SEAL

KIT - crankshaft, rear seal and wear sleeve (Replaces kits 678554C91 and 691631C91), Includes: Ref. 16 & 17

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil, order seal and wear sleeve kit 1809964C92

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear, order seal and wear sleeve kit 1809964C92

1шт.

19

690437C94

SEAL KIT

KIT - front seal and wear sleeve

1шт.

20

677781C91

DAMPER

DAMPER - viscous vibration

1шт.

21

687024C1

SEALING WASHER

WASHER - seal

1шт.
