Запчасти Case IH DTI-466B (9E-018) - CRANKCASE REAR MOUNTING PLATE

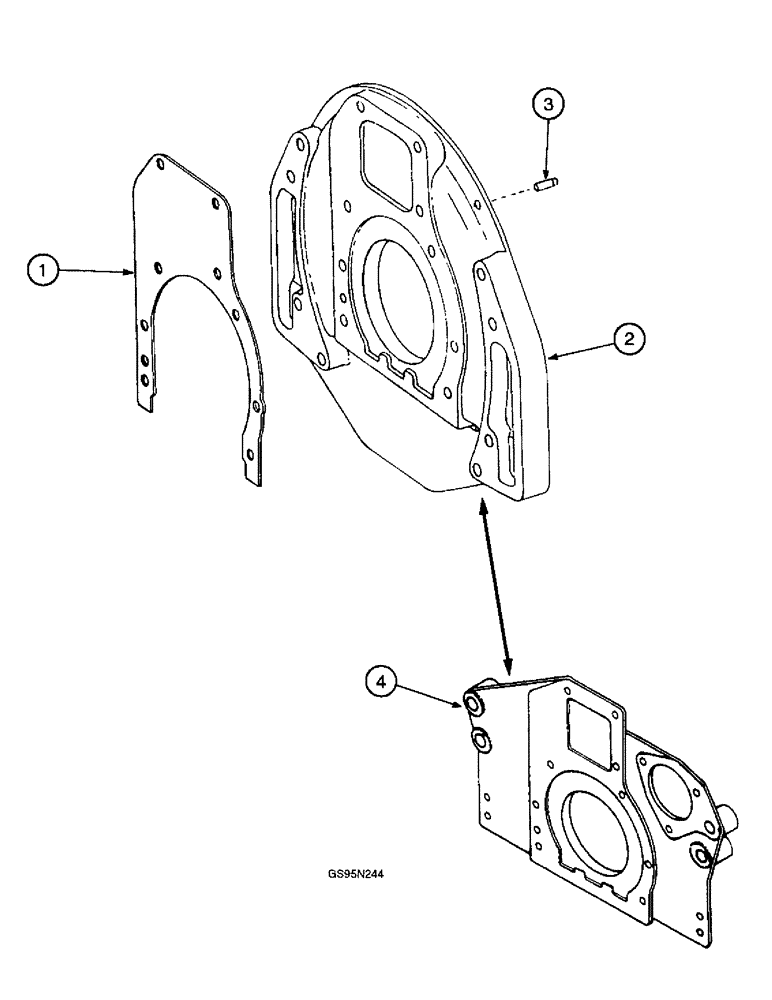

Схема запчастей Case IH DTI-466B - (9E-018) - CRANKCASE REAR MOUNTING PLATE
3
4
1
2

Артикул

Название

Примечание

Количество

1

682945C3

GASKET

- rear mounting plate

1шт.

2

671805C91

PLATE

- crankcase rear mounting, used with 3488, 3588, 3788, 6588 and 6788 tractors

1шт.

Dowel pins are not used with 3588, 3788, 6588 and 6788 tractors.

1шт.

2

683716C91

PLATE

- engine, crankcase rear mounting, used with 1480 combines, 1470 hillside combines

1шт.

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

(Replaces bolt 24863R1) Hex, 1/2"-13 x 1 3/4", G8

6шт.

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened (Replaces washer 26273R1) 17/32" x 1 1/16" x .134"

6шт.

2

678866C92

STRIPPER PACKAGE

KIT - rear mounted plate, used with 5288 and 5488 tractors, no longer available, order components

1шт.

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

232-4118

NUT,1/2"-13, GC

NUT, LOCK, (Replaces nut 9412230) 1/2"-13, GC

2шт.

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

4шт.

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 9 (Replaces bolt 30046R1)

2шт.

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Rear Mounting plate (Replaces washer 30177R1) M12 x 24.5 x 3, HT

2шт.

1800364C2

GASKET - rear mounting plate

1шт.

1800361C2

COVER - crankcase mounting plate

1шт.

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened (Replaces washer 26273R1) 17/32" x 1 1/16" x .134"

6шт.

3

375362R1

PIN,12.69mm OD x 34.8mm L

- dowel, 1/2 x 1-3/8 inch, rear mounting plate

2шт.

Dowel pins are not used with 3588, 3788, 6588 and 6788 tractors.

1шт.

4

1800782C2

LARGE PLATE

PLATE - crankcase rear mounting, used with 1822 and 1844 cotton pickers

1шт.

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened (Replaces washer 26273R1) 17/32" x 1 1/16" x .134"

6шт.

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

Выбрано товаров: 22
