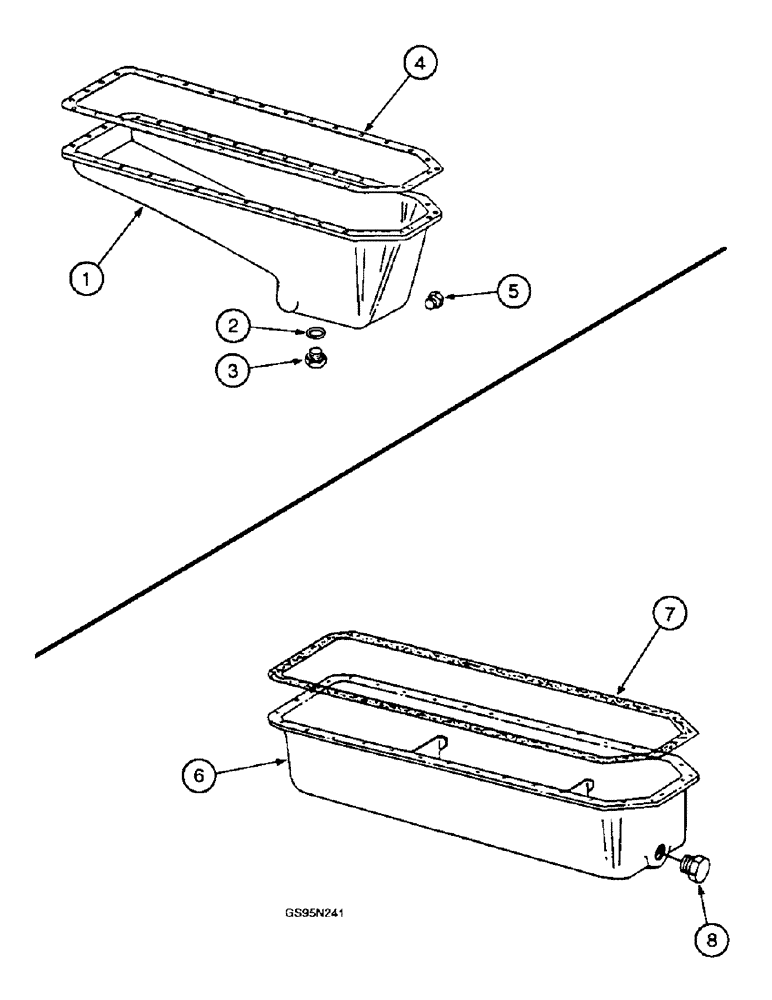

Запчасти Case IH DTI-466B (9E-016) - CRANKCASE OIL PAN, 4366 AND 4386 TRACTORS / 1480 COMBINES AND 1470 HILLSIDE COMBINES

1

689329C91

HOUSING

PAN ASSEMBLY - crankcase oil (Replaces oil pan 673877C92), 4366 and 4386 tractors

1шт.

2

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug, bottom, 4366 and 4386 tractors

1шт.

3

688067C1

PLUG

- oil pan drain, bottom, 4366 and 4386 tractors

1шт.

677490C1

SCREW

- oil pan, hex, 5/16 NC x 15/16 inch, includes conical washer

34шт.

4

671827C4

OIL PAN GASKET SET

- oil pan, crankcase, 4366 and 4386 tractors

1шт.

5

217-424

PLUG,Hex Hd, 3/4" - 14 NPT

Crankcase oil pan side, used only with oil pan 673877C92 (Replaces plug 444836), 4366 and 4386 tractors Hex Hd, 3/4"-14

1шт.

5

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex, 3/4 inch PT, crankcase oil pan side, used only with oil pan assembly 689329C91 (Replaces plug 9409949), 4366 and 4386 tractors

1шт.

6

689481C91

PAN

- crankcase oil, 1480 combines and 1470 hillside combines

1шт.

677490C1

SCREW

- oil pan

34шт.

7

671827C4

OIL PAN GASKET SET

- oil pan, 1480 combines and 1470 hillside combines

1шт.

8

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

(Replaces plug 444630), 1480 combines and 1470 hillside combines Hex Hd, 1/2"-14

1шт.
