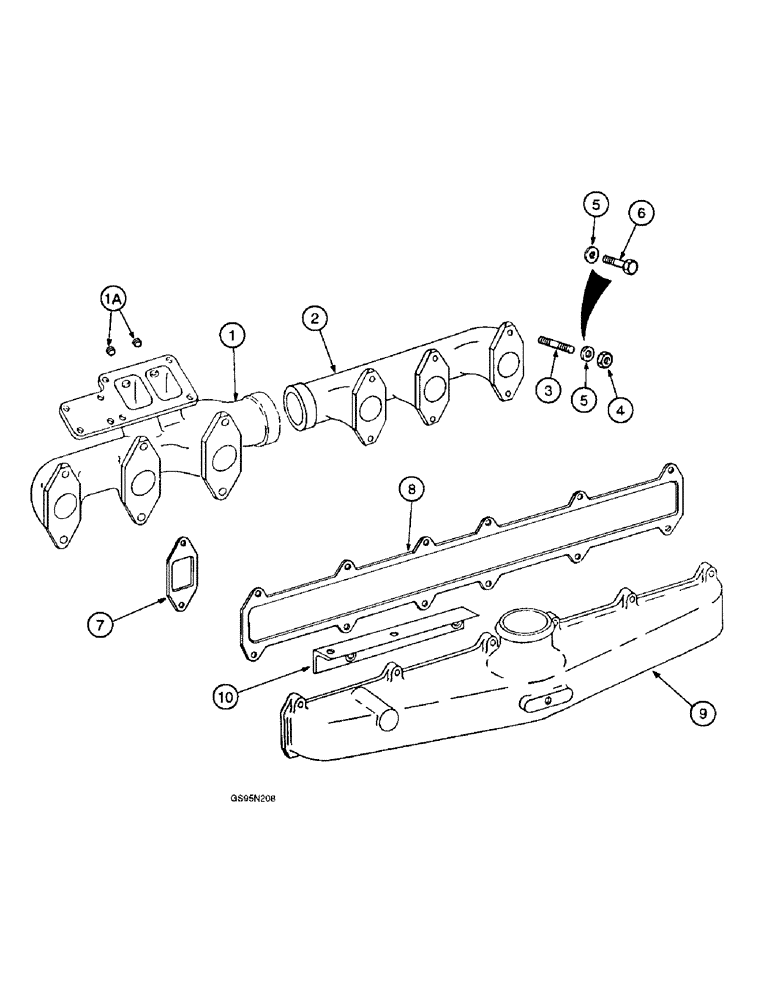

Запчасти Case IH DT-436 (9D-104) - INTAKE AND EXHAUST MANIFOLD

1

683564C91

MANIFOLD

- exhaust front, used with all machines except 986, hydro 100 hydro 186, 3688 and 5088 tractors and 1440 combines, no longer used, order manifold 683542C1

1шт.

1

683562C1

MANIFOLD

- exhaust front (Replaces manifold 6835564C91)

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

2шт.

1

675778C2

MANIFOLD

- exhaust front, used with 986, hydro 100, hydro 186 and 3688 tractors and 1440 combines

1шт.

1

691595C91

MANIFOLD

- exhaust front, used with 5088 tractors

1шт.

1a

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT (Replaces plug 444614)

2шт.

2

675779C3

MANIFOLD

- exhaust rear

1шт.

3

682840C1

STUD

- exhaust manifold, no longer used, order bolt 1809774C1, item 6

12шт.

4

682987C1

NUT

- hex, 7/16 inch NC, used with stud 682840C1, item 3

12шт.

5

684034C1

WASHER,11.91mm ID x 21.34mm OD x 3.17mm Thk

- flat, 15/32 x 27/32 x 1/8 inch

12шт.

6

1809774C1

STUD,Hex, 7/16" - 14 x 1.50"

BOLT - hex prevailing torque, 7/16 NC x 1-1/2 inch

12шт.

7

1349062C1

MANIFOLD GASKET

- exhaust manifold (Replaces gasket 688928C1)

6шт.

8

1342839C1

MANIFOLD GASKET

- intake manifold (Replaces gasket 682199C1)

1шт.

9

675633C92

MANIFOLD

- intake, used with engines serial numbers prior to 123763 and all 3688 tractors and 1440 combines

1шт.

9

691161C91

MANIFOLD

- intake, used with engines serial number 123762 and after

1шт.

9

691935C91

MANIFOLD

- intake, used with 5088 tractors

1шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

310-1520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, grade 8 (Replaces bolt 26679R1)

12шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

12шт.

10

680586C2

SUPPORT

- ether start, not used on 1440, 1460 and 1480 combines

1шт.
