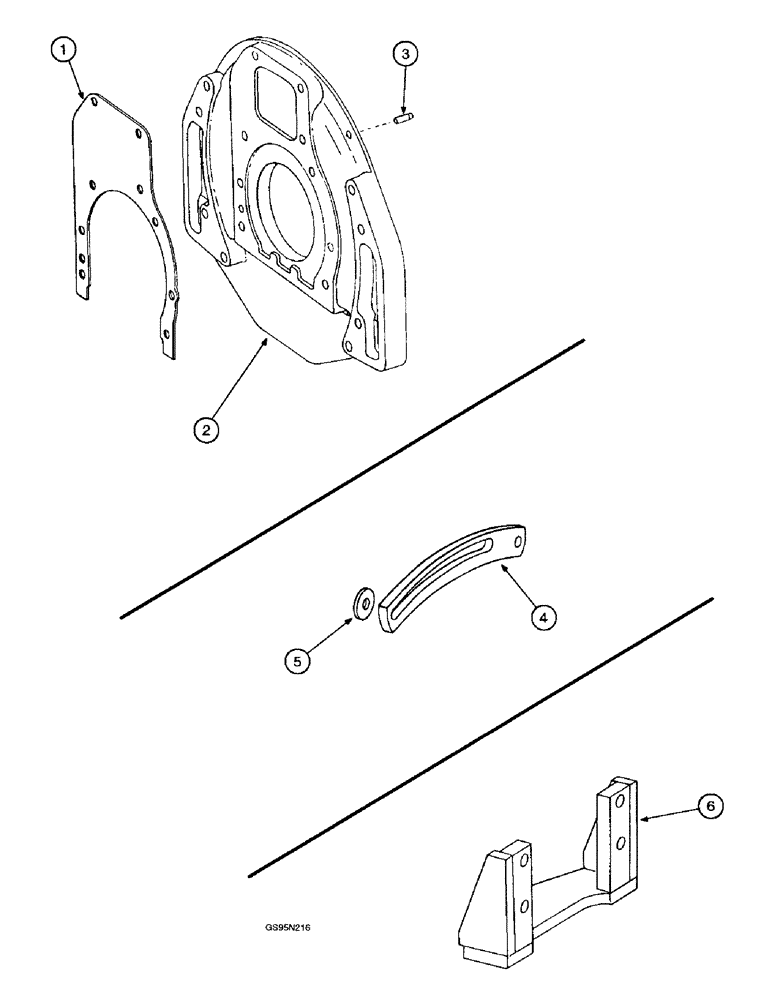

Запчасти Case IH DT-436 (9D-102) - CRANKCASE REAR MOUNTING PLATE / ALTERNATOR-GENERATOR MOUNTING / FRONT ENGINE MOUNT, 4166 & 4186

1

682945C3

GASKET

- rear mounting plate

1шт.

2

671805C91

PLATE

- crankcase rear mounting, used with all machines except 1440, 1460 and 1480 combines and 5088 tractors

1шт.

Dowel pins are not used with 3388 tractors.

1шт.

2

683716C91

PLATE

- engine, crankcase rear mounting, used with 1440, 1460 and 1480 combines

1шт.

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

(Replaces bolt 24863R1) Hex, 1/2"-13 x 1 3/4", G8

6шт.

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened (Replaces washer 26273R1) 17/32" x 1 1/16" x .134"

6шт.

2

678866C92

STRIPPER PACKAGE

KIT - rear mounting plate, used with 5088 tractors, Includes: Ref. 2A - 2F, no longer available, order components

1шт.

2a

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

Not illustrated Hex, 1/2"-13 x 2", G8

2шт.

2b

232-4118

NUT,1/2"-13, GC

NUT, LOCK, (Replaces nut 9412230), Not illustrated 1/2"-13, GC

2шт.

2c

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened, Not illustrated 17/32" x 1 1/16" x .134"

4шт.

2d

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12-1/75 x 50 mm, class 9 (Replaces bolt 30046R1), Not illustrated

2шт.

2e

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

(Replaces washer 30177R1), Not Illustrated M12 x 24.5 x 3, HT

2шт.

2f

NSS

NOT SOLD SEPARAT

PLATE - rear mounting, order kit 678866C92, not illustrated

1шт.

1800364C2

GASKET - rear mounting plate

1шт.

1800361C2

COVER - crankcase mounting plate

1шт.

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened (Replaces washer 26273R1) 17/32" x 1 1/16" x .134"

6шт.

3

375362R1

PIN,12.69mm OD x 34.8mm L

- dowel, 1/2 x 1-3/8 inch, rear mounting plate

2шт.

Dowel pins are not used with 3388 tractors.

1шт.

4

532418R1

BRACE

- alternator-generator

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

5

280185R1

SPACER

- alternator-generator brace, not used on 986, 1486, 1586 or hydro 186 tractors

1шт.

537326R1

BOLT

BOLT - hex, special, 5/16 NC x 1-1/2 inch

1шт.

120398

WASHER - flat, 11/32 x 11/16 x 3/64 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

6

681501C1

SUPPORT - front engine, no longer available, 4166 & 4186 tractors

1шт.

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.
