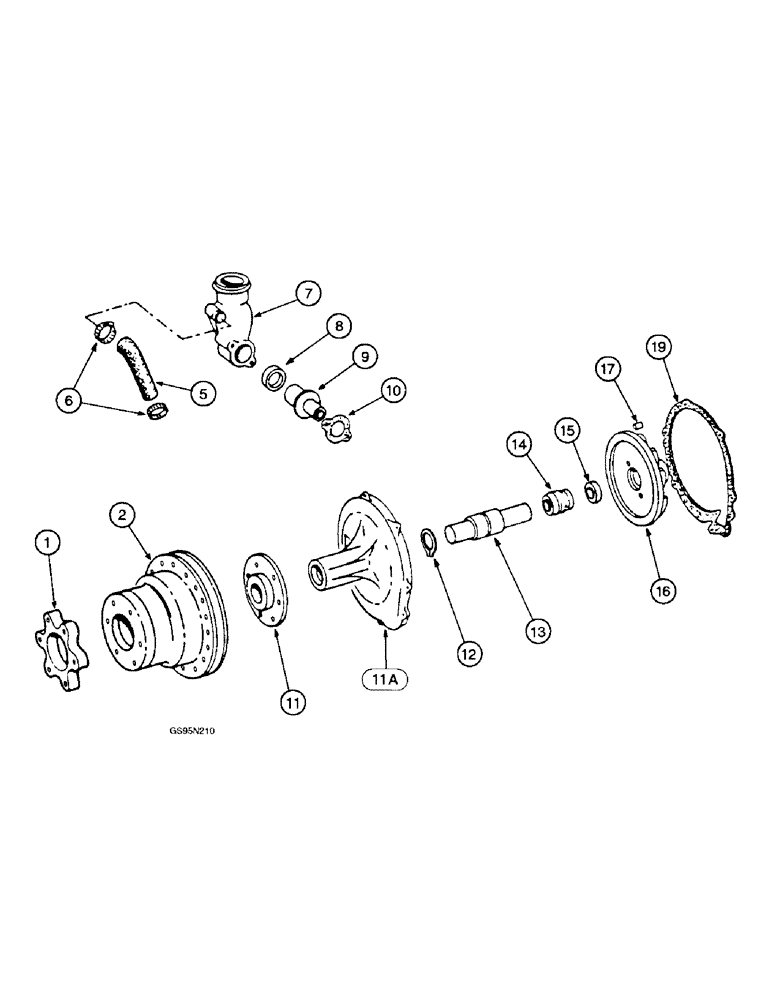

Запчасти Case IH DT-436 (9D-100) - THERMOSTAT AND WATER PUMP
№
Артикул
Название
Примечание
Количество
2
691562C1
PULLEY
PULLEY - fan, water pump, triple groove, used with all machines except 3688 and 5088 tractors (Replaces pulley 537071R1)
1шт.
WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk
WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened
3шт.
2
1800183C1
PULLEY
PULLEY - water pump, used with 3688 and 5088 tractors, no longer available, order pulley 180539C1 and spacer 487414R1
1шт.
326-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
BOLT, (Replaces bolt 24840R1) Hex, 3/8"-16 x 1", G8, Full Thd
4шт.
WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk
WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened
4шт.
326-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
BOLT, (Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd
4шт.
326-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
BOLT - hex, 3/8 NC x 1-3/4 inch, grade 8 (Replaces bolt 24842R1)
2шт.
326-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8
BOLT, (Replaces bolt 24844R1) Hex, 3/8"-16 x 3 1/2", G8
2шт.
WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk
WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened
8шт.
6
214-1420
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP, HOSE, , Adj., Thermostat by-pass housing #20, 0.81/1.75 Type F Worm
2шт.
221-667
DRAIN PLUG,Hex Soc, 1/2" NPT
PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 445751)
1шт.
217-436
PLUG,Hex Soc, 3/8" - 18 NPTF
PLUG - hex socket, 3/8 inch PT (Replaces plug 444660)
1шт.
326-648
BOLT,Hex, 3/8" - 16 x 3", Gr 8
BOLT, (Replaces bolt 275804R1) Hex, 3/8"-16 x 3", G8
1шт.
WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk
WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened
2шт.
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
BOLT, (Replaces bolt 277232R1) Hex, 3/8"-16 x 2 3/4", G8
1шт.
1801192C91
THERMOSTAT
KIT - thermostat, no longer available, order thermostat 684739C1 and seal 615175C91 below
1шт.
673162C94
PUMP, WATER
PUMP ASSEMBLY - water, new, used with all machines except hydro 100, 986, and 3688 tractors and 1440 combines (Replaces pump assembly 672644C93), Includes: Ref. 11 - 17
1шт.
749908C91
REMAN-WATER PUMP
Remanufactured PUMP ASSEMBLY - water, used with all machines except hydro 100, 986 and 3688 tractors and 1440 combines, component parts do not apply to the remanufactured assembly
1шт.
1928143C1
CORE-WATER PUMP
RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly
1шт.
673623C92
PUMP, WATER
PUMP ASSEMBLY - water, new, hydro 100 tractors, 1440 combines, 986 and 3688 tractors (Replaces pump assembly 677415C93), Includes: Ref. 11 - 17
1шт.
12
100-21187
SNAP RING,1.875", Int, #187
Ring, Snap, , replaces ring 272842R1 1.875", Int, #187
1шт.
13
627785C91
BEARING ASSY,47.63mm OD x 177.8mm L
SHAFT - pump, includes bearing
1шт.
687161C92
KIT
KIT - seal, water pump (Replaces kits 687366C91 and 701331C93), Includes: Ref. 14 & 15
1шт.
16
676320C1
IMPELLER
IMPELLER - water pump, used with all machines except hydro 100, 986, 3688 tractors and 1440 combines, no longer available, order kit 1810366C92
1шт.
16
677414C1
IMPELLER
IMPELLER - water pump, used with hydro 100, 1440 combines, 986 and 3688 tractors
1шт.
