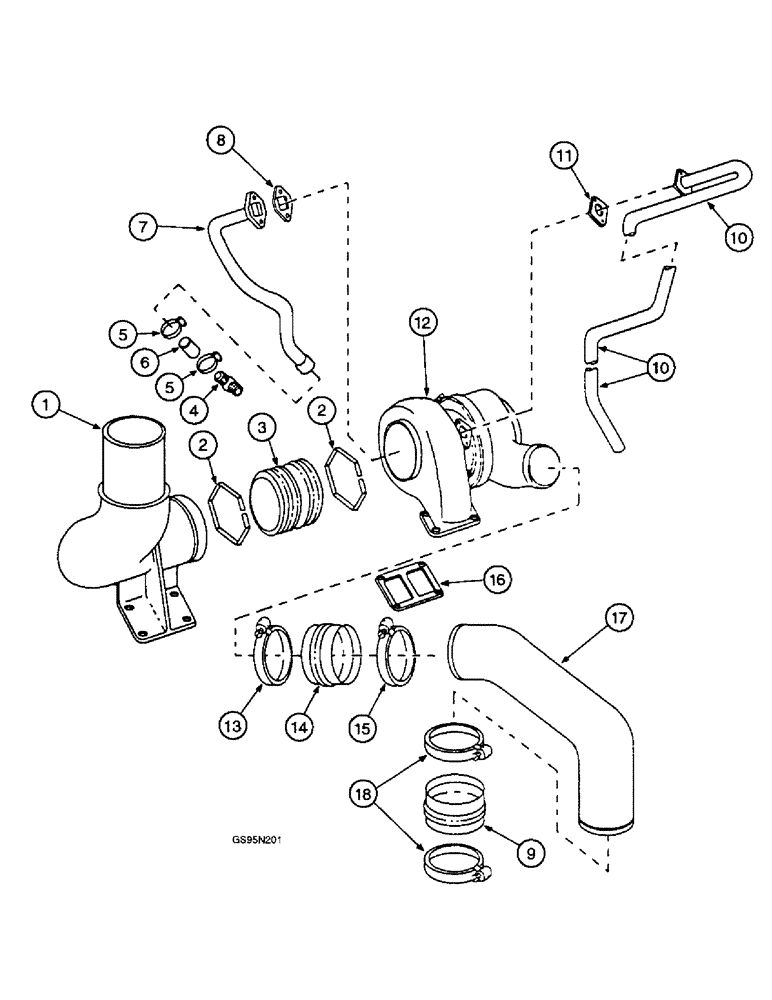

Запчасти Case IH DT-436 (9D-098) - TURBOCHARGER AND CONNECTIONS - ALL MACHINES EXCEPT 5088 TRACTORS

1

675316C3

ELBOW

- turbocharger exhaust, used with all machines except 1486, 1586, 3388 and 6388 tractors

1шт.

Ref#1 - For 1486, 1586, 3388 and 6388 tractors refer to desired model number tractor book air cleaner and connections section. CAM (db) 4-7-99

1шт.

329-106

NUT,3/8"-16, G8

(Replaces nut 25522R1) 3/8"-16, G8

4шт.

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

(Replaces bolt 24841R1) Hex, 3/8"-16 x 1 1/2", G8

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

2

702299C1

ASSEMBLY

SEAL - seal, all machines except 1486, 1586, 3388 and 6388 tractors

1шт.

3

675317C2

SLEEVE

- turbocharger exhaust, used with all machines except 1486, 1586, 3388 and 6388 tractors

1шт.

REF #3. SLEEVE FOR THE 1486 IS P/N 107594C1. THIS PER THE 1486 BOOK. BILLY A. CAM 10/31/01

1шт.

4

673622C1

ELBOW

- turbocharger oil drain

1шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Adj - Turbocharger oil drain (Replaces clamps 122316R91 and 995218R1) #12, 0.69/1.25 Type F Worm

2шт.

6

675859C2

HOSE,22.35mm ID x 66.04mm L

Turbocharger Oil Drain

1шт.

7

675781C2

TUBE

- turbocharger oil drain

1шт.

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

(Replaces bolt 24840R1) Hex, 3/8"-16 x 1", G8, Full Thd

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

8

1342835C1

GASKET

- turbocharger oil drain tube (Replaces gasket 687903C1)

1шт.

9

675724C2

HOSE,3.21" ID x 2.75", SAE J200

Turbocharger Air Outlet Pipe, Engine Serial Numbers Pior to 123763 3.21" ID x 2.75", SAE J200

1шт.

9

310385R2

INTAKE AIR HOSE,2.21" ID x 3.00", SAE J200

- Turbocharger Air Outlet Pipe, Engine serial number 123763 and after 2.21" ID x 3.00", SAE J200

1шт.

10

675783C94

TUBE,0.375" OD, 31" Length

ASSEMBLY - turbocharger oil inlet, Includes: Ref. 10A & 10B

1шт.

Used with 1466, 1566, 4166 tractors, 1486 tractors with engine serial numbers prior to 63706, 1586 tractors with engine serial numbers prior to 63695, 4186 tractors with engine serial numbers prior to 63722, 1460 combines with engine serial numbers prior to 63636

1шт.

10

690404C91

TUBE,0.375" OD

ASSEMBLY - turbocharger oil inlet, used with 1586 tractors with engine serial number 63695 and after 3388 and 6388 tractors, 4186 tractors with engine serial number 63722 and after, 1460 combines with engine serial number 63636 and after, Includes: R

1шт.

10

690423C91

TUBE,0.375" OD

ASSEMBLY - turbocharger oil inlet, used with 1486 tractors with engine serial number 63706 and after, Includes: Ref. 10A & 10B

1шт.

10a

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

1шт.

10b

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

2шт.

11

1342834C1

GASKET

- turbocharger oil inlet tube (Replaces gasket 253660R1)

1шт.

12

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, parts list Figures 9D-88, 9D-90, 9D-92 and 9D-94

1шт.

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, (Replaces nut 676524C1) 3/8"-16, GC

4шт.

113-2234

BOLT,Hex, 3/8" - 16 x 1-1/2", SST

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 22737R1)

4шт.

13

687456C1

CLAMP

- turbocharger air outlet pipe hose (Replaces clamp 681209C1)

1шт.

14

675723C2

HOSE,1.96" ID, 2.21" ID x 2.50", SAE J200

Turbocharger Air Outlet Pipe 1.96" ID, 2.21" ID x 2.50", SAE J200

1шт.

15

687456C1

CLAMP

- turbocharger air outlet pipe hose (Replaces clamp 681209C1)

2шт.

16

1342826C1

GASKET

- turbocharger (Replaces gasket 670073C1)

1шт.

17

676165C2

TUBE

PIPE - turbocharger air outlet, engine serial numbers prior to 123763, also order plug 217-504

1шт.

17

691178C91

PIPE

- turbocharger air outlet, engine serial number 123763 and after, also order plug 217-504

1шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

18

687457C1

CLAMP

- turbocharger air outlet pipe, engine serial numbers, Serial Range: prior-123763

2шт.

18

687456C1

CLAMP

- turbocharger air outlet pipe, engine serial number 123763 and after

2шт.
