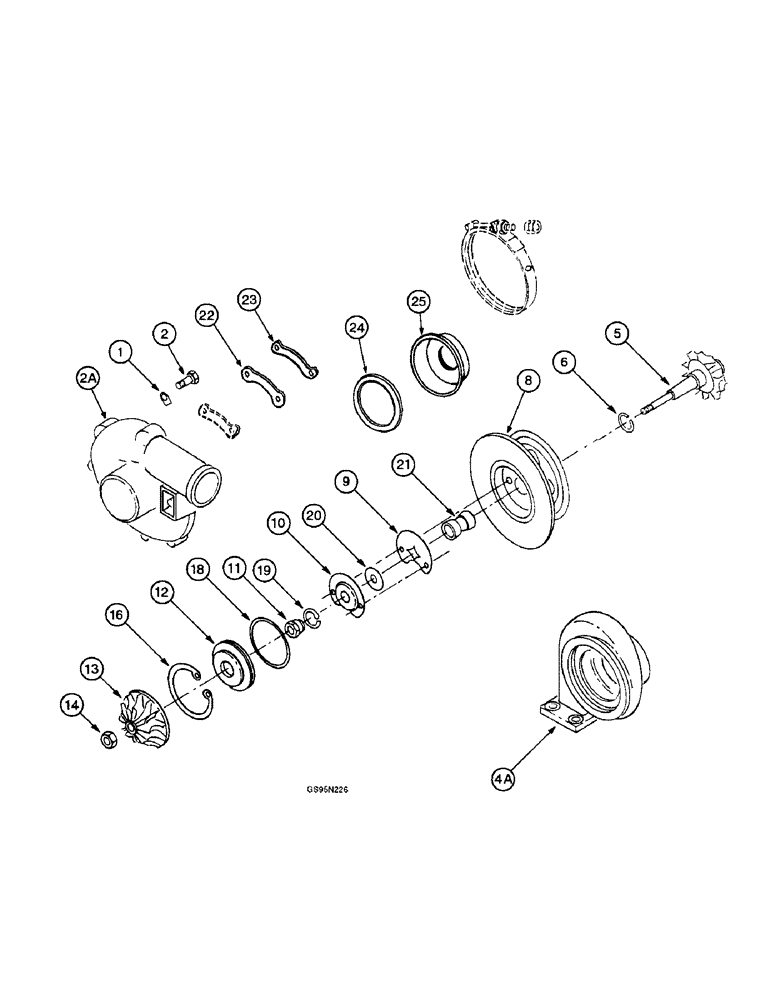

Запчасти Case IH DT-436 (9D-094) - TURBOCHARGER, SCHWITZER - 1486 TRACTORS WITH ENGINES ASN 100078

735142C91

REMAN-TURBOCHARGER

TURBOCHARGER ASSEMBLY - remanufactured (North America only), component parts on this page do not apply to the remanufactured assembly

1шт.

1928229C1

CORE-TURBOCHARGER

RETURN NUMBER - use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

687352C91

TURBOCHARGER

ASSEMBLY - new, no longer available, Includes: Ref. 1 - 25

1шт.

1

619474C1

LOCK ASSY

CLAMP - plate type

3шт.

2

687124C1

BOLT

- hex, includes washer

6шт.

2a

687123C1

COVER

- turbocharger compressor

1шт.

4a

687125C1

HOUSING

- turbine, order turbocharger assemblies 687352C91 or 735142C91

1шт.

A184788

TURBOCHARGER

CORE ASSEMBLY - turbocharger, new (Replaces core assembly 687129C91), Includes: Ref. 5 - 21

1шт.

749621C91

REMAN-TURBOCHARGER

CORE ASSEMBLY - turbocharger, remanufactured, no longer available, order core assembly A184788

1шт.

5

687136C1

WHEEL

SHAFT - turbine, includes wheel

1шт.

6

687139C1

RING

- turbine piston

1шт.

8

687140C1

HOUSING

- bearing, includes pin

1шт.

9

687135C1

BEARING

- thrust plate

1шт.

10

615816C1

DEFLECTOR

- oil

1шт.

11

687134C1

SLEEVE

- thrust

1шт.

12

687131C1

INSERT

- plate

1шт.

13

687130C1

WHEEL

- compressor

1шт.

14

25737R1

LOCK NUT,5/16"-24, GB

NUT - compressor wheel (Replaces nut 615814C1)

1шт.

16

615332C1

RING

- insert snap, no longer available

1шт.

18

687132C1

GASKET

O-RING - insert

1шт.

19

687133C1

RING

- sleeve piston

1шт.

20

615817C1

RING

- thrust plate bearing

1шт.

21

687141C1

BEARING

- housing

1шт.

22

687126C1

PLATE

- clamp

2шт.

23

687127C1

PLATE

- lock

2шт.

687128C1

BOLT,Hex, 5/16" - 18

SCREW - hex, 5/16 NC x 5/8 inch

2шт.

24

687137C1

PLATE

- turbine back

1шт.

25

687138C1

GASKET

- back plate

1шт.
