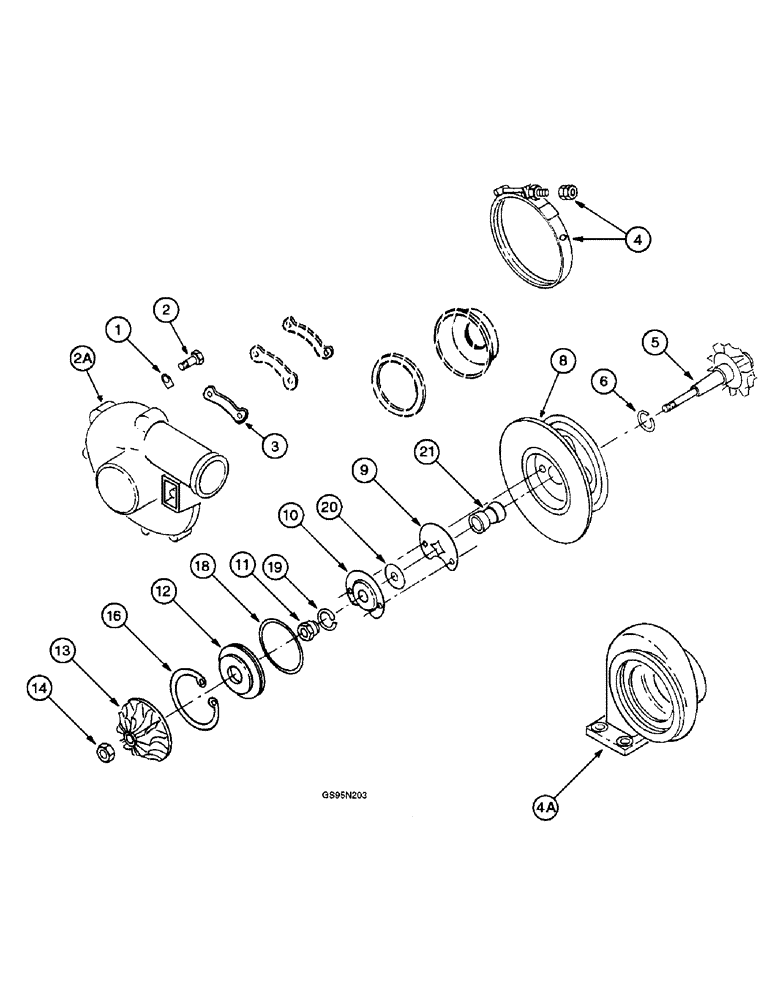

Запчасти Case IH DT-436 (9D-092) - TURBOCHARGER, SCHWITZER - 4166 TRACTORS

682364C91

TURBOCHARGER

ASSEMBLY - no longer available, order new turbocharger assembly A184785, parts list page 9D-90, or remanufactured assembly 749267C92, parts list page 9D-91, Includes: Ref. 1 - 21

1шт.

1

619474C1

LOCK ASSY

CLAMP - plate type

3шт.

2

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4 NC x 7/16 inch (Replaces bolt 25221R1)

6шт.

2a

630632C1

COVER - turbocharger compressor, no longer available

1шт.

3

630633C1

PLATE

- lock

3шт.

4

630635C91

CLAMP

ASSEMBLY - turbine, no longer available, Includes: Self-Locking Nut Listed Below

1шт.

313163R1

NUT

- self-lock, 1/4 inch, no longer available

1шт.

4a

630671C1

HOUSING - turbine, no longer available

1шт.

630637C91

CORE ASSEMBLY - turbocharger, new, no longer available, Includes: Ref. 5 - 21

1шт.

630693C91

CORE ASSEMBLY - turbocharger, remanufactured, no longer available

1шт.

5

630640C1

SHAFT - turbine, includes wheel, no longer available

1шт.

6

615819C1

RING, PISTON

RING - turbine piston

1шт.

8

630641C1

HOUSING - bearing, no longer available

1шт.

9

615818C1

PLATE

- thrust

1шт.

10

615816C1

DEFLECTOR

- oil

1шт.

11

615815C1

SLEEVE

- thrust

1шт.

12

615333C1

INSERT

- slinger plate

1шт.

13

630639C1

WHEEL - compressor, no longer available

1шт.

14

25737R1

LOCK NUT,5/16"-24, GB

NUT - compressor wheel (Replaces nut 615814C1)

1шт.

16

615332C1

RING

- insert snap, no longer available

1шт.

18

687132C1

GASKET

O-RING - insert

1шт.

19

313156R1

RING

- sleeve piston

1шт.

20

615817C1

RING

- thrust

1шт.

21

615820C1

BEARING ASSY

- housing

1шт.
