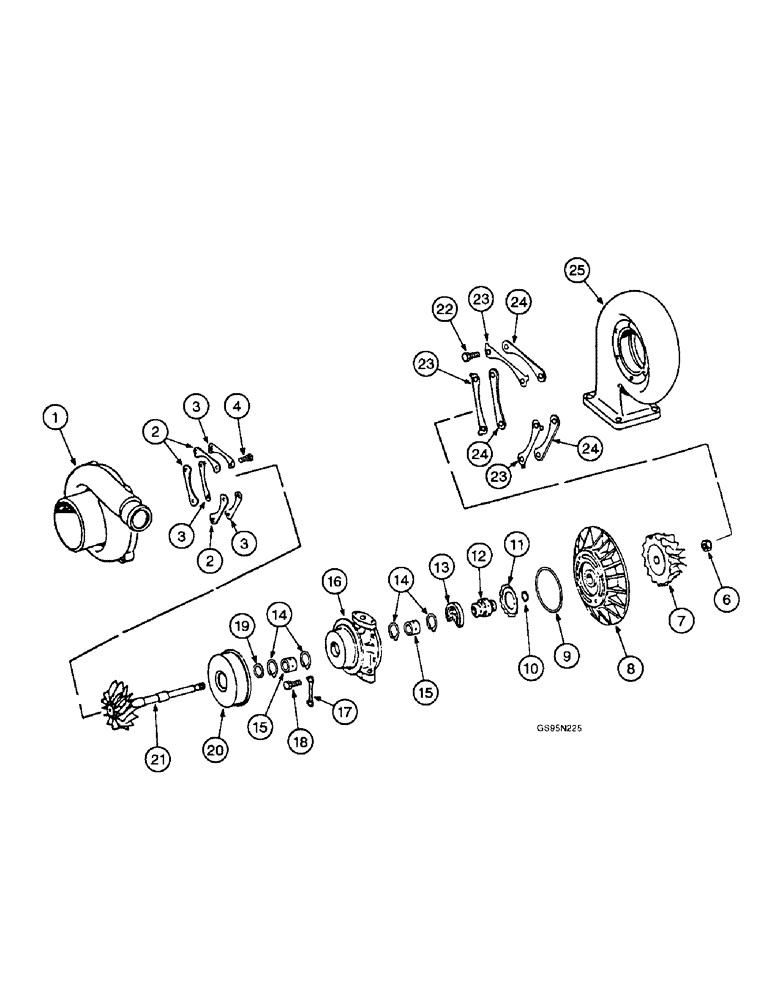

Запчасти Case IH DT-436 (9D-090) - TURBOCHARGER

A184785

TURBOCHARGER

TURBOCHARGER ASSEMBLY - new, Includes: Ref. 1 - 25

1шт.

749267C92

REMAN-TURBOCHARGER

Tractors - 1466, 1486 Prior To SN 100078, 1566, 1586, 3388, 4166, 4186, 5088, 6388,Combines - 1460

1шт.

1928007C1

CORE-TURBOCHARGER

Return Part Number

1шт.

684238C91

TURBOCHARGER

TURBOCHARGER ASSEMBLY

1шт.

749265C91

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1928003C1

CORE-TURBOCHARGER

Return Part Number - use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

A184784

TURBOCHARGER

TURBOCHARGER ASSEMBLY - new, used with 1480 combines with engine serial numbers prior to 103043 (Replaces turbocharger 684238C91), Includes: Ref. 1 - 25

1шт.

749265C91

REMAN-TURBOCHARGER

Reman for New P/N A184784

1шт.

1928003C1

CORE-TURBOCHARGER

Return Part Number

1шт.

1

684248C1

HOUSING

HOUSING - compressor, will work for 630608C1 by also ordering impeller wheel 684247C1, no longer available, order turbocharger

1шт.

2

A44838

CLAMP

CLAMP - housing plate (Replaces clamp 630610C1)

3шт.

3

1809618C1

BOLT

PLATE - housing lock (Replaces plate 630609C1)

3шт.

4

684246C1

BOLT

BOLT - housing lock plate, hex, 5/16 NC x 1/2 inch

6шт.

A184786

ROTOR

HOUSING ASSEMBLY - center, new, for turbocharger assemblies 680098C91 and 684238C91 (Replaces housing assembly 684243C91), Includes: Ref. 6 - 21

1шт.

684244C91

HOUSING

HOUSING ASSEMBLY - center, remanufactured for 684243C91

1шт.

A184782

TURBOCHARGER

HOUSING ASSEMBLY - center, new, for turbocharger assemblies 684237C92 and 684240C92 (Replaces housing assembly 1806150C91), Includes: Ref. 6 - 21

1шт.

735271C91

REMAN-ROTOR ASSY

HOUSING ASSEMBLY - center, remanufactured for 1806150C91

1шт.

630612C92

HOUSING

HOUSING ASSEMBLY - center, used with turbocharger assembly 680098C91, no longer used, order housing assembly 684244C91, Includes: Ref. 6 - 21

1шт.

6

615741C2

NUT

NUT - impeller lock

1шт.

7

684247C1

IMPELLER

WHEEL - impeller, will work for 630613C1 by also ordering compressor housing 684248C1

1шт.

8

630614C91

PLATE

PLATE - impeller back

1шт.

9

A44833

RING

RING - seal (Replaces ring 343847R1)

1шт.

10

A44828

RING

RING - piston (Replaces ring 615746C1)

1шт.

11

615747C1

SPRING WASHER

SPRING - collar

1шт.

12

615745C2

COLLAR

COLLAR - thrust (Replaces collar 615745C1)

1шт.

13

A44832

THRUST BEARING,0.172"

BEARING - thrust (Replaces bearing 627773C1)

1шт.

14

A44827

RING

RING - bearing retainer (Replaces ring 627774C1)

4шт.

15

A44826

BEARING

BEARING - housing journal (Replaces bearing 687965C1)

2шт.

16

684360C92

KIT

HOUSING - center

1шт.

17

625675C1

PLATE, LOCKING

PLATE - lock

2шт.

18

25480R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 8

BOLT - hex, 1/4 NC x 5/8 inch, grade 8, no longer available

4шт.

19

A44829

RING

RING - piston (Replaces ring 684359C1)

1шт.

20

A45091

GUARD

SHROUD - turbine wheel (Replaces shroud 627771C1)

1шт.

21

A44841

WHEEL

SHAFT - turbine, includes wheel, used with housing assembly 684243C91 (Replace shaft 702625C2)

1шт.

21

1806082C1

TURBINE

SHAFT - turbine, includes wheel, used with housing assembly 1806150C91, no longer available, order turbocharger assembly

1шт.

22

424-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

BOLT - hex, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18763R1)

6шт.

23

615739C1

PLATE, LOCKING

PLATE - housing lock

3шт.

24

684245C1

CLAMP

CLAMP - housing plate (Replaces clamp 615740C1)

3шт.

25

A44846

HOUSING

HOUSING - turbine, used with turbocharger assemblies 680098C91, 684237C92 and 684240C92 (Replaces housing 630675C1)

1шт.

25

630611C1

HOUSING

HOUSING - turbine, used with turbocharger assembly 684238C91

1шт.
