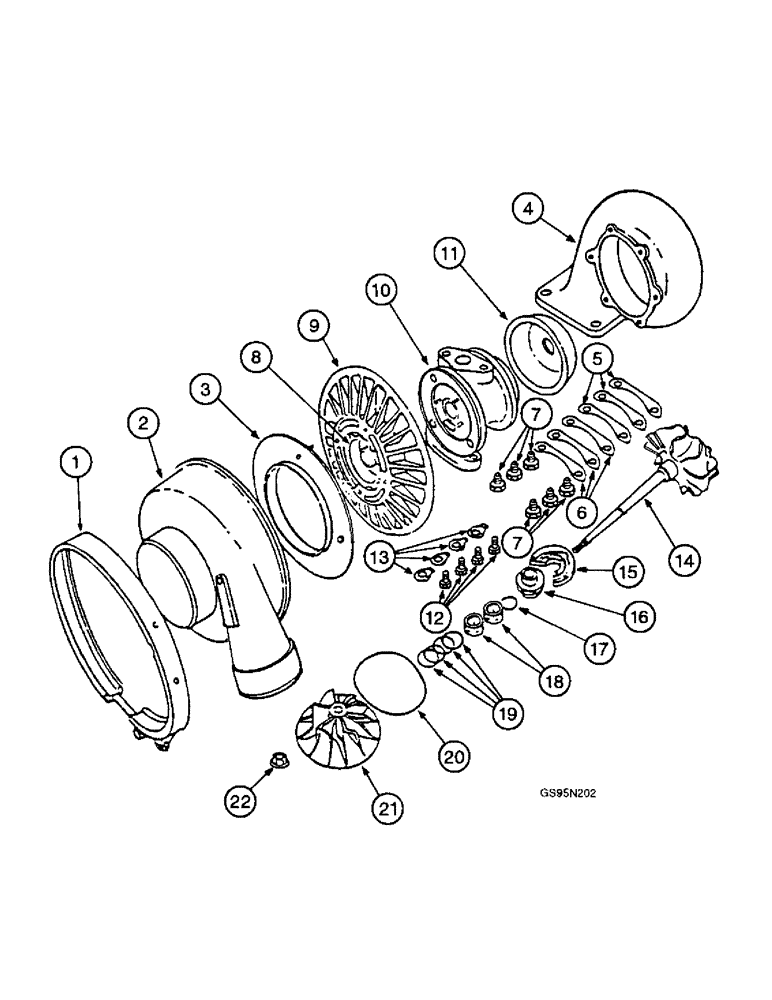

Запчасти Case IH DT-436 (9D-088) - TURBOCHARGER, 1466 AND 1566 TRACTORS

675795C91

TURBOCHARGER

ASSEMBLY - no longer available, order new turbocharger assembly A184785, parts list Figure 9D-90, or remanufactured assembly 749267C91, parts list page 9D-91, Includes: Ref. 1 - 23

1шт.

749267C92

REMAN-TURBOCHARGER

1шт.

1928007C1

CORE-TURBOCHARGER

Return Number

1шт.

1

702327C91

CLAMP

- turbocharger

1шт.

2

619377C1

HOUSING

- compressor, no longer available

1шт.

1809618C1

BOLT

PLATE - housing lock (Replaces plate 630609C1)

3шт.

A44838

CLAMP

- housing plate (Replaces clamp 630610C1)

3шт.

424-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

- hex, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18763R1)

6шт.

3

619378C1

SPARE PART

DIFFUSER - compressor

1шт.

4

615738C1

HOUSING

- turbine

1шт.

5

684245C1

CLAMP

- housing plate, clamp

3шт.

6

615739C1

PLATE, LOCKING

PLATE - housing lock

3шт.

7

684246C1

BOLT

- housing lock plate, hex, 5/16 NC x 1/2 inch

6шт.

680087C92

HOUSING

ASSEMBLY - center, new, Includes: Ref. 8 - 23

1шт.

627912C91

PACKAGE

HOUSING ASSEMBLY - center, remanufactured for 680087C92, no longer available

1шт.

8

615747C1

SPRING WASHER

SPRING - collar

1шт.

9

627772C91

PLATE

BACKPLATE - impeller

1шт.

10

684360C92

KIT

HOUSING - center (Replaces housing 627783C1)

1шт.

A44829

RING

- piston (Replaces ring 684359C1)

1шт.

11

A45091

GUARD

SHROUD - turbine wheel (Replaces shroud 627771C1)

1шт.

12

25480R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 8

- hex, 1/4 NC x 5/8 inch, grade 8, no longer available

4шт.

13

1809617C1

BOLT,Hex, 1/4" x 5/8", Gr 8

PLATE - lock (Replaces plate 625675C1)

2шт.

14

A44841

WHEEL

SHAFT - turbine, includes wheel (Replaces shaft 702625C2)

1шт.

15

A44832

THRUST BEARING,0.172"

BEARING - thrust (Replaces bearing 627773C1)

1шт.

16

615745C2

COLLAR

- thrust (Replaces collar 615745C1)

1шт.

17

A44828

RING

- piston (Replaces ring 615746C1)

1шт.

18

A44826

BEARING

- housing journal (Replaces bearings 680444C1 and 687965C1)

2шт.

19

A44827

RING

- bearing retainer (Replaces ring 627774C1)

4шт.

20

A44833

RING

- seal (Replaces ring 343847R1)

1шт.

21

619376C1

IMPELLER

WHEEL - impeller, no longer available

1шт.

22

615741C2

NUT

- lock, impeller

1шт.

23

A44829

RING

- piston (Replaces ring 684359C1), not illustrated

1шт.
