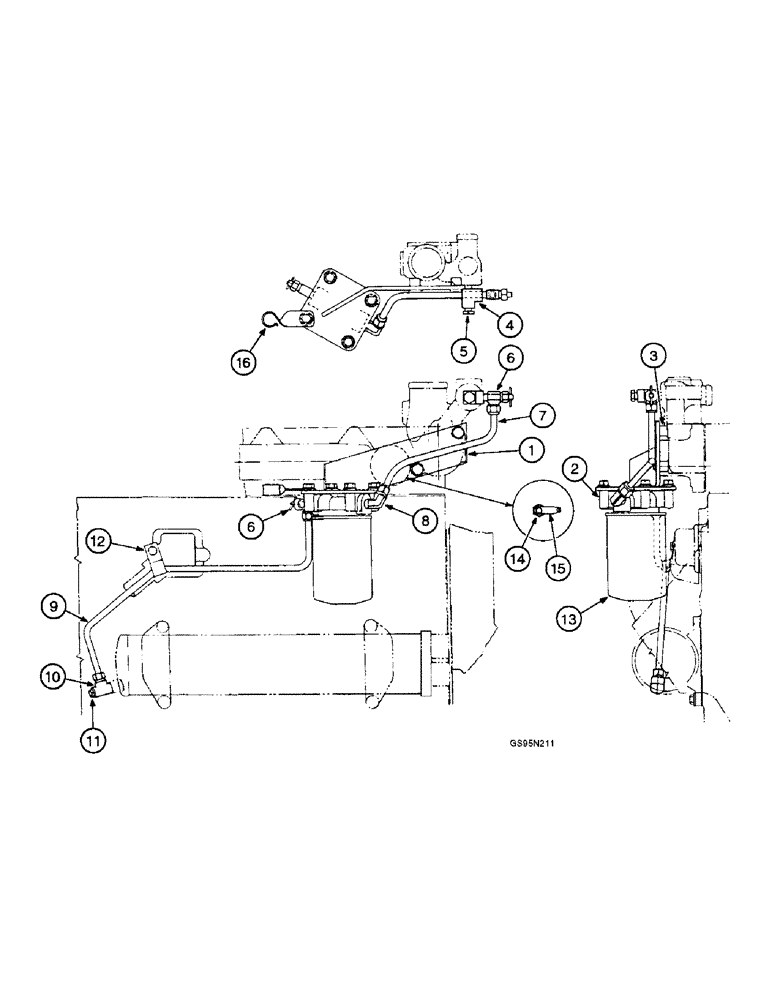

Запчасти Case IH DT-436 (9D-084) - COOLANT FILTER AND CONDITIONER - D-436 ENGINES BSN 89051, DT-436 ENGINES BSN 125673

1

121881C1

BRACKET

- water filter

1шт.

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

(Replaces bolt 24844R1) Hex, 3/8"-16 x 3 1/2", G8

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

2

A152821

HEAD

BASE - coolant filter (Replaces base 427446C1)

1шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

(Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 115093) 3/8"

4шт.

3

359105R1

SPACER,3/8" X-Strng Pipe x 1/2"

- tubular, 3/8 x 1/2 inch, pipe

2шт.

4

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

- pipe, 3/8 inch NPT

1шт.

5

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex, 3/8 inch PT (Replaces plug 20990R1)

1шт.

6

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shut-off

2шт.

7

121888C2

TUBE

ASSEMBLY - coolant outlet, 14 inch (356 mm) long, cut from bulk hose 995063R1 below, Includes: Ref. 7A & 7B

1шт.

7a

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

7b

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

8

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

- coolant outlet tube, 90 degree compression x 3/8 tube OD x 3/8 inch PT (Replaces elbow 606618C1)

1шт.

9

121889C1

TUBE

ASSEMBLY - coolant inlet, 23 inch (554 mm) long, cut from bulk hose 995063R1 below

1шт.

Used with 986 and hydro 186 tractors, 1486 tractors with engine serial numbers prior to 63706, 1586 tractors with engine serial numbers prior to 63695, 4186 tractors with engine serial numbers prior to 62722, 1440 combines

1шт.

9

690406C91

TUBE

ASSEMBLY - coolant inlet

1шт.

Used with 1486 tractors with engine serial number 63706 and after, 1586 tractors with engine serial number 63695 and after, 4186 tractors with engine serial number 63722 and after, 3388 and 6388 tractors, 1460 and 1480 combines

1шт.

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)

1шт.

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1)

1шт.

10

690592C1

TEE,3/8" x 1/4" - 18 NPT x 1/8" - 27 NPT

- oil cooler

1шт.

11

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT (Replaces plug 444572)

1шт.

12

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, tube, used with 986 and hydro 186 tractors, 1486 tractors with engine serial numbers prior to 63706, 1586 tractors with engine serial numbers prior to 63695, 4186 tractors with engine serial numbers prior to 63722, 1440 combines

1шт.

12

673193C1

CLIP

- tube, used with 1486 tractors with engine serial number 63706 and after, 1586 tractors with engine serial number 63695 and after, 4186 tractors with engine serial number 63722 and after, 3388 and 6388 tractors, 1460 and 1480 combines

1шт.

13

A77544

FILTER

- coolant, includes gasket (Replaces filter 1801090C1)

1шт.

14

121756C2

SENSOR

- temperature, used with all machines except 4186 tractors, 1440, 1460 and 1480 combines

1шт.

14

130861C2

SWITCH

- coolant temperature, used with 1440, 1460 and 1480 combines

1шт.

15

384396R1

SPADE TERMINAL,Male

TERMINAL - sender, not required for 4186 or 6388 tractors, used with 1440, 1460 or 1480 combines

1шт.

16

363660R1

CLIP

CLAMP - electrical harness, all machines except 1486 and 1586 tractors

1шт.

16

362667R1

CLIP

CLAMP - retainer, electrical harness, used with 1486 and 1585 tractors

1шт.

995063R1

TUBE

HOSE - bulk, 50 foot (15240 mm) long

1шт.
