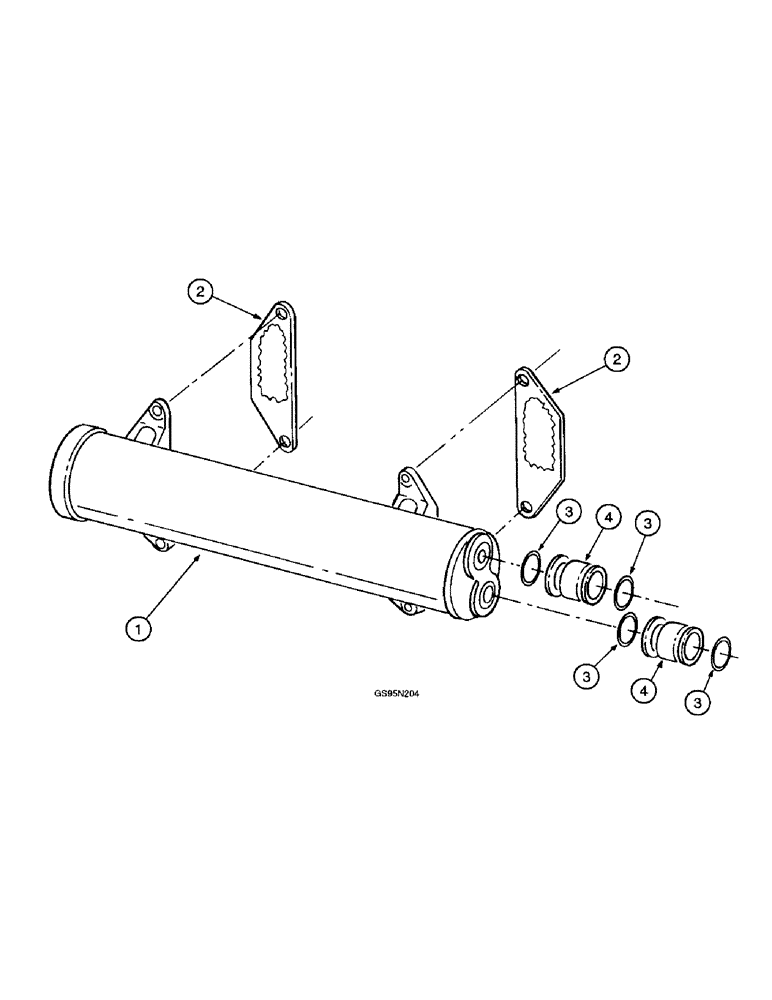

Запчасти Case IH DT-436 (9D-082) - OIL COOLER AND CONNECTIONS

1

1810171C2

COOLER, OIL

COOLER - oil (Replaces cooler kit 680239C92 by also ordering four O-rings 252483R1 and two seals 675513C1, also replaces oil cooler 690884C2)

1шт.

Ref#1 1810171C2 not illustrated properly. this illustration is 680239C92. See see 6 cylinder DT466 engine pg 9E-146 showing illustration of both parts and how to repair. 4/12/00 DB CAM

1шт.

1

735260C92

REMAN-OIL COOLER

D-436 - 6 CYLINDER DIESEL ENGINE -

1шт.

1

1938223C1

CORE-OIL COOLER

Return Number

1шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

Two used with 3688 and 5088 tractors, three used with engine serial numbers 125791 and after except for 3688 and 5088 tractors, four used with engine serial numbers prior to 125791 except for 3688 and 5088 tractors (Replaces bolt 140483H)

1шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, (Replaces washer 115093) 3/8"

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

STUD - rear upper and front upper, 3/8 NC x 3/8 inch, two used with 3688 and 5088 tractors, one used with engine serial numbers 125791 and after except for 3688 and 5088 tractors

1шт.

329-116

NUT,3/8"-24, G8

NUT, (Replaces nut 25523R1) 3/8"-24, G8

1шт.

2

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

3

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING, (Replaces O-ring 252483R1) -218, 70 Duro, 1.234" ID x .139" Thk

4шт.

4

677110C1

PIPE FITTING

TUBE - cooler to front cover, used with oil coolers 677092C92 and 690884C2

2шт.

5

527434R1

CLIP

SPARE PART CLIP - cable harness, two used with 3688 and 5088 tractors

1шт.

6

1810568C1

PLATE

SPACER - coolant passage, not illustrated

1шт.

7

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

O-RING, , Not illustrated Rect, .5" ID x .688" OD, Cl 5

1шт.

8

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

O-RING, , Not illustrated -124, 70 Duro, 1.237" ID x .103" Thk

1шт.

9

310-1528

BOLT - hex prevailing torque, 5/16 NC x 1-3/4 inch, not illustrated

3шт.

10

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch wide, hardened, not illustrated

3шт.

735260C92

REMAN-OIL COOLER

COOLER - oil, remanufactured, component parts do not apply to the remanufactured assembly

1шт.

1938223C1

CORE-OIL COOLER

RETURN NUMBER - use this part number to return cooler core for credit when using a remanufactured assembly

1шт.

1815568C91

COOLER, OIL

KIT - oil cooler, new, used with engine serial numbers prior to 517251, Includes: Ref. 1, 2, 3, 6, 7, 8, 9 & 10

1шт.
