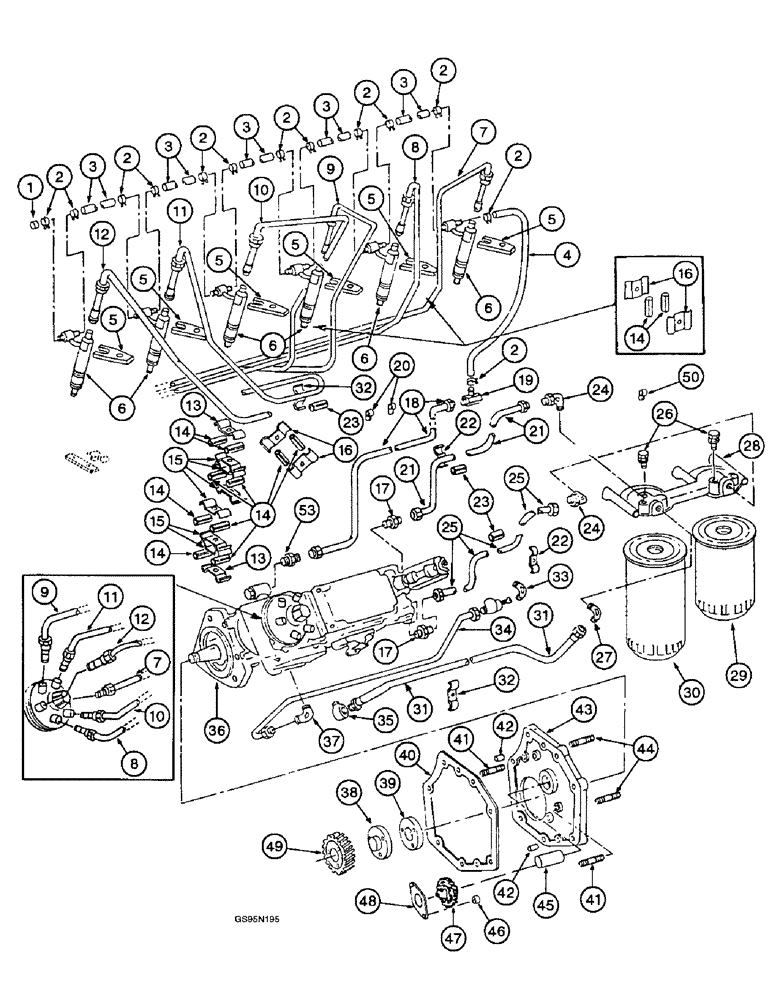

Запчасти Case IH DT-436 (9D-066) - FUEL INJECTION PUMP AND CONNECTIONS - 986, HYDRO 186, 1486, 1586, 3388, 3688, 5088 AND 6388 TRACTORS

1

1802452C1

CAP

- fuel return injector no. 1 (Replaces cap 646547C1)

1шт.

2

A180159

CLAMP,10.29mm - 12.32mm

- injector leakoff hose (Replaces clamps 677129C1 and 1802453C1)

13шт.

3

HOSE - fuel return injector to injector, 5 inch (127 mm) long, cut from bulk hose 680246CX below

5шт.

4

HOSE - no. 6 injector to leakoff tube, 10 inch (254 mm) long, cut from bulk hose 680246CX below

1шт.

5

675479C2

CLAMP

CRAB - injection nozzle

6шт.

691105C1

BOLT

- hex, 5/16 NC x 1-1/16 inch, injector crab (Together with crab 675479C2, replaces bolt 684497C1 and washer 675677C1)

1шт.

6

REF

INSTRUCTION

NOZZLE ASSEMBLY - injection, parts list Figure 9D-74

6шт.

1342831C1

SEAL

GROMMET - injection dust cover (Replaces grommet 682810C1)

6шт.

7

680126C1

PIPE

- injection cylinder no. 6, used with hydro 186 tractors

1шт.

Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000

1шт.

7

684516C1

PIPE

- injection cylinder no. 6, used with 986 and 3688 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers, Serial Range: prior-100394

1шт.

7

688856C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 6, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 1000394 and after, 3388, 5088 and 6388 tractors

1шт.

8

680125C1

PIPE

- injection cylinder no. 5

1шт.

Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000

1шт.

8

684515C1

PIPE

- injection cylinder no. 5, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers prior to 100394, Hydro 100

1шт.

8

688855C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 5, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors

1шт.

9

680124C1

PIPE

- injection cylinder no. 4

1шт.

Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000

1шт.

9

684514C1

PIPE

- injection cylinder no. 4, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers, Serial Range: prior-100394

1шт.

9

688854C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 4, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors

1шт.

10

684513C1

PIPE

- injection cylinder no. 3, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers, Serial Range: prior-100394

1шт.

Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000

1шт.

old book shows item # 10 680123c1 is also used on 1566 kl CAM 3/7/2000

1шт.

10

688853C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 3, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors

1шт.

10

680123C1

PIPE

PIPE - injection cylinder no. 3

1шт.

Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000

1шт.

11

680122C1

PIPE

- injection cylinder no. 2

1шт.

Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000

1шт.

11

684512C1

PIPE

- injection cylinder no. 2, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers, Serial Range: prior-100394

1шт.

11

688852C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 2, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors

1шт.

12

680121C1

PIPE

- injection cylinder no. 1

1шт.

Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000

1шт.

12

684511C1

PIPE

- injection cylinder no. 1, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers, Serial Range: prior-100394

1шт.

12

688851C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 1, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors

1шт.

13

673527C1

CLAMP

- fuel line tube

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut 24468R1) 1/4"-20, GB

2шт.

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

(Replaces bolt 25222R1) Hex, 1/4"-20 x 3/4", G8, Full Thd

1шт.

14

258079C1

GROMMET

- injection tube, fourteen used on 986, 1486, 1586, 3688, 5088 and hydro 186 tractors

12шт.

15

673577C1

CLAMP

- duplex tube, three used on 986, 1486, 1586, 3688, 5088 and hydro 186 tractors

2шт.

16

673527C1

CLAMP

- fuel tube, injection pipe, eight used on 986, 1486, 1586, 3688, 5088 and hydro 186 tractors

6шт.

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

(Replaces bolt 25752C1) Hex, 1/4"-20 x 1/2", G8, Full Thd

3шт.

684548C1

NUT

- spring, used with 986, 1486, 1586, 3688 and hydro 186 tractors

3шт.

340-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips, hex, 1/4 NC x 3/4 inch (Replaces screw 113957)

1шт.

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW - slotted head, 1/4 NC x 1-1/4 inch (Replaces screw 113961)

3шт.

684548C1

NUT

- spring, 1/4 inch NC, no longer available

4шт.

17

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - primary pump inlet, primary filter to injection pump tube and final filter to injection pump tube, compression, 3/8 tube OD x 1/4 inch PT (Replaces connector 606819C1)

2шт.

18

680316C91

TUBE,0.375" OD, 28.88" Length

ASSEMBLY - fuel return lower, Includes: Ref. 18A & Ref. 18B

1шт.

18a

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

18b

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

19

673196C1

TEE

- fuel leakoff, used with 1466, 1566, 4166, 4186 and hydro 100 tractors

1шт.

19

689382C1

TEE

- fuel leakoff, used with 986, 1486, 1586, 3688, 3688, 5088, 6388 and hydro 186 tractors

1шт.

20

673193C1

CLIP

- fuel return tube

2шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

21

684077C91

TUBE,0.375" OD, 15.75" Length

ASSEMBLY - primary pump to final filter, will work for 671815C91, Includes: Ref. 21A & 21B

1шт.

21

691887C91

TUBE

ASSEMBLY - primary pump to final filter, used with 5088 tractors, no longer available, order tube 1806487C91 and clamp 1802981C1, Includes: Ref. 21A & 21B

1шт.

21a

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

21b

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

21

1806487C91

TUBE,0.375" OD

- pump to filter (Replaces tube assembly 691887C91)

1шт.

1802981C1

CLAMP

- tube, used with tube 1806487C91

1шт.

22

279830R1

CLAMP

- primary pump to final filter and primary filter to primary pump tube

2шт.

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

(Replaces bolt 25752R1) Hex, 1/4"-20 x 1/2", G8, Full Thd

1шт.

262038R1

NUT

- speed

1шт.

674830C2

WASHER

- primary pump

1шт.

23

673171C1

RUBBER BUSHING

SLEEVE - rubber, fuel pipe, 3/8 inch ID

2шт.

23

258079C1

GROMMET

- injection tube, fuel pipe

1шт.

23

397483R1

GROMMET

CUSHION - fuel pipe (Replaces cushion 536410R1)

2шт.

24

222-4047

ELBOW

- primary filter outlet and final filter inlet, 90 degree compression x 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)

2шт.

25

684075C91

TUBE,0.375" OD, 22.25" Length

ASSEMBLY - primary filter to primary pump, Includes: Ref. 25A & 25B

1шт.

25

691885C91

TUBE

ASSEMBLY - primary filter to primary pump, used with 5088 tractors, Includes: Ref. 25A & 25B

1шт.

25a

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

25b

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

(Replaces clamp 299404C1) 3/8", Insul, 3/8" Bolt

1шт.

26

39677DA

VALVE

- bleeder

1шт.

27

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree x 5/8 inch x 1/4 inch PT, final filter outlet (Replaces elbow 118755)

1шт.

27

1800602C1

3 WAY CONNECTION

TEE - 45 degree flare, no longer used, order elbow 222-768

1шт.

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT (Replaces plug 444614)

1шт.

28

1809590C91

HEAD ASSY.

HEADER - fuel filter (Replaces header 676143C2)

1шт.

326-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 8

(Replaces bolt 25784R1) Hex, 3/8"-16 x 4 1/4", G8

3шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

3шт.

28

688266C1

HEAD

ER - filter, used with 5088 tractors

1шт.

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket, 1/4 inch PT

2шт.

326-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

(Replaces bolt 25500R1) Hex, 3/8"-16 x 3 1/4", G8

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

29

A184773

SEPARATOR

FILTER - primary fuel, will work for 625625C1 (Replaces filter 625627C1)

1шт.

30

A184774

FUEL FILTER

FILTER - final fuel

1шт.

31

688190C1

HOSE

- final filter to injection pump (Replaces hose 684167C1 by also ordering elbow 118755)

1шт.

32

684899C1

CLAMP

- hose, final fuel to injection pump and primary filter to no. 2 injection pipe

4шт.

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

(Replaces bolt 25222R1) Hex, 1/4"-20 x 3/4", G8, Full Thd

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut 24468R1) 1/4"-20, GB

2шт.

33

319615R1

ELBOW

- male, 1/8 inch NPT x 90 degree

1шт.

33

686839C1

ELBOW

- flex, side outlet, 90 degree x 1/4 inch tube x 1/8 inch NPT, used with 986, 1486, 1586, 3388, 3688, 6388 and hydro 86 tractors

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

34

673165C91

TUBE,1" OD

ASSEMBLY - lubricating oil, Includes: Ref. 34A & 34B

1шт.

34

688301C91

TUBE

ASSEMBLY - lubricating oil, used with 986, 1486, 1586, 3388, 3688, 5088, 6388 and hydro 186 tractors, Includes: Ref. 34A & 34B

1шт.

34a

222-102

SLEEVE,1/4" Tube

(Replaces sleeve 915500R1), Not illustrated 1/4" Tube

2шт.

34b

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1), not illustrated

2шт.

35

REF

INSTRUCTION

ELBOW - injection pump hose, furnished as part of injection pump

1шт.

36

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figure 9D-49A

1шт.

37

606296C1

90 ELBOW

- flex lube oil inlet, 1/4 inch NPT x 90 degree

1шт.

38

676925C1

HUB

- injection pump gear

1шт.

39

676926C1

PLATE

- gear retainer

1шт.

27366R1

BOLT,Hex, 5/16" - 24 x 1 1/2", Gr 8

SCREW - hex, 5/16 NC x 1-1/2 inch (Replaces screw 21512R1)

3шт.

40

675609C2

GASKET

- injection pump mounting adapter

1шт.

41

670364C2

STUD

- used only with gray iron adapter 676928C1

2шт.

676942C93

ADAPTER

ASSEMBLY - injection pump mounting, used with all tractors except 3388 and 6388 tractors, Includes: Ref. 42 - 45

1шт.

689146C91

ADAPTER

ASSEMBLY - injection pump mounting, used with 3388, 5088 and 6388 tractors, Includes: Ref. 42 - 45

1шт.

42

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

43

NSS

NOT SOLD SEPARAT

ADAPTER - injection pump, order adapter assembly

1шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex socket, 1/4 inch PT (Replaces plug 9409949)

1шт.

44

256333R1

STUD

- pump mounting

2шт.

45

19968R1

DOWEL,3/4" x 1 3/4"

PIN - dowel, 3/4 x 1-3/4 inch

1шт.

46

676936C1

SPACER

- tachometer plate

2шт.

47

676938C1

GEAR

- tachometer drive, 32 tooth

1шт.

48

676937C1

PLATE

- tachometer thrust drive

1шт.

232-4615

LOCK NUT,5/16"-24, GC

NUT, LOCK, (Replaces nut 273767) 5/16"-24, GC

2шт.

49

676922C2

GEAR

- injection pump, 33 tooth

1шт.

50

388922R2

CLIP

- electric cable

1шт.

27431R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

- hex lock, 3/8 NC x 1/2 inch, grade 8

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

53

687426C1

ADAPTER,1/4" NPT x 5/8" - 24 NPT

FITTING - fuel return tube orifice (Replaces fitting 606819C1 in fuel return line by also ordering elbow 217-21)

1шт.

329-116

NUT,3/8"-24, G8

(Replaces nut 25523R1) 3/8"-24, G8

2шт.

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

(Replaces bolt 25232R1) Hex, 5/16"-18 x 2", G8

1шт.

326-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

Adapter to front cover (Replaces bolt 25235R1) Hex, 5/16"-18 x 2 1/2", G8

2шт.

27292R1

BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 8

SCREW - hex, 5/16 NC x 2-1/4 inch

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

10шт.

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

(Replaces washer 25544R1) 13/32" x 13/16" x .134", HDN

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

2шт.

302861R1

COPPER WASHER,8.33mm ID x 14.28mm OD x 1.58mm Thk

- flat, copper

2шт.

680246CX

LARGE HOSE

HOSE - bulk, 10 foot (3048 mm) roll, sold by the foot

1шт.
