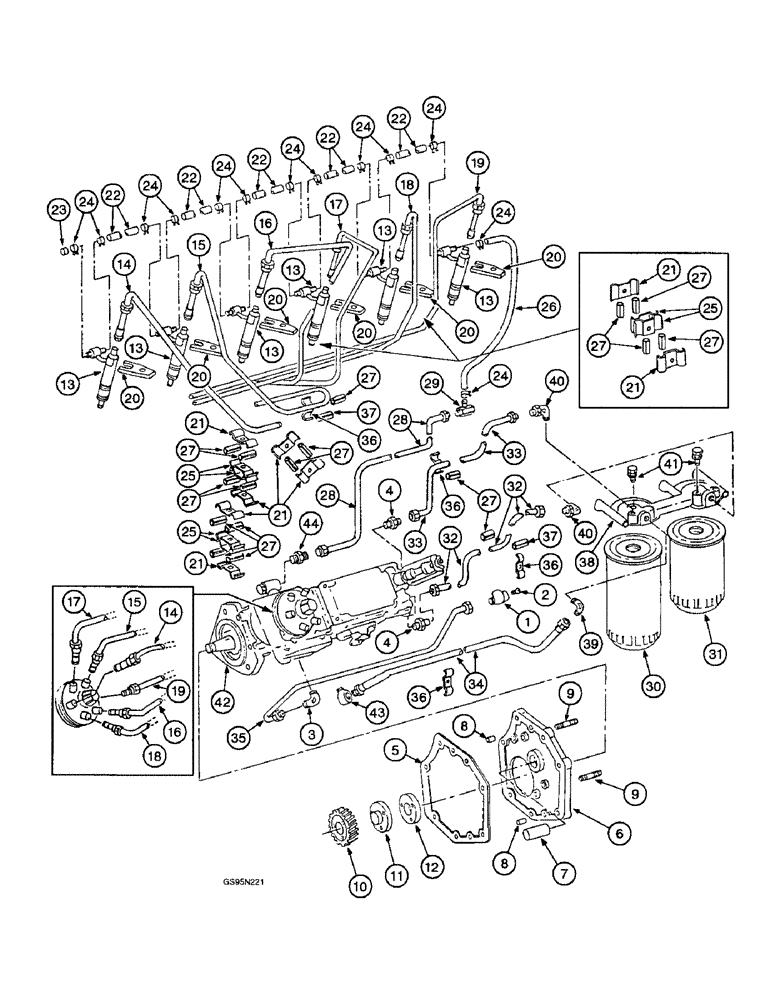

Запчасти Case IH DT-436 (9D-060) - FUEL INJECTION PUMP AND CONNECTIONS, 1440, 1460, AND 1480 COMBINES

1

610000C1

TEE

- lube oil fitting, used with 1460 combines with engine serial numbers prior to 100008, 1480 combines with engine serial numbers, Serial Range: prior-103042

1шт.

1

686839C1

ELBOW

- flex side outlet, used with 1440 combines, 1460 combines with engine serial number 100008 and after, 1480 combines with engine serial number 103042 and after

1шт.

2

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

3

606296C1

90 ELBOW

- flex lube oil inlet, 1/4 inch x 1/4 inch x 90 degree

1шт.

4

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - primary filter to injection pump tube and final filter to injection pump tube, compression, 3/8 tube OD x 1/4 inch PT (Replaces connector 606819C1)

2шт.

5

675609C2

GASKET

- injection pump mounting adapter

1шт.

689146C91

ADAPTER

ASSEMBLY - injection pump mounting, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

ADAPTER - injection pump, order adapter assembly 689146C91

1шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex socket, 3/4 inch PT (Replaces plug 9409949)

1шт.

7

19968R1

DOWEL,3/4" x 1 3/4"

PIN - dowel, 3/4 x 1-3/4 inch

1шт.

8

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

9

256333R1

STUD

- pump mounting

2шт.

10

676922C2

GEAR

- injection pump, 33 teeth

1шт.

11

676925C1

HUB

- injection pump gear

1шт.

12

676926C1

PLATE

- gear retainer

1шт.

27366R1

BOLT,Hex, 5/16" - 24 x 1 1/2", Gr 8

SCREW - hex, 5/16 NC x 1-1/2 inch (Replaces screw 21512R1)

3шт.

13

REF

INSTRUCTION

NOZZLE ASSEMBLY - injection, parts list Figure 9D-74

1шт.

1342831C1

SEAL

GROMMET - injection dust cover (Replaces grommet 682810C1)

6шт.

14

684511C1

PIPE

- injection cylinder no. 1, used with 1440 combines, 1460 combines with engine serial numbers prior to 100008, 1480 combines with engine serial numbers, Serial Range: prior-103042

1шт.

14

688851C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 1, used with 1460 combines with engine serial number 100008 and after, 1480 combines with engine serial number 103042 and after

1шт.

15

684512C1

PIPE

- injection cylinder no. 2, used with 1440 combines, 1460 combines with engine serial numbers prior to 100008, 1480 combines with engine serial numbers, Serial Range: prior-103042

1шт.

15

688852C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 2, used with 1460 combines with engine serial number 100008 and after, 1480 combines with engine serial number 103042 and after

1шт.

329-116

NUT,3/8"-24, G8

(Replaces nut 25523R1) 3/8"-24, G8

2шт.

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

(Replaces bolt 25232R1) Hex, 5/16"-18 x 2", G8

1шт.

326-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

(Replaces bolt 25235R1) Hex, 5/16"-18 x 2 1/2", G8

2шт.

27292R1

BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 8

SCREW - hex, 5/16 NC x 2-1/4 inch

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

3шт.

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

(Replaces washer 25544R1) 13/32" x 13/16" x .134", HDN

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

2шт.

302861R1

COPPER WASHER,8.33mm ID x 14.28mm OD x 1.58mm Thk

- flat, copper

2шт.

16

684513C1

PIPE

- injection cylinder no. 3, used with 1440 combines, 1460 combines with engine serial numbers prior to 100008, 1480 combines with engine serial numbers, Serial Range: prior-103042

1шт.

16

688853C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 3, used with 1460 combines with engine serial number 100008 and after, 1480 combines with engine serial number 103042 and after

1шт.

17

684514C1

PIPE

- injection cylinder no. 4, used with 1440 combines, 1460 combines with engine serial numbers prior to 100008, 1480 combines with engine serial numbers, Serial Range: prior-103042

1шт.

17

688854C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 4, used with 1460 combines with engine serial number 100008 and after, 1480 combines with engine serial number 103042 and after

1шт.

18

684515C1

PIPE

- injection cylinder no. 5, used with 1440 combines, 1460 combines with engine serial numbers prior to 100008, 1480 combines with engine serial numbers, Serial Range: prior-103042

1шт.

18

688855C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

- injection cylinder no. 5, used with 1460 combines with engine serial number 100008 and after, 1480 combines with engine serial number 103042 and after

1шт.

19

684516C1

PIPE

- injection cylinder no. 6, used with 1440 combines, 1460 combines with engine serial numbers prior to 100008, 1480 combines with engine serial numbers, Serial Range: prior-103042

1шт.

19

688856C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection cylinder no. 6, used with 1460 combines with engine serial number 100008 and after, 1480 combines with engine serial number 103042 and after

1шт.

20

675479C2

CLAMP

CRAB - injector nozzle

6шт.

691105C1

BOLT

- hex, 5/16 NC x 1-1/16 inch, injector crab (Together with crab 675479C2 replaces bolt 684497C1 and washer 675677C1)

1шт.

21

673527C1

CLAMP

- fuel line

8шт.

340-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips, 1/4 NC x 3/4 inch (Replaces screw 113957)

1шт.

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW - slotted head, 1/4 NC x 1-1/4 inch (Replaces screw 113961)

3шт.

684548C1

NUT

- spring, no longer available

4шт.

22

REF

INSTRUCTION

HOSE - fuel return injector to injector, 4-1/2 inch (114 mm) long, cut from bulk hose 680246CX below

1шт.

23

1802452C1

CAP

- fuel return injector no. 1 (Replaces cap 676547C1)

1шт.

24

A180159

CLAMP,10.29mm - 12.32mm

- hose (Replaces clamps 677129C1 and 1802453C1)

13шт.

25

673577C1

CLAMP

- duplex

3шт.

26

REF

INSTRUCTION

HOSE - no. 6 injector to leak off tube, 10 inch (254 mm) long, cut from bulk hose 680246CX below

1шт.

27

258079C1

GROMMET

- injection tube

16шт.

28

680316C91

TUBE,0.375" OD, 28.88" Length

ASSEMBLY - fuel return, Includes: Ref. 28A & 28B

1шт.

28a

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

28b

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

29

673196C1

TEE

- fuel leakoff

1шт.

673193C1

CLIP

- tube, tee

2шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

30

A184774

FUEL FILTER

FILTER - final fuel (Replaces filter 672603C2)

1шт.

31

A184773

SEPARATOR

FILTER - primary fuel (Replaces filter 625627C1)

1шт.

32

684075C91

TUBE,0.375" OD, 22.25" Length

ASSEMBLY - primary filter to primary pump, Includes: Ref. 32A & 32B

1шт.

32a

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

32b

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

33

684077C91

TUBE,0.375" OD, 15.75" Length

ASSEMBLY - primary pump to final filter, Includes: Ref. 33A & 33B

1шт.

33a

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

33b

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

34

688190C1

HOSE

- final filter to injection pump

1шт.

35

673165C91

TUBE,1" OD

ASSEMBLY - lube oil, used with 1460 combines with engine serial numbers prior to 100008, 1480 combines with engine serial numbers prior to 103042, Includes: Ref. 35A & 35B

1шт.

35

688301C91

TUBE

ASSEMBLY - lube oil, used with 1440 combines, 1460 combines with engine serial number 100008 and after, 1480 combines with engine serial number 103042 and after, Includes: Ref. 35A & 35B

1шт.

35a

222-102

SLEEVE,1/4" Tube

(Replaces sleeve 915500R1), Not illustrated 1/4" Tube

2шт.

35b

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1), not illustrated

2шт.

36

684899C1

CLAMP

- hose, final filter to injection pump and primary filter to no. 2 injection pipe

1шт.

37

397483R1

GROMMET

CUSHION - grommet (Replaces cushion 536410R1)

2шт.

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

(Replaces bolt 25222R1) Hex, 1/4"-20 x 3/4", G8, Full Thd

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut 24468R1) 1/4"-20, GB

2шт.

38

1809590C91

HEAD ASSY.

HEADER - fuel filter (Replaces header 676143C2)

1шт.

326-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 8

(Replaces bolt 25784R1) Hex, 3/8"-16 x 4 1/4", G8

3шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

3шт.

39

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree x 5/8 inch x 1/4 inch PT, final filter outlet (Replaces elbow 118755)

1шт.

40

222-4047

ELBOW

- primary filter outlet and final filter inlet, 90 degree compression x 38 tube OD x 1/4 inch PT (Replaces elbow 606845C1)

2шт.

41

39677DA

VALVE

- bleeder

1шт.

42

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figure 9D-36

1шт.

43

REF

INSTRUCTION

ELBOW - injection pump hose, furnished as part of injection pump

1шт.

44

687426C1

ADAPTER,1/4" NPT x 5/8" - 24 NPT

FITTING - fuel return tube orifice (Replaces fitting 606819C1 in fuel return line by also ordering elbow 444040)

1шт.

362123R1

CLIP

- cable harness

1шт.

680246CX

LARGE HOSE

HOSE - bulk, 10 foot (3048 mm) roll, sold by the foot

1шт.
