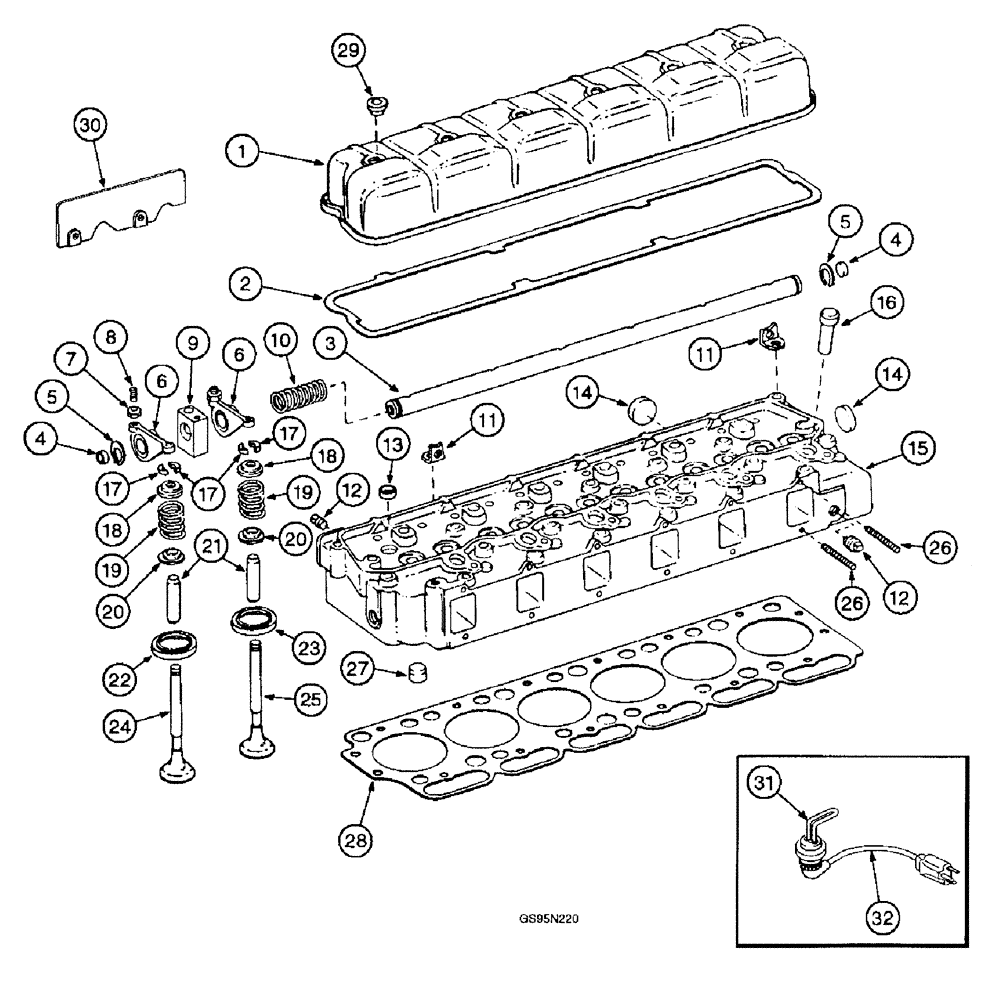

Запчасти Case IH DT-436 (9D-028) - CYLINDER HEAD AND RELATED PARTS / ENGINE BLOCK HEATER

1

676088C5

COVER

valve

1шт.

Used with 1466, 1566, 4166, Hydro 100, 986, Hydro 186 and 3688 tractors, 1486 tractors with engines BSN 63705, 1586 tractors with engines BSN 63694, 4186 tractors with engines BSN 63721, 1460 combines with engines BSN 63635, 1440 combine.

1шт.

1

690339C3

VALVE COVER

1шт.

Used with 1486 tractors with engines ASN 63706, 1586 tractors with engines ASN 63695, 3388, 5088, and 6388 tractors, 4186 tractors with engines ASN 63722, 1460 combines with engines ASN 63636, 1480 combines.

1шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

(Replaces bolt 25654R1)

6шт.

689324C1

STUD,Stud, 5/16" - 24 - 5/16" - 18 x 2.30"

valve cover, used with 5088 tractors with turbocharger oil inlet tube clamp bracket

1шт.

2

1342828C1

GASKET

valve cover (Replaces gasket 675109C2)

1шт.

3

675660C92

SHAFT

rocker arm

1шт.

4

41-109

PLUG,Cup, 9/16"

rocker arm shaft (Replaces plug 291171C1)

2шт.

5

100-1184

SNAP RING,#84, Ext

Replaces 24577R1

2шт.

6

682260C91

LEVER

valve rocker arm, engines BSN 46359

12шт.

6

1820830C92

ROCKER

valve rocker arm, engines ASN 46359 (Replaces arm 688999C93)

12шт.

7

133093R1

NUT,Hex, 3/8" - 24

adjusting screw

1шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

rocker arm adjusting

1шт.

9

675547C2

BRACKET

rocker arm shaft, order bracket 1802461C3

6шт.

9

1802461C3

SUPPORT

rocker arm shaft bracket, used at cylinder numbers 2 and 5, order kit 1802464C92

2шт.

9

1802462C2

BRACKET

rocker arm shaft, used at cylinder no. 4, no longer used, order bracket 1802461C3

2шт.

10

675105C1

SPRING

rocker arm shaft

5шт.

11

675455C1

EYE

lifting

2шт.

25830R1

BOLT,Hex, 9/16" - 12 x 1 1/4", Gr 8

hex, 9/16 NC x 1-1/4 inch

2шт.

1800901C91

HEAD (CYLINDER)

new, used with 986, Hydro 100, Hydro 186 and 3688 tractors, 1440 combines and 1640 combines BSN JJC0034705 (Replaces head assembly 684400C92), Includes: Ref. 12-27

1шт.

749605C92

REMAN-CYLINDER HEAD

Remanufactured for 684400C92, component parts do not apply to the remanufactured assembly

1шт.

1928091C1

CORE-CYLINDER HEAD

Use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

691876C91

HEAD (CYLINDER)

no longer used, order head assembly 749635C92, Includes: Ref. 12-27

1шт.

Used with 1466, 1566, 4166 and 4186 tractors, 1486 tractors with engines BSN 100078, 1586 tractors with engines BSN 100394, 1460 combines with engines BSN 100008, 1480 combines with engines BSN 103042.

1шт.

749635C92

REMAN-CYLINDER HEAD

Remanufactured for 691876C91, component parts do not apply to the remanufactured assembly

1шт.

1928111C1

CORE-CYLINDER HEAD

Use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

749854C92

REMAN-CYLINDER HEAD

Remanufactured for 687199C92, component parts on this page do not apply to the remanufactured assembly

1шт.

1928113C1

CORE-CYLINDER HEAD

Use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

1816969C91

HEAD (CYLINDER)

(Replaces head assemblies 687199C92 and 691877C91), Includes: Ref. 12-27

1шт.

Used with 1486 tractors with engines ASN 100078, 1586 tractors with engines ASN 100394, 1460 combines with engines ASN 100008, 1480 combines with engines ASN 103042, 3388, 5088 and 6388 tractors.

1шт.

12

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

square socket, magnetic, 1/2 " PT (replaces plug 445751)

2шт.

13

41-1618

PLUG,Cup, 1 1/8", Stainless

cup, 1-1/8" (replaces plug 21427R1)

6шт.

14

41-1624

PLUG,Cup, 1 1/2", Stainless

cup, 1-1/2" (replaces plug 601093C1)

6шт.

15

NSS

NOT SOLD SEPARAT

Head - cylinder, order head assembly

1шт.

16

675442C1

SLEEVE

injector

6шт.

17

41339D

KEY

Lock - valve spring retainer

24шт.

18

682221C92

VALVE

Rotator - valve, top (replaces rotator 1811581C91)

12шт.

1342827C1

SHIELD

Shield - oil (replaces oil shield 681234C1)

1шт.

19

682064C1

SPRING

valve

12шт.

20

675443C1

SEAT

valve spring

12шт.

21

675439C1

GUIDE

valve

12шт.

22

671559C1

INSERT

intake valve seat, 0.002" oversize

6шт.

22

671561C1

INSERT

intake valve seat, 0.015" oversize

6шт.

23

671563C2

INSERT

exhaust valve seat, 0.002" oversize

6шт.

23

671565C1

INSERT

exhaust valve seat, 0.015" oversize

6шт.

24

675046C4

VALVE,ENGINE,INLET,S

VALVE INTAKE intake

6шт.

25

676865C4

VALVE

exhaust

6шт.

26

682840C1

STUD

exhaust manifold, no longer available, order bolt 1809774c1

12шт.

682987C1

NUT

hex

12шт.

684034C1

WASHER,11.91mm ID x 21.34mm OD x 3.17mm Thk

flat, 15/32 x 27/32 x 1/8 inch

12шт.

27

675045C1

DEFLECTOR

water, engines BSN 119232

12шт.

27

691183C1

DEFLECTOR

water, engines ASN 119232

12шт.

1809774C1

STUD,Hex, 7/16" - 14 x 1.50"

hex bolt prevailing torque, 7/16 NC x 1-1/2 inch

12шт.

28

1342421C2

CYLINDER HEAD GASKET

cylinder head (Replaces gasket 676108C2)

1шт.

29

1342830C1

SEAL

valve cover grommet (Replaces grommets 313971R1 and 677692C1)

6шт.

30

1800248C1

SHIELD

heat, used with 5088 tractors only

1шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1)

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 115093)

2шт.

676119C1

BOLT

cylinder head long

6шт.

676120C1

BOLT

cylinder head short

20шт.

252018R1

WASHER,15.11mm ID x 25.4mm OD x 4.83mm Thk

cylinder head bolt

26шт.

31

71151C91

HEATER

engine block, 115 volt

1шт.

Used with Hydro 100, Hydro 186, 986, 1466, 1486, 1566, 1586, 3388, 3688, 4166, 4186, 5088 and 6388 tractors; 1440, 1460 and 1480 combines.

1шт.

32

A44813

CABLE EXTENSION

engine block heater, 12 inch (305 mm) long (Replaces cable 71150C1)

1шт.

Ref #32: A44813 is 1ft. long. For 6ft. long cord, order J905113 or 196466A1. 4/12/02 CJK-TSG

1шт.
