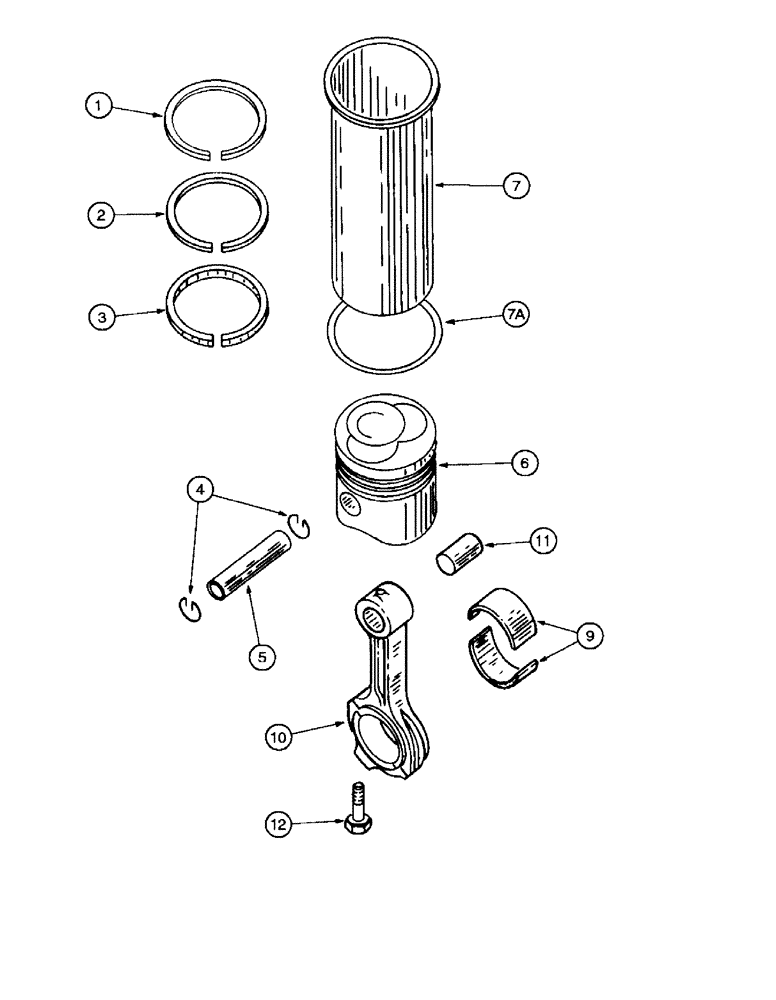

Запчасти Case IH DT-436 (9D-022) - CONNECTING RODS PISTONS AND SLEEVES

684261C95

SLEEVE ASSY

cylinder, no longer available, order sleeve assembly 1082579C93 and ring kit 1346908C91, used with DT-436 engines BSN 63636, Includes: Ref. 1 - 8A

6шт.

1802579C93

PACKAGE

SLEEVE ASSEMBLY - cylinder, used with DT-436 engines ASN 63636, includes NSS piston 684253C3 (Replaces sleeve assembly 684261C95 by ordering ring kit 1346908C91, also replaces 687431C91 by ordering ring kit 1346906C91), Includes: Ref. 4 - 8A

6шт.

Engine must be equipped with valve cover mounted breather.

1шт.

1809580C93

PACKAGE

SLEEVE ASSEMBLY - cylinder, used with D-436 engines, includes NSS piston 675775C1, Includes: Ref. 4, 5, 6, 7, 8

6шт.

1346907C91

RING, PISTON

kit, keystone top ring, wide gap, D-436 engines, Includes: Ref. 1 - 3

1шт.

680255C91

RING, SET

KIT - piston ring, keystone top ring, narrow gap, DT-436 engines, Includes: Ref. 1 - 3

1шт.

1466 tractors with engine serial numbers BSN 12025, 4166 tractors with engine serial numbers BSN 11623

1шт.

1346908C91

SET

KIT - piston ring, full keystone top ring, narrow gap, DT-436 engines, (Replaces kit 684256C91, Includes: Ref. 1 - 3

1шт.

1466 tractors with engines ASN 12025, 4166 tractors with engines ASN 11623, 4186 tractors with engines BSN 63721, 1566 tractors, 1460 combines with engines BSN 63635, 1486 tractors with engines BSN 63705, 1586 tractors with engines BSN 63694

1шт.

1346906C91

PISTON RING SET

KIT - full keystone top ring, wide gap, DT-436 engines (Replaces kit 687429C92), Includes: Ref. 1 - 3

1шт.

4186 tractors with engines ASN 63722, 1460 combines with engines ASN 63636, 1486 tractors with engines ASN 63706, 1586 tractors with engines ASN 63695, 1480 combines 3388, 5088, and 6388 tractors

1шт.

Engine must be equipped with valve cover mounted breather.

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression piston, top or first groove, order kit

1шт.

2

NSS

NOT SOLD SEPARAT

RING - Compression piston, second groove, order kit

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil regulating piston, third or bottom groove, order kit

1шт.

4

326874R1

RETAINER

RING - piston pin

2шт.

5

670675C1

PISTON PIN,41.27mm OD x 89.15mm L

piston

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON - order sleeve assembly

1шт.

7

A77692

SLEEVE CYLINDER

(Replaces sleeve 682720C1)

1шт.

7a

NSS

NOT SOLD SEPARAT

O-RING - cylinder sleeve, order kit 680086C1

1шт.

8

680086C1

GASKET KIT

cylinder sleeve O-ring, contains 3 o-rings, not illustrated

1шт.

8a

680333C92

SHIM KIT

cylinder sleeve, includes next five shim sizes, not illustrated

1шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.002 inch, order kit

2шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.004 inch, order kit

2шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.010 inch, order kit

1шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.020 inch, order kit

1шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.030 inch, order kit

2шт.

9

681314C3

BEARING SET

connecting rod, two halves, standard

6шт.

Used with crankshaft 675051C1.

1шт.

FOR DIFF IN 1808059C92/681314C3 ROD BRGS, SEE BLTN S-4936. 12/5/01 BW CAM

1шт.

681314c3 consists of two bearings marked 682070c*. ph-cam 6-18-99

1шт.

9

681315C3

BEARING SET

connecting rod, two halves, 0.010 inch undersize

6шт.

Used with crankshaft 675051C1.

1шт.

9

687382C3

BEARING SET

connecting rod, two halves, 0.020 inch undersize

6шт.

Used with crankshaft 675051C1.

1шт.

9

681316C3

BEARING SET

connecting rod, two halves, 0.030 inch undersize

6шт.

Used with crankshaft 675051C1.

1шт.

9

1808059C92

BEARING SET,77.74mm ID x 82.8mm OD x 32mm W

connecting rod, two halves, standard

6шт.

Used with crankshaft 675051C2

1шт.

FOR DIFF IN 1808059C92/681314C3 ROD BRGS, SEE BLTN S-4936. 12/5/01 BW CAM

1шт.

9

1808060C91

BEARING LINER

connecting rod, two halves, 0.010 inch undersize

6шт.

Used with crankshaft 675051C2

1шт.

9

1808061C92

BEARING SET,82.80mm OD x 32 mm

connecting rod, two halves, 0.020 inch undersize

6шт.

Used with crankshaft 675051C2

1шт.

9

1808062C91

BEARING LINER

connecting rod, two halves, 0.030 inch undersize

6шт.

Used with crankshaft 675051C2

1шт.

10

688923C91

ROD, CONNECTING

new (Replaces rod assemblies 675640C91 and 684294C91), includes 11 and 12

1шт.

10

735242C91

REMAN-CONNECTING ROD

Rod Assembly, component parts on this figure do not apply to remanufactured assembly

1шт.

10

1928155C1

CORE-ROD CONNECTING

Return Part Number - use this part number to return rod core for credit when using a remanufactured assembly

1шт.

11

675006C1

BUSHING

piston pin

1шт.

12

676679C2

BOLT

connecting rod

2шт.
