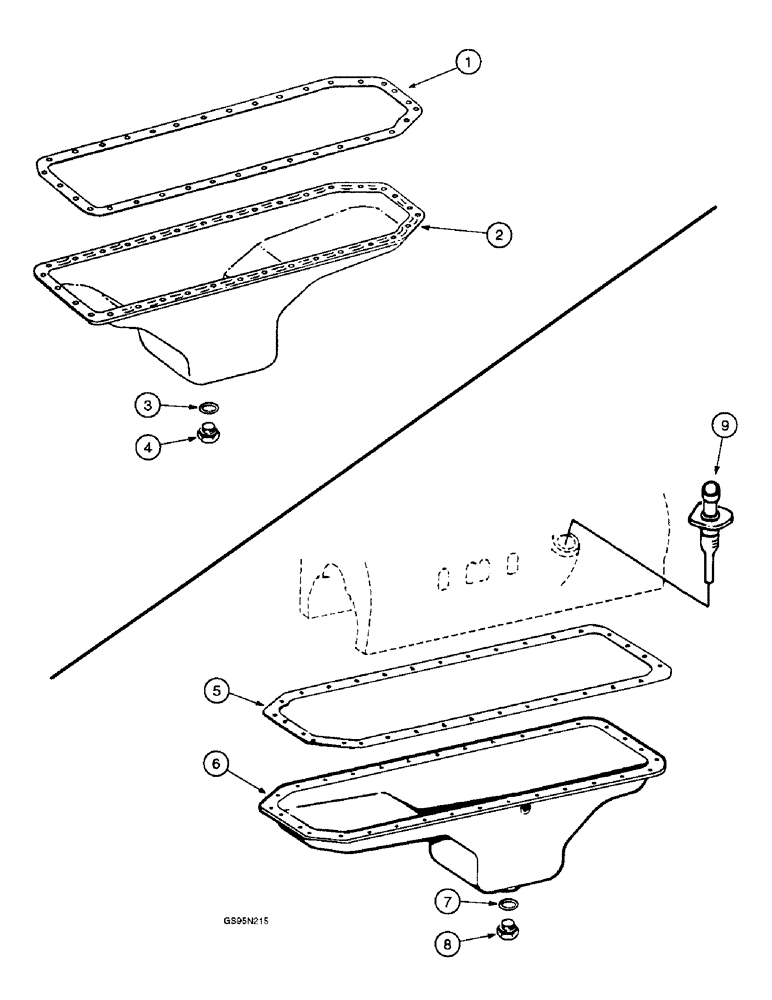

Запчасти Case IH DT-436 (9D-018) - CRANKCASE OIL PAN (FIGURE 1 OF 2)

1

671827C4

OIL PAN GASKET SET

- oil pan, crankcase

1шт.

2

671826C91

PAN

- crankcase oil

1шт.

Used with all machines except 4166, 4186, 5088 and 6388 tractors and 1440, 1460 and 1480 combines

1шт.

677490C1

SCREW

- oil pan

34шт.

3

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug

1шт.

4

688067C1

PLUG

- crankcase oil pan drain

1шт.

5

671827C4

OIL PAN GASKET SET

- oil pan, used with oil pan 690573C91

1шт.

5

1806579C1

GASKET

- oil pan, used with oil pan 1806454C91

1шт.

6

1806454C91

PAN

- crankcase oil (Replaces pan 690573C91)

1шт.

Used with 5088 and 6388 tractors

1шт.

677490C1

SCREW

- oil pan

34шт.

7

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug, used with oil pan 690573C91

1шт.

7

393670C1

GASKET

- drain plug, used with oil pan 1806454C91

1шт.

8

688067C1

PLUG

- crankcase oil pan drain, used with oil pan 6905739C1

1шт.

8

393671C2

PLUG

- crankcase oil drain, used with oil pan 1806454C91

1шт.

9

1801413C1

TUBE

- oil filler and gauge (Replaces tubes 690583C1, 690586C1 and 690587C1)

1шт.
