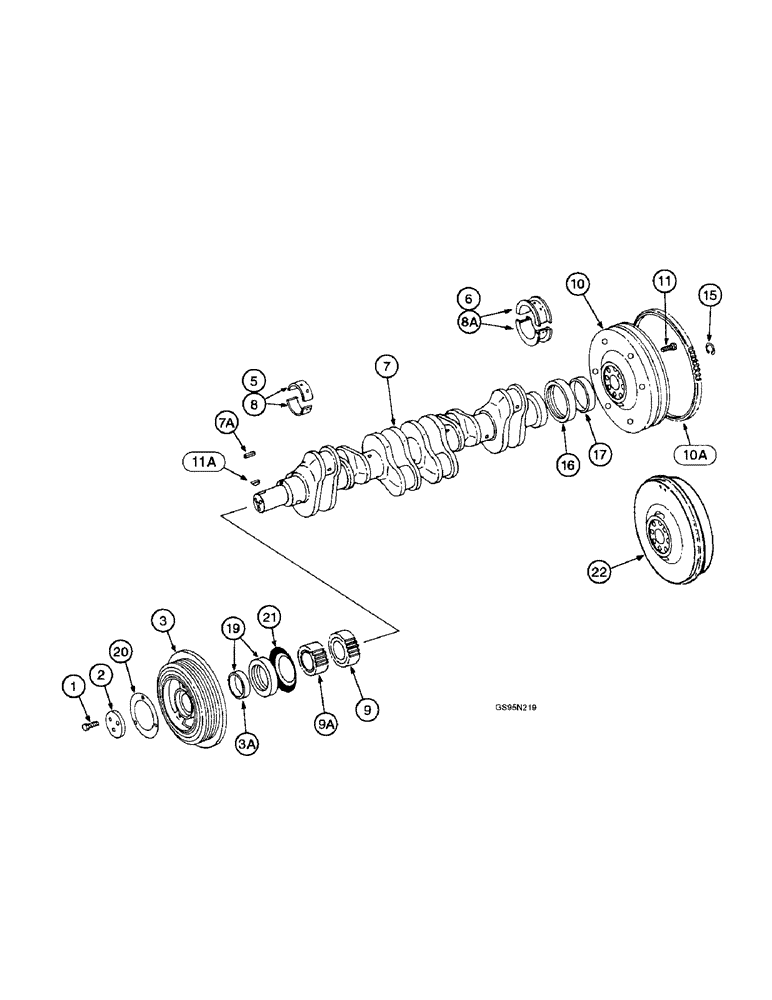

Запчасти Case IH DT-436 (9D-014) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

(Replaces bolt 24862R1) Hex, 1/2"-13 x 1 1/2", G8, Full Thd

3шт.

2

675412C1

PLATE

- damper retaining

1шт.

3

680275C92

PULLEY

DAMPER ASSEMBLY - vibration, 3 Mounting Holes, 2400 RPM, used on 4166, 4186, hydro 100, hydro 186, 986, 3688, and 5088 tractors, 1440, 1460 and 1480 combines, Includes: Ref. 3A

1шт.

Ref 3 - for 3388, 6388 all 88 units damper assy sb p/n 680275c92 7/13/98 csd

1шт.

3

683459C94

PULLEY

DAMPER ASSEMBLY - vibration, 4 Mounting Holes 2600 RPM, used on 1466, 1566, 1486, 1586 and 5488 tractors, Includes: Ref. 3A

1шт.

Ref. 3 damper assembly, see the tractor model book, under Power, for the correct damper if your model is not listed on this page.

1шт.

Ref #3 683459c94...this is also used with 5488 tractors. 1802393C93 used on some reman engines with 1.5" pumps.

1шт.

3a

NSS

NOT SOLD SEPARAT

SLEEVE - wear, order damper assembly or kit 690437C93

1шт.

5

684570C93

CRANKSHAFT BEARING

BEARING - crankshaft main, front and intermediate, two halves, standard, no longer available separately, order bearing kit 243649A1

6шт.

Used with crankshaft 675051C1.

1шт.

These narrow bearings are 1.22" wide. See bul S-4936 JHW cam 12-01

1шт.

5

684573C93

BEARING SET

- crankshaft main, front and intermediate, two halves, 0.010 inch undersize, no longer available separately, order bearing kit 243650A1

6шт.

Used with crankshaft 675051C1.

1шт.

These narrow bearings are 1.22" wide. See bul S-4936 JHW cam 12-01

1шт.

5

687391C3

BEARING SET

- crankshaft main, front and intermediate, two halves, 0.020 inch undersize, no longer available separately, order bearing kit 243651A1

6шт.

Used with crankshaft 675051C1.

1шт.

These narrow bearings are 1.22" wide. See bul S-4936 JHW cam 12-01

1шт.

5

684576C93

BEARING SET

BEARING - crankshaft main, front and intermediate, two halves, 0.030 inch undersize

6шт.

Used with crankshaft 675051C1.

1шт.

These narrow bearings are 1.22" wide. See bul S-4936 JHW cam 12-01

1шт.

5

1808070C92

CRANKSHAFT BEARING

BEARING - crankshaft main, front and intermediate, two halves, 0.010 inch undersize, no longer available separately, order bearing kit 243641A1

6шт.

Used with crankshaft 675051C2

1шт.

5

1808071C92

CRANKSHAFT BEARING

BEARING - crankshaft main, front and intermediate, two halves, 0.020 inch undersize

6шт.

Used with crankshaft 675051C2

1шт.

5

1808072C91

BEARING LINER

BEARING - crankshaft main, front and intermediate, two halves, 0.030 inch undersize

6шт.

Used with crankshaft 675051C2

1шт.

6

684582C93

CRANKSHAFT BEARING

BEARING - crankshaft main, rear, two halves, 0.010 inch undersize

1шт.

6

687394C3

CRANKSHAFT BEARING

BEARING - crankshaft main, rear, two halves, 0.020 inch undersize

1шт.

6

684585C93

BEARING SET

BEARING - crankshaft main, rear, two halves, 0.030 inch undersize, no longer available separately, order kit 243652A1 for narrow bearings and kit 243648A1 for wide bearings

1шт.

749655C91

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - remanufactured for crankshaft assembly 749655C91 (North America only), component parts on this page do not apply to the remanufactured assembly, no longer available, order crankshaft 675663C92

1шт.

1928179C1

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

681318C93

CRANKSHAFT

ASSEMBLY - standard, new, no longer available, order crankshaft 675663C92 below

1шт.

7

675663C92

CRANKSHAFT

- standard

1шт.

7a

17135R1

LOCK PIN,5/32" x 5/16", Slotted

PIN, 5/32" x 5/16", Slotted

1шт.

8

1808069C92

CRANKSHAFT BEARING

BEARING - crankshaft main, front and intermediate, two halves, standard, no longer available separately, order bearing kit 243640A1

1шт.

Used with crankshaft 675051C2

1шт.

These wide bearings are 1.294" wide. See bul S-4936 JHW cam 12-01

1шт.

8a

684579C93

CRANKSHAFT BEARING,116.33mm ID x 122.68mm OD x 45.14mm W

BEARING - crankshaft main, rear, two halves, standard

1шт.

1808059C92

BEARING SET,77.74mm ID x 82.8mm OD x 32mm W

BEARING - standard

1шт.

9

675406C1

GEAR

- crankshaft, 32 tooth

1шт.

9a

675364C1

GEAR

SPLINE - oil pump drive, 41 tooth

1шт.

10

672211C91

FLY JIB

FLYWHEEL ASSEMBLY - 986, hydro 100, hydro 186, and 3688 tractors, Includes: Ref. 10A

1шт.

10

683209C92

FLYWHEEL

ASSEMBLY - used with 1440, 1460 and 1480 combines, no longer available, order gear 690252C1, item 10A and flywheel 683399C1, item 22, Includes: Ref. 10A

1шт.

10

672215C91

FLYWHEEL

ASSEMBLY - used with all machines except hydro 100, hydro 186, 986, 3388 and 5088 tractors and 1440, 1460 and 1480 combines, Includes: Ref. 10A

1шт.

10

282227A1

FLYWHEEL

ASSEMBLY - 5088 tractors (Replaces flywheel assembly 691677C92), Includes: Ref. 10A

1шт.

10a

326759R1

GEAR

- ring, 132 tooth, used with flywheel assembly 672215C91

1шт.

10a

341604R1

GEAR

- ring, 132 tooth, used with flywheel assemblies 672211C91 and 683209C91

1шт.

10a

690252C1

GEAR

- ring, 132 tooth, used with flywheel assembly 683209C92

1шт.

10a

1813752C1

GEAR

- ring, 138 tooth, used with flywheel assembly 282227A1

1шт.

11

25277R1

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 8

- hex, 1/2 NF x 1-3/4 inch, grade 8

8шт.

item #11-per new and old standards size is 1-3/4".

1шт.

685902C1

WASHER

- hardened

8шт.

11a

691044C1

KEY

- vibration damper, 5/16 x 1 inch (Replaces key 124544)

1шт.

15

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, (Replaces 456736R1) 2.062", Int, #206

1шт.

1809964C92

OIL SEAL

KIT - crankshaft, rear seal and wear sleeve (Replaces kits 678554C91 and 691631C91), Includes: Ref. 16 & 17

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil, order kit 1809964C92

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear, order kit 1809964C92

1шт.

19

690437C94

SEAL KIT

KIT - front seal and wear sleeve (Replaces kit 680119C1)

1шт.

20

684431C1

PLATE

- vibration damper, used with damper assembly 680275C91

1шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

3шт.

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

(Replaces washer 25544R1) 13/32" x 13/16" x .134", HDN

3шт.

20

682835C1

PLATE

- vibration damper, used with damper assembly 683459C91

1шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

4шт.

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

(Replaces washer 25544R1) 13/32" x 13/16" x .134", HDN

4шт.

21

687024C1

SEALING WASHER

WASHER - seal

1шт.

22

683399C1

FLYWHEEL

- dyno-flex coupling, used with 3388 and 6388 tractors

1шт.
