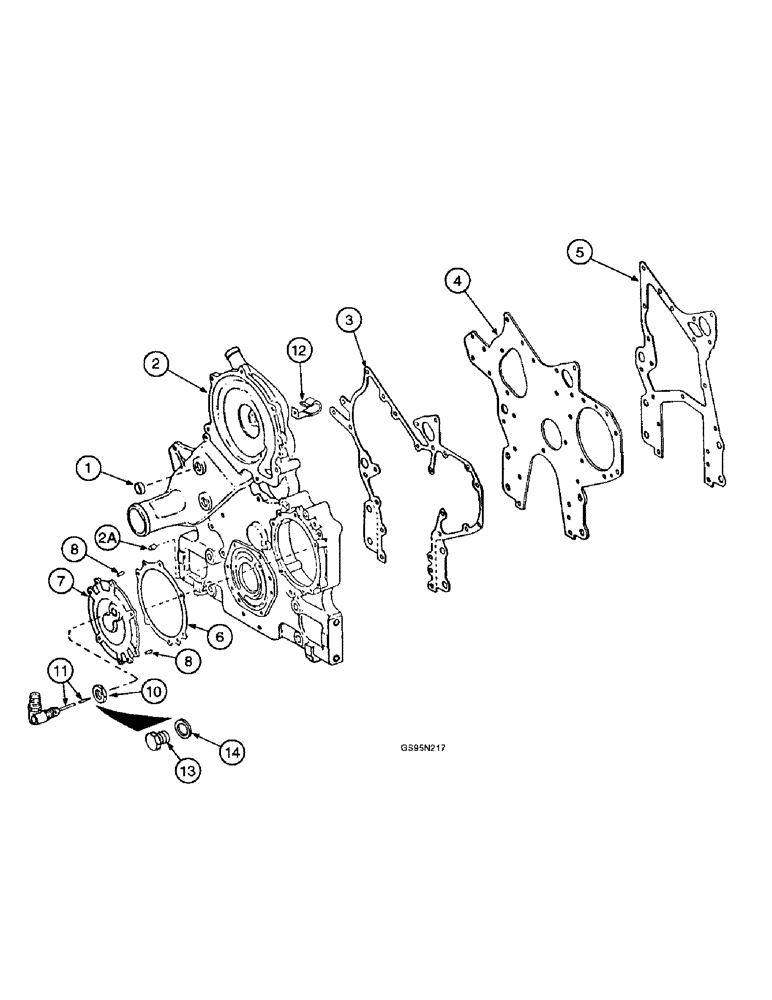

Запчасти Case IH DT-436 (9D-012) - CRANKCASE FRONT COVER AND RELATED PARTS, ALL MACHINES EXCEPT 4166, 4186, 3388 AND 6388 TRACTORS

1

41-1616

PLUG,Cup, 1", Stainless

3шт.

2

1802237C91

COVER

ASSEMBLY - crankcase front (Replaces covers 673928C91 and 687179C91 by also ordering bolt 326-552, nut 329-105, washer 396-21034 and two plugs 217-439), Includes: Ref. 2A & 2B

1шт.

2a

367572R1

INDICATOR

POINTER - timing

1шт.

2b

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket, 1/2 inch PT (Replaces plug 444705), not illustrated

2шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

2шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

(Replaces bolt 25654R1) Hex, 5/16"-18 x 1 1/2", G8

2шт.

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

(Replaces bolt 25234R1) Hex, 5/16"-18 x 2 1/4", G8

7шт.

329-105

NUT,5/16"-18, G8

(Replaces nut 25520R1) 5/16"-18, G8

1шт.

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8 (Replaces bolt 25678R1)

3шт.

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

1шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

(Replaces bolt 24875R1) Hex, 5/8"-11 x 2", G8

2шт.

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

(Replaces bolt 24878R1) Hex, 5/8"-11 x 2 3/4", G8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

15шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

- flat, 21/32 x 1-5/16 x 61/64 inch, hardened

4шт.

3

675813C2

GASKET,0.79mm Thk

- crankcase front cover

1шт.

4

675811C1

PLATE

- crankcase front

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch (Replaces bolt 9409011)

4шт.

5

675812C2

GASKET

- crankcase front plate

1шт.

6

675816C2

GASKET,0.79mm Thk

- injection pump access cover

1шт.

7

675814C91

COVER

- injection pump access

1шт.

329-105

NUT,5/16"-18, G8

(Replaces nut 25520R1) 5/16"-18, G8

3шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

326-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 8

(Replaces bolt 26057R1) Hex, 5/16"-18 x 3 1/2", G8

1шт.

326-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

(Replaces bolt 26043R1) Hex, 5/16"-18 x 3 3/4", G8

3шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

9шт.

8

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

10

683079C1

NUT

- seal tachometer drive, not required for 186 hydrostatic tractors and 1440, 1460 and 1480 combines

1шт.

11

671806C1

DRIVE

- tachometer adapter, not required for 186 hydrostatic tractors and 1440, 1460 and 1480 combines

1шт.

12

363660R1

CLIP

CLAMP - cable

1шт.

13

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT, used to plug tachometer drive adapter hole, used with 986, hydro 186, 1486, 1586 and 5088 tractors and 1440, 1460 and 1480 combines

1шт.

14

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug, used with plug 217-439, item 13

1шт.
