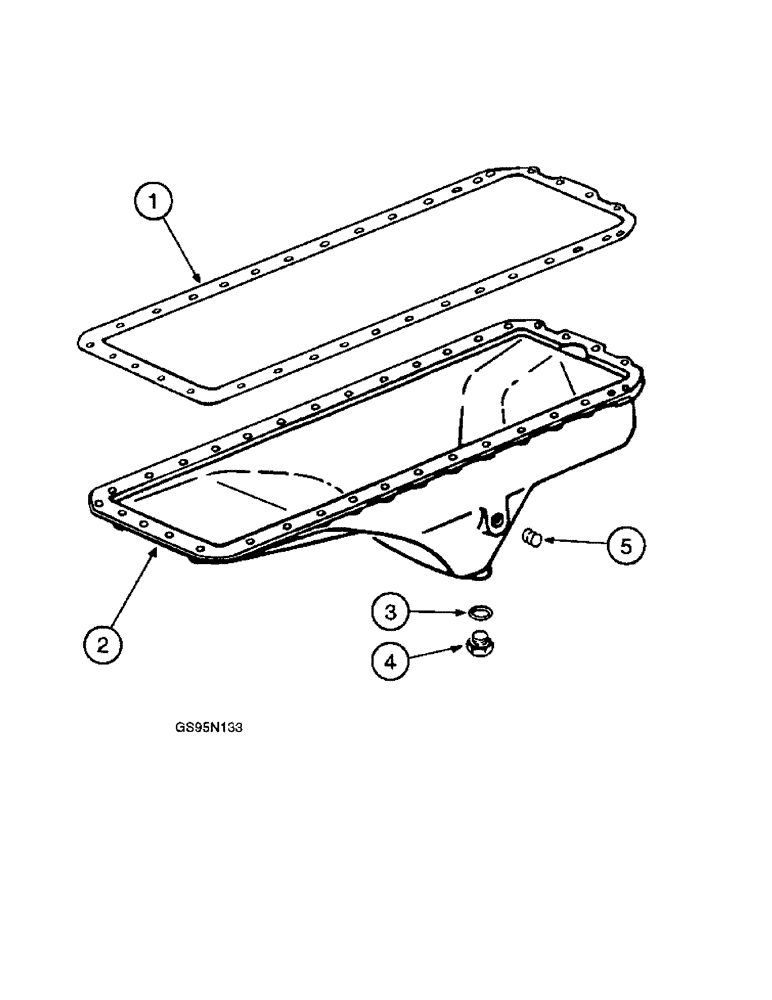

Запчасти Case IH DT-429 (9-06) - CRANKCASE OIL PAN

1

341391R1

GASKET

- oil pan

1шт.

2

607336C11

PAN ASSEMBLY - crankcase oil, Includes: Ref. 3 - 5

1шт.

3

3405HA

GASKET

- oil pan drain plug

1шт.

4

688067C1

PLUG

- crankcase oil pan drain (Replaces plug 445096)

1шт.

5

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex socket, 3/4 inch PT (Replaces plug 9409949)

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

31шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

31шт.
