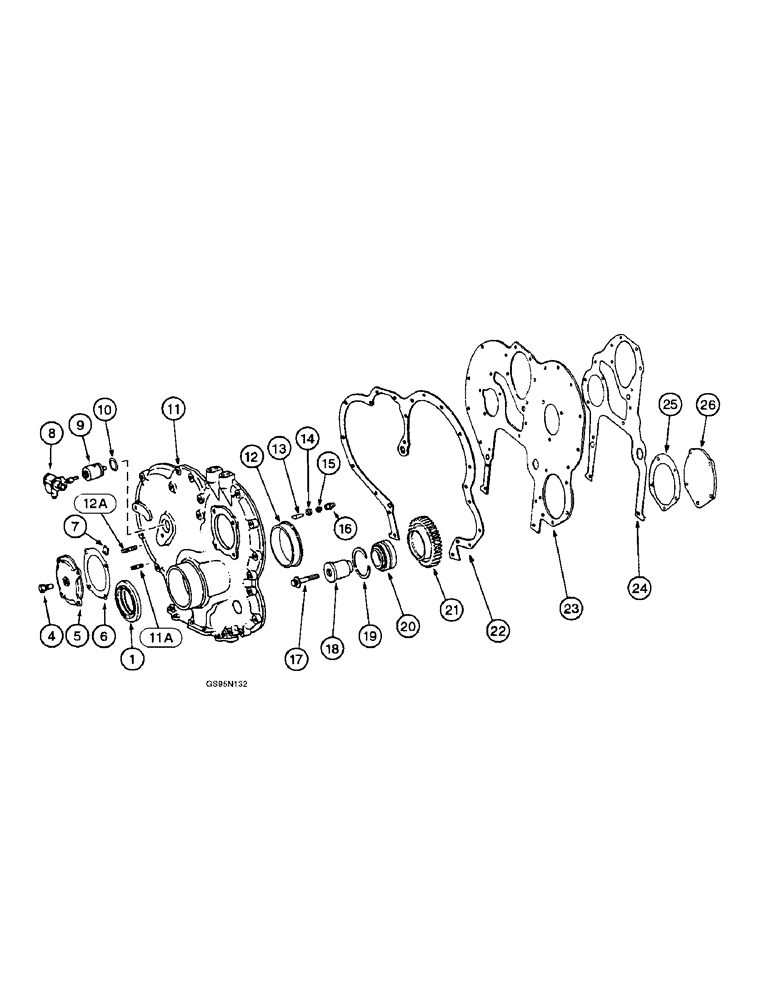

Запчасти Case IH DT-429 (9-04) - CRANKCASE FRONT COVER AND IDLER GEAR

1

346738R91

SEAL

- crankshaft oil, no longer available

1шт.

4

606792C91

BUTTON

- thrust

1шт.

5

341521R1

COVER - injection pump gear

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF (Replaces nut 103026)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

6

326582R2

GASKET

- injection pump gear cover

1шт.

7

344004R1

FLANGE - tachometer adapter, no longer available

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF (Replaces nut 103026)

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

673185C1

O-RING

- tachometer adapter (Replaces O-ring 619218C1)

1шт.

8

606968C91

ANGLE

DRIVE - tachometer, no longer available

1шт.

9

607337C41

BODY - tachometer drive adapter, no longer available

1шт.

10

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Tachometer body -214, 70 Duro, .984" ID x .139" Thk

1шт.

607335C21

COVER ASSEMBLY - crankcase front, Includes: Ref. 11 - 12A

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - crankcase, order cover assembly 607335C21

1шт.

11a

273050R1

STUD

- injection pump cover

4шт.

12

250908R1

DEFLECTOR - crankcase front cover, no longer available

1шт.

12a

24909D

STUD - tachometer flange

1шт.

144001

PLUG - square socket head, 1-1/4 PT inch, no longer available

2шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

10шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Replaces bolt 179850)

2шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Replaces bolt 179851) Hex, 3/8"-16 x 3", G5

5шт.

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch (Replaces bolt 179860)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

17шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

2шт.

13

326623R2

TUBE - gear jet spray, no longer available

1шт.

14

278041R1

NUT

- gear jet

1шт.

15

278040R2

BUSHING

SLEEVE - gear jet

1шт.

16

278039R1

UNION

CONNECTOR - gear jet

1шт.

17

332393R1

BOLT (SPREADER)

BOLT - idler gear

1шт.

18

326625R1

SHAFT - idler gear, no longer available

1шт.

19

252862R1

RING

- idler gear snap

1шт.

20

610300C91

TAPERED BEARING

- idler gear (Replaces bearing 606513C91)

1шт.

21

343175R1

GEAR

- idler (Replaces gear 326624R1)

1шт.

22

607464C1

GASKET

- crankcase front cover

1шт.

23

326621R31

PLATE - crankcase front cover, no longer available

1шт.

674295C1

NUT - spline, no longer available

5шт.

24

326622R2

GASKET

- front plate, no longer available

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

7шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

7шт.

25

326831R1

GASKET - cover

1шт.

26

326830R1

COVER - hydraulic pump hole, no longer available

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Replaces bolt 179850)

3шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

5шт.
