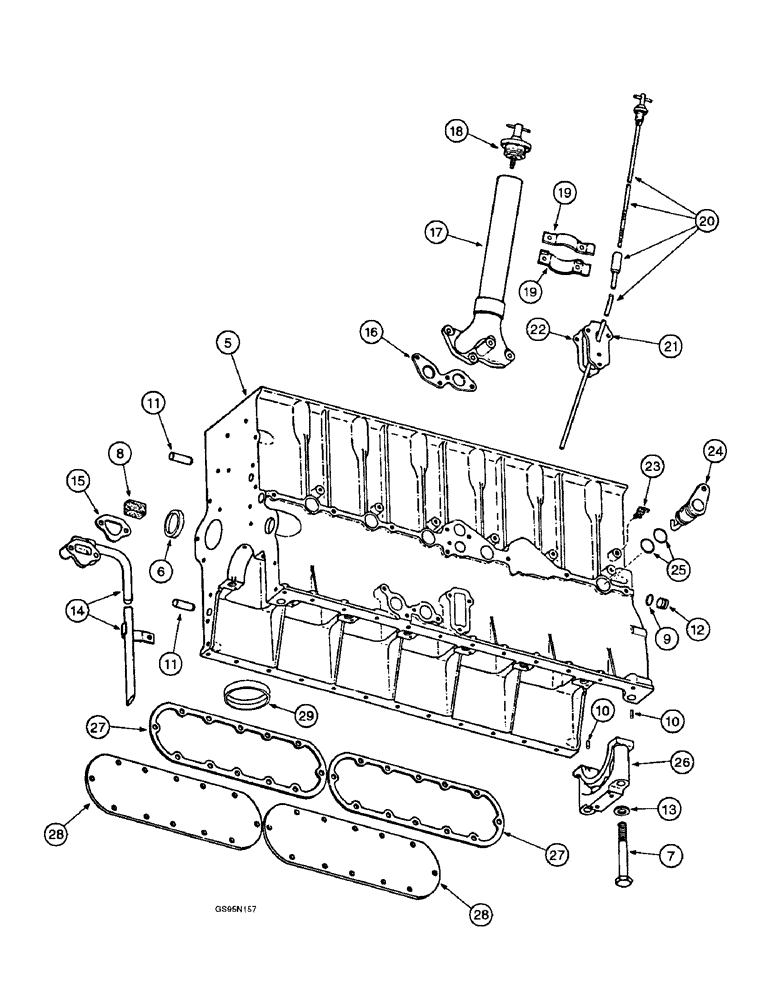

Запчасти Case IH DT-429 (9-02) - CRANKCASE AND RELATED PARTS

670542C91

CRANKCASE

ASSEMBLY - will work for crankcase 341527R94, no longer available

1шт.

5

NSS

NOT SOLD SEPARAT

CRANKCASE - order crankcase assembly 670542C91

1шт.

6

326619R1

BEARING

- camshaft front

1шт.

6

326620R1

JOURNAL

BEARING - camshaft intermediate and rear

6шт.

7

326-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

Main bearing (Replaces bolt 25699R1) Hex, 3/4"-10 x 6 1/2", G8

14шт.

NSS

NOT SOLD SEPARAT

CAP - crankcase, order crankcase assembly 670542C91

7шт.

8

328763R1

ELEMENT

- breather, no longer available

1шт.

9

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

(Replaces O-ring 352221R1) -113, 70 Duro, .549" ID x .103" Thk

2шт.

10

37-158

DOWEL,5/16" x 1/2"

PIN - dowel, 5/16 x 1/2 inch, main bearing cap (Replaces pin 19842R1)

14шт.

11

19843R1

PIN - dowel, 5/8 x 1-3/4 inch, crankcase front and rear, no longer used

4шт.

37-1610

PIN,3/8" x 5/8"

- dowel, 3/8 x 3/4 inch, hardened (Replaces pin 20031R1)

2шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 445684)

1шт.

50410DA

PLUG

- hex, 1/8 inch PT

1шт.

12

326618R1

PLUG - oil gallery, no longer available

2шт.

326864R2

PLUG - crankcase, no longer available

1шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex socket, 3/4 inch PT (Replaces plug 9409949)

1шт.

13

39422D

WASHER

- bearing cap bolt

14шт.

14

612071C11

TUBE - breather

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 179843)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

15

326647R1

GASKET

- breather tube elbow, no longer available

1шт.

16

326962R1

SEAL ASSY.

GASKET - oil filler tube

1шт.

17

332206R91

TUBE - oil filler

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

413-460

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

2шт.

18

303761R91

COVER

CAP - oil filler

1шт.

19

337310R1

CLIP

- oil level gauge to filler, no longer available

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

2шт.

20

607344C91

GAUGE - oil level, no longer available

1шт.

21

326807R11

TUBE - oil level gauge, no longer available

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

22

326809R1

GASKET - oil level gauge tube flange, no longer available

1шт.

23

148344

VALVE

COCK - water jacket drain, 1/4 inch, type C, no longer available

1шт.

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - pipe, 3/8 inch male x 1/4 inch female

1шт.

24

330201R12

TUBE

- piston cooling, no longer available

6шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

6шт.

25

601141C1

GASKET

O-RING - 1-1/16 x 1-1/4 x 3/32 inch

12шт.

26

349087R2

CAP - main bearing, partially finished, see service manual

1шт.

27

332214R1

GASKET

- push rod cover

2шт.

28

326642R1

COVER - push rod, no longer available

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

24шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

24шт.

29

615467C2

BUSHING

INSERT - crankcase service (Replaces insert 609036C1)

1шт.
