Запчасти Case IH DT-429 (9-70) - FAN BEARING HOUSING, PULLEY, AND IDLER

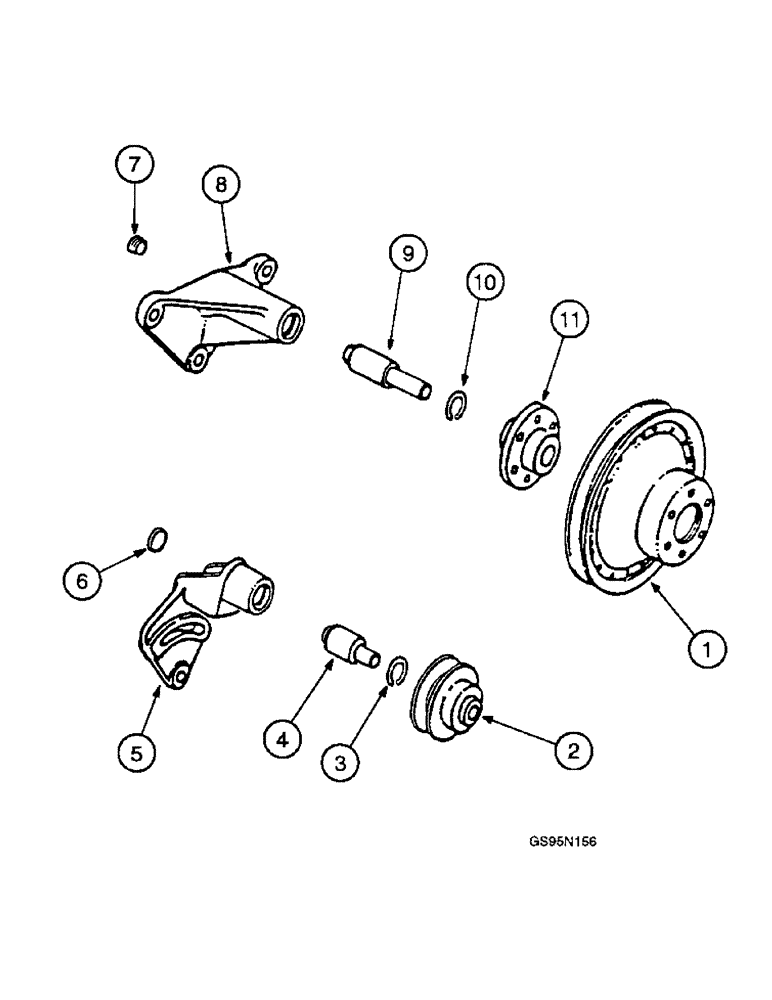

Схема запчастей Case IH DT-429 - (9-70) - FAN BEARING HOUSING, PULLEY, AND IDLER
4
7
6
9
3
11
8
5
10
2
1

Артикул

Название

Примечание

Количество

1

607330C1

PULLEY - fan, no longer available

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

6шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

2

607333C1

PULLEY

- idler, no longer available

1шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch (Replaces screw 179862)

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

1шт.

138493

WASHER

- lock, external tooth, 7/16 inch (Replaces washer 114607)

1шт.

493-21046

LOCK WASHER,Int Tooth, 7/16"

WASHER - lock, internal tooth, 7/16 inch (Replaces washer 131718)

1шт.

3

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , idler 1.188", Int, #118

1шт.

4

606164C91

BALL BEARING,0.6267" ID x 1.1811" OD x 2.72"

- idler (Replaces bearing 609091C91)

1шт.

5

607332C1

BRACKET - fan belt, no longer available

1шт.

6

172547

PLUG,Exp, 1 1/16"

- expansion, 1-1/16 inch, no longer available

1шт.

7

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex socket, 3/4 inch PT (Replaces plug 9409949)

1шт.

8

607327C1

HOUSING - fan bearing, no longer available

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 179845)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

9

324117R91

SHAFT

- fan, includes bearing, no longer available

1шт.

10

239621R1

RING, SNAP,1.50", Int, #150

no longer available 1.50", Int, #150

1шт.

11

607328C11

HUB

- fan pulley, no longer available

1шт.

Выбрано товаров: 19
