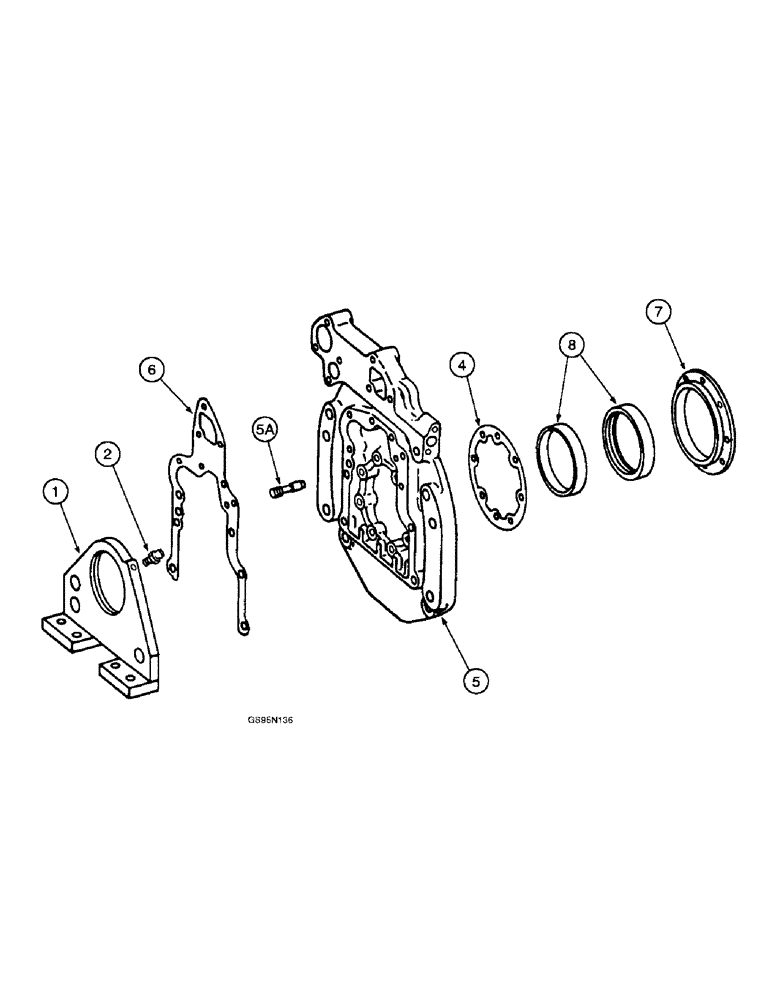

Запчасти Case IH DT-429 (9-68) - FRONT ENGINE SUPPORT, REAR MOUNTING PLATE AND CONNECTIONS

1

607342C11

SUPPORT - engine front

1шт.

2

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 1-1/4 inch (Replaces fitting 126121)

1шт.

4

332303R1

SEAL

- seal face plate

1шт.

5

607340C21

PLATE ASSEMBLY - crankcase rear mounting, no longer available, Includes: Ref. 5A

1шт.

5a

607341C1

PIN - dowel, 1/2 x 2-3/4 inch, no longer available

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 179845)

6шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

1шт.

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Replaces screw 179889) Hex, 1/2"-13 x 2", G5

6шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch (Replaces screw 271614)

6шт.

271608

PIVOT

SCREW - hex, 3/4 NC x 1-5/8 inch, no longer available

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

7шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

6шт.

6

332300R1

GASKET

- mounting plate

1шт.

7

601743C1

RETAINER

- oil seal

1шт.

7a

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

(Replaces bolt 214168R1), Not illustrated Locking, 5/16"-18 x 1", G8

8шт.

8

1809964C92

OIL SEAL

KIT - crankshaft rear oil seal and wear sleeve service (Replaces service kits 609333C93 and 691631C91)

1шт.

678555C91

CONVERSION KIT

KIT - conversion rear oil seal, will work for 609332C94 (Replaces kit 678530C91), Includes: Ref. 7 - 8

1шт.
