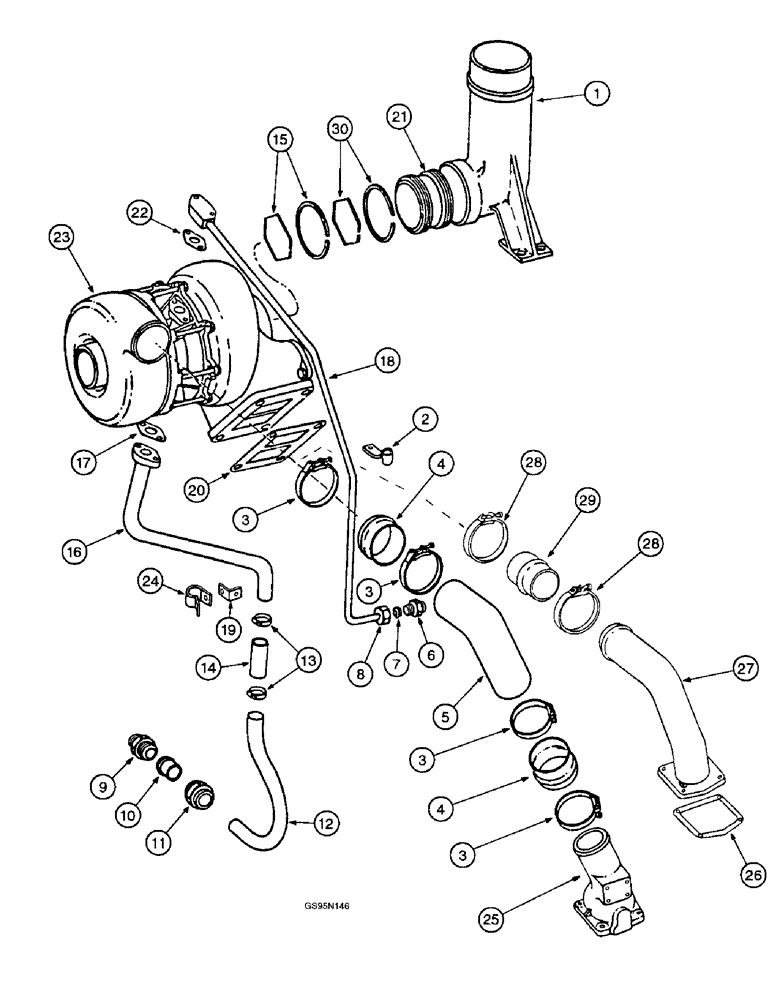

Запчасти Case IH DT-429 (9-64) - TURBOCHARGER AND CONNECTIONS

1

601149C1

ELBOW - exhaust outlet, no longer available

1шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, (Replaces nut 9413980) 3/8"-24, GC

4шт.

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex, 3/8 NF x 1-3/4 inch (Replaces bolt 181376)

4шт.

2

328990R1

CLIP - turbocharger oil inlet tube

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

1шт.

3

615139C1

CLAMP

- air crossover hose, engine serial numbers prior to 11140, no longer available

4шт.

4

601145C1

HOSE

- air crossover, engine serial numbers prior to 11140, no longer available

2шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

5

701132C1

TUBE - air crossover, engine serial numbers prior to 11140, order 670956C91, item 27, and 670958C1, item 29

1шт.

6

277736R1

CONNECTOR, ELEC

CONNECTOR - oil inlet tube, no longer available

1шт.

7

277737R1

SLEEVE

- oil inlet tube

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

8

277738R1

NUT

- oil inlet tube

1шт.

9

324693R1

ELBOW UNION

CONNECTOR - turbocharger oil drain hose, no longer available

1шт.

10

333754R1

SLEEVE CYLINDER

SLEEVE - turbocharger oil drain hose, no longer available

1шт.

11

333755R1

NUT

- turbocharger oil drain hose, no longer available

1шт.

12

328682R1

HOSE ASSY.

HOSE - turbocharger oil drain, 2-1/2 inch (6.35 mm) long, 1 inch ID, 1-1/2 inch OD, no longer available, purchase similar hose locally

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. (Replaces clamp 33710R91) #16, 0.81/1.50 Type F Worm

2шт.

14

337192R2

HOSE ASSY.

TUBE - turbocharger drain lower

1шт.

15

347184R91

SEALING RING

SEAL - exhaust sleeve, engine serial numbers prior to 11140, no longer available

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

15

702299C1

ASSEMBLY

SEAL - exhaust sleeve, engine serial number 11140 and after

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

16

601148C11

TUBE - turbocharger oil drain upper, engine serial numbers prior to 11140, no longer available

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

16

701134C1

TUBE

- oil drain upper, engine serial number 11140 and after, no longer available

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch (Replaces bolt 179842)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

17

253664R2

GASKET

- oil drain tube flange, engine serial numbers, Serial Range: prior-11140

1шт.

17

1342827C1

SHIELD

GASKET - oil drain tube, engine serial number 11140 and after (Replaces gasket 670079C3)

1шт.

18

601146C12

TUBE - oil inlet, engine serial numbers prior to 11140, no longer available

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 179845)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

18

701133C1

TUBE - oil inlet, engine serial number 11140 and after, no longer available

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

19

140587

CLIP - oil drain tube, no longer available

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

20

265429R1

GASKET

- turbocharger, engine serial numbers, Serial Range: prior-11140

1шт.

20

1342826C1

GASKET

- turbocharger, engine serial number 11140 and after (Replaces gasket 670073C1)

1шт.

21

345382R1

PIN

SLEEVE - turbocharger exhaust, engine serial numbers prior to 11140, no longer available

1шт.

21

670080C1

SLEEVE CYLINDER

SLEEVE - turbocharger exhaust, engine serial number 11140 and after, no longer available

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

22

253664R2

GASKET

- flange, engine serial numbers, Serial Range: prior-11140

1шт.

22

1342834C1

GASKET

- turbocharger oil inlet tube, oil inlet tube flange, engine serial number 11140 and after (Replaces gasket 253660R1)

1шт.

23

900286C92

TURBOCHARGER ASSEMBLY - engine serial numbers prior to 11140, parts list Figure 9-60

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

23

A184785

TURBOCHARGER

ASSEMBLY - engine serial number 11140 and after, parts list Figure 9-62

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

23

749267C92

REMAN-TURBOCHARGER

4100, 4156

1шт.

23

1928007C1

CORE-TURBOCHARGER

Return Part Number

1шт.

24

337216R1

SUPPORT - turbocharger oil drain clip, no longer available

1шт.

25

601143C2

ELBOW - air intake, engine serial numbers prior to 11140, no longer available

1шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

1шт.

26

328767R1

GASKET

- air inlet elbow, no longer available

1шт.

27

670956C91

TUBE - air crossover, engine serial number 11140

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

28

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable, Engine S/N 11140 and after (Replaces clamp 274087R91) #28, 1.31/2.25 Type F Worm

1шт.

29

670040C1

LARGE HOSE

HOSE - air crossover, 2-1/2 inch (63.5 mm) long, engine serial number 11140 and after, if used

1шт.

Included in Solar Turbocharger Conversion Kit P/N 670713C92

1шт.

29

670958C2

HOSE,1.96" ID x 4.00", SAE J200

Air Crossover, Engine Serial Number 11140 and after, No Longer Available 1.96" ID x 4.00", SAE J200

1шт.

30

347184R91

SEALING RING

SEAL - exhaust sleeve, no longer available

1шт.

670713C92

PACKAGE

KIT - solar turbocharger conversion, order components, Includes: Ref. 2, 4, 7, 15, 16, 18, 21, 23 7 29 (As Indicated)

1шт.
