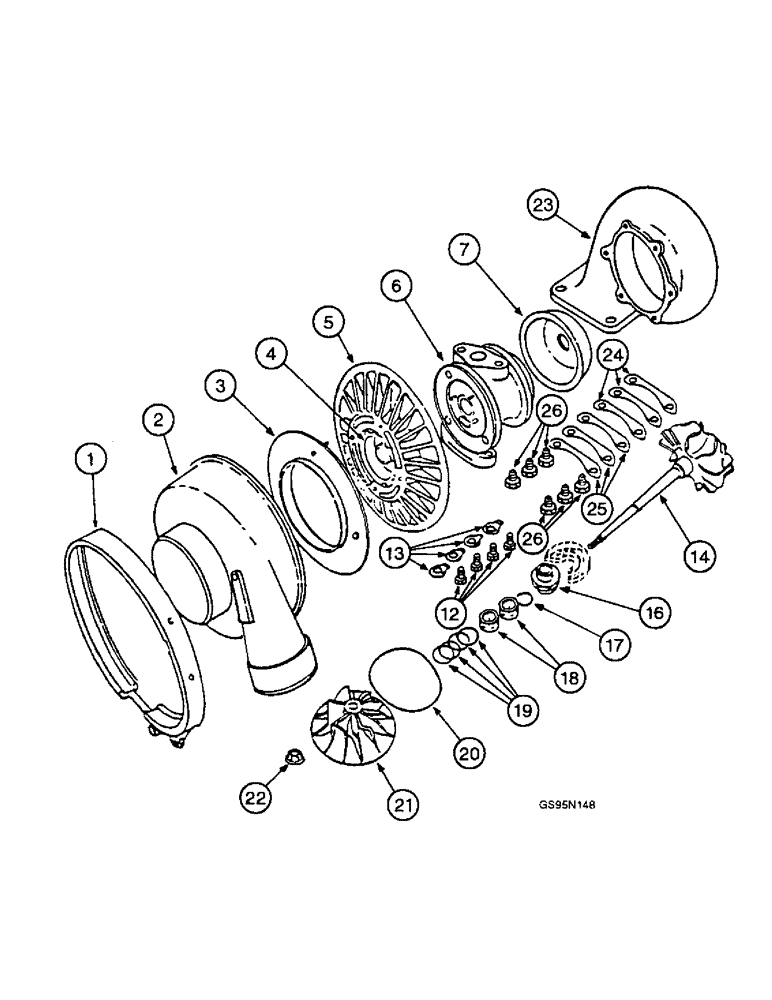

Запчасти Case IH DT-429 (9-62) - TURBOCHARGER, ENGINE SERIAL NUMBER 11140 AND AFTER

702300C91

TURBOCHARGER

ASSEMBLY - no longer available, order turbocharger assembly 675795C91

1шт.

675795C91

TURBOCHARGER

ASSEMBLY - engine, no longer available, order turbocharger assembly A184785 (Replaces turbocharger assembly 702300C91), Includes: Ref. 1 - 26

1шт.

749267C92

REMAN-TURBOCHARGER

1шт.

1928007C1

CORE-TURBOCHARGER

Return Number

1шт.

A184785

TURBOCHARGER

ASSEMBLY - engine, new (Replaces turbocharger assemblies 675795C91 and 684240C92), Includes: Ref. 1 - 26

1шт.

749267C92

REMAN-TURBOCHARGER

4100, 4156

1шт.

1928007C1

CORE-TURBOCHARGER

Return Part Number

1шт.

1

702327C91

CLAMP

- turbocharger

1шт.

2

619377C1

HOUSING

- compressor, no longer available

1шт.

3

619378C1

SPARE PART

DIFFUSER - compressor, no longer available

1шт.

680087C92

HOUSING

ASSEMBLY - center (Replaces housing assembly 702861C91), Includes: Ref. 4 - 22A

1шт.

4

615747C1

SPRING WASHER

SPRING - collar

1шт.

5

627772C91

PLATE

BACKPLATE - impeller

1шт.

6

684360C92

KIT

HOUSING - center (Replaces housing 627783C1)

1шт.

7

NSS

NOT SOLD SEPARAT

SHROUD - turbine wheel, order housing assembly 702861C91

1шт.

12

25480R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 8

- hex, 1/4 NC x 5/8 inch, grade 8, no longer available

4шт.

13

1809617C1

BOLT,Hex, 1/4" x 5/8", Gr 8

PLATE - backplate lock (Replaces plates 343846R1 and 625675C1)

2шт.

14

A44841

WHEEL

SHAFT - turbine (Replaces shaft 702625C2)

1шт.

16

615745C2

COLLAR

- thrust (Replaces collar 615745C1)

1шт.

17

A44828

RING

- piston (Replaces piston ring 615746C1)

1шт.

18

A44826

BEARING

- housing journal (Replaces bearings 680444C1 and 687965C1)

2шт.

19

A44827

RING

- bearing retainer (Replaces ring 627774C1)

4шт.

20

A44833

RING

- seal (Replaces ring 343847R1)

1шт.

21

619376C1

IMPELLER

WHEEL - impeller, no longer available

1шт.

22

615741C2

NUT

- impeller lock

1шт.

22a

619010C1

RING

- piston, not illustrated

1шт.

23

615738C1

HOUSING

- turbine

1шт.

24

684245C1

CLAMP

- housing plate (Replaces clamp 615740C1)

1шт.

25

615739C1

PLATE, LOCKING

PLATE - housing lock

1шт.

26

684246C1

BOLT

- housing lock plate, hex, 5/16 NC x 1/2 inch

6шт.
