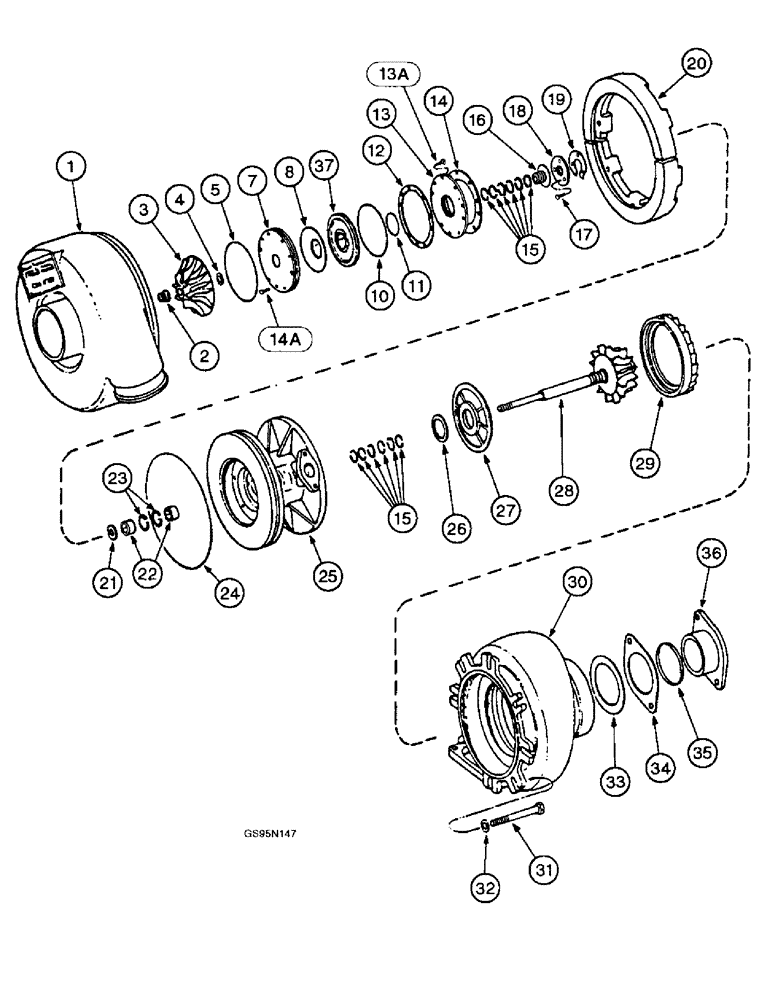

Запчасти Case IH DT-429 (9-60) - TURBOCHARGER, ENGINE SERIAL NUMBERS PRIOR TO 11140

900286C92

TURBOCHARGER ASSEMBLY - engine, no longer available, Includes: Ref. 1 - 37

1шт.

1

900017C91

HOUSING- compressor

1шт.

900041C1

NUT - hex, 3/8 inch NC, no longer available

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

2шт.

2

900030C1

NUT - lock, compressor wheel

1шт.

Included in Core Assembly P/N 900305C91

1шт.

3

900032C1

WHEEL - compressor

1шт.

Included in Core Assembly P/N 900305C91

1шт.

4

900116C1

SHIM - compressor wheel, 0.002 inch, no longer available

1шт.

Included in Core Assembly P/N 900305C91

1шт.

4

900012C1

SHIM - compressor wheel, 0.005 inch, no longer available

1шт.

4

900115C1

SHIM - compressor wheel, 0.010 inch, no longer available

1шт.

900071C92

BRAKE ASSEMBLY - compressor wheel, no longer available, Includes: Ref. 5 - 13A

1шт.

Included in Core Assembly P/N 900305C91

1шт.

5

900316C1

O-RING - brake housing, no longer available

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - piston, order brake assembly 900071C92

1шт.

8

900078C1

WASHER - Belleville spring piston

1шт.

10

900080C1

O-RING - brake

1шт.

11

900079C1

GASKET

O-RING - brake cover

1шт.

12

900019C2

GASKET - brake cover

1шт.

13

900074C2

PLATE - brake cover, no longer available

1шт.

13a

900081C2

SCREW - brake cover plate

3шт.

14

900020C2

GASKET - brake cover, no longer available

1шт.

Included in Core Assembly P/N 900305C91

1шт.

14a

9000222C2

SCREW - hex, internal, No. 10-32, piston housing, no longer available

6шт.

Included in Core Assembly P/N 900305C91

1шт.

15

900010C1

RING

- sealing, piston type

12шт.

Included in Core Assembly P/N 900305C91

1шт.

16

900029C1

SLINGER - seal

1шт.

Included in Core Assembly P/N 900305C91

1шт.

17

900021C1

SCREW

- hex, internal, No. 10-32, thrust bearing

3шт.

Included in Core Assembly P/N 900305C91

1шт.

18

900046C92

BEARING

- thrust, no longer available

1шт.

Included in Core Assembly P/N 900305C91

1шт.

19

900318C1

SPACER - oil deflector, used only with housing 900016C94

1шт.

Included in Core Assembly P/N 900305C91

1шт.

20

900003C1

RETAINER - compressor housing, saw cut

1шт.

21

900028C1

WASHER - thrust ring

1шт.

Included in Core Assembly P/N 900305C91

1шт.

22

900009C1

BEARING

- core housing

1шт.

Included in Core Assembly P/N 900305C91

1шт.

23

A62966

SNAP RING,1.02", Int, #102

Ring, Snap, , brg (replaces ring 868442R1) 1.02", Int, #102

2шт.

Included in Core Assembly P/N 900305C91

1шт.

24

900018C1

O-RING - housing cover

1шт.

25

900016C94

HOUSING - bearing support, no longer available

1шт.

26

900158C1

SHIM - backplate, 0.005 inch, no longer available

1шт.

Included in Core Assembly P/N 900305C91

1шт.

26

900160C1

SHIM - backplate, 0.010 inch, no longer available

1шт.

26

900160C1

SHIM - backplate, 0.020 inch

1шт.

27

900014C1

PLATE - turbine back, no longer available

1шт.

Included in Core Assembly P/N 900305C91

1шт.

28

900023C91

WHEEL - turbine, no longer available

1шт.

Included in Core Assembly P/N 900305C91

1шт.

29

900296C1

RING - turbine nozzle, no longer available

1шт.

30

900297C1

HOUSING - turbine, no longer available

1шт.

31

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch, turbine housing (Replaces bolt 426444)

8шт.

32

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Turbine housing (Replaces washer 106262) 5/16"

8шт.

33

900164C1

RING - turbine adapter

1шт.

34

900165C1

GASKET - turbine adapter, no longer available

1шт.

35

900166C1

GASKET - turbine adapter, no longer available

1шт.

36

900163C1

ADAPTER - turbine housing, no longer available

1шт.

37

900083C1

PISTON - brake

1шт.

900317C1

COMPOUND - silicone, no longer available

1шт.

900305C91

KIT - core assembly, Includes: Ref. 2, 3, 4, 5, 7, 8, 10, 11, 12, 13, 13A, 14, 14A, 15, 16, 17, 18, 19, 21, 22, 23, 26, 27 & 28 (As Indicated)

1шт.
