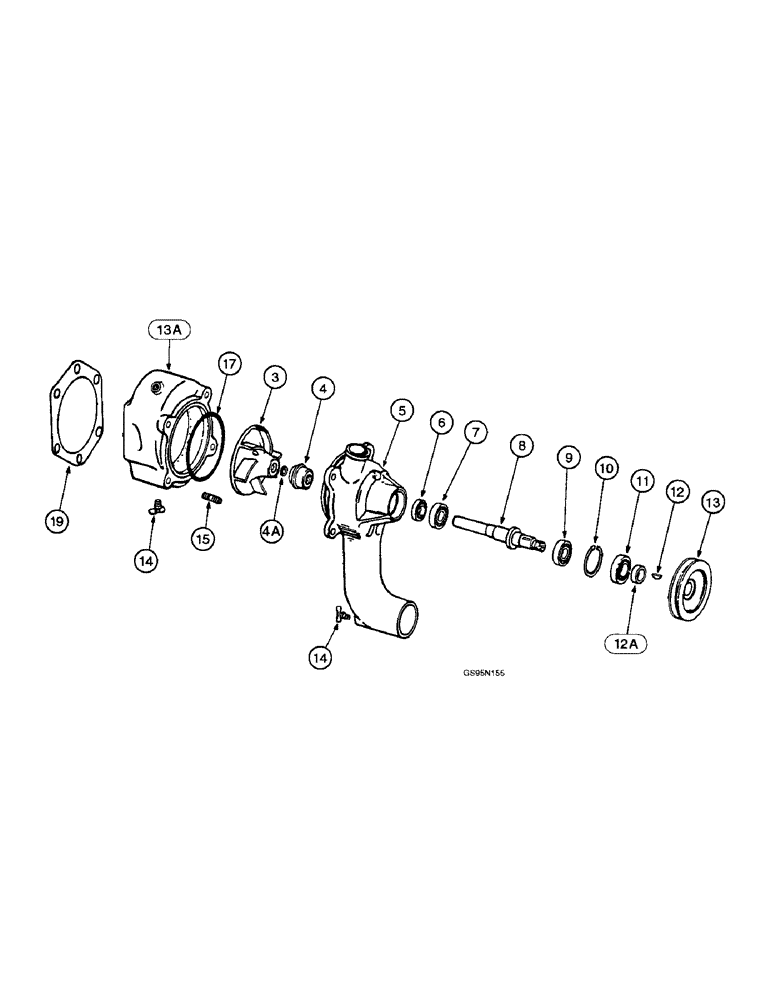

Запчасти Case IH DT-429 (9-58) - WATER PUMP AND PULLEY

1

612106C91

WATER PUMP

PUMP ASSEMBLY - water, not shown, no longer available, Includes: Ref. 3 - 12A

1шт.

3

332304R1

IMPELLER

- water pump, no longer available

1шт.

4

687161C92

KIT

- seal, water pump, Includes: Ref. 4A - 5

1шт.

4a

NSS

NOT SOLD SEPARAT

SEAT - water pump seal, order kit 687161C92

1шт.

4b

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit 687161C92, not illustrated

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - water pump bearing, order pump assembly 612106C91

1шт.

6

338394R91

SEAL

- water pump rear oil (Replaces seal 264532R91)

1шт.

7

ST286

BALL BEARING,17mm ID x 47mm OD x 14mm W

BEARING - ball, water pump shaft rear

1шт.

8

607322C1

SHAFT

- water pump

1шт.

9

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING - ball, water pump shaft front

1шт.

10

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, (Replaces 456736R1) 2.062", Int, #206

1шт.

11

347235R91

SEAL

- oil, water pump shaft, no longer available

1шт.

12

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Used with shaft 607322C1 (Replaces key 124545) #5, 1/8" x 5/8", HT

1шт.

12a

345394R1

BUSHING

RING - wear, water pump seal

1шт.

13

607323C1

PULLEY - water pump, no longer available

1шт.

625338C1

NUT

- stop, 5/8 inch NF, no longer available

1шт.

13a

349255R11

BODY

HOUSING ASSEMBLY - water pump volute, no longer available, Includes: Ref. 14 & 15

1шт.

14

31729D

VALVE

COCK - drain

2шт.

15

273050R1

STUD

- water pump housing volute

4шт.

17

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

-250, 70 Duro, 4.984" ID x .139 Thk (Replaces O-ring 252735R1)

1шт.

19

349254R1

GASKET

- water pump to oil cooler, no longer available

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

6шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

6шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

6шт.

349254R91

KIT - water pump volute field service (Replaces kit 349256R91), Includes: Ref. 13A, 14 & 19

1шт.
