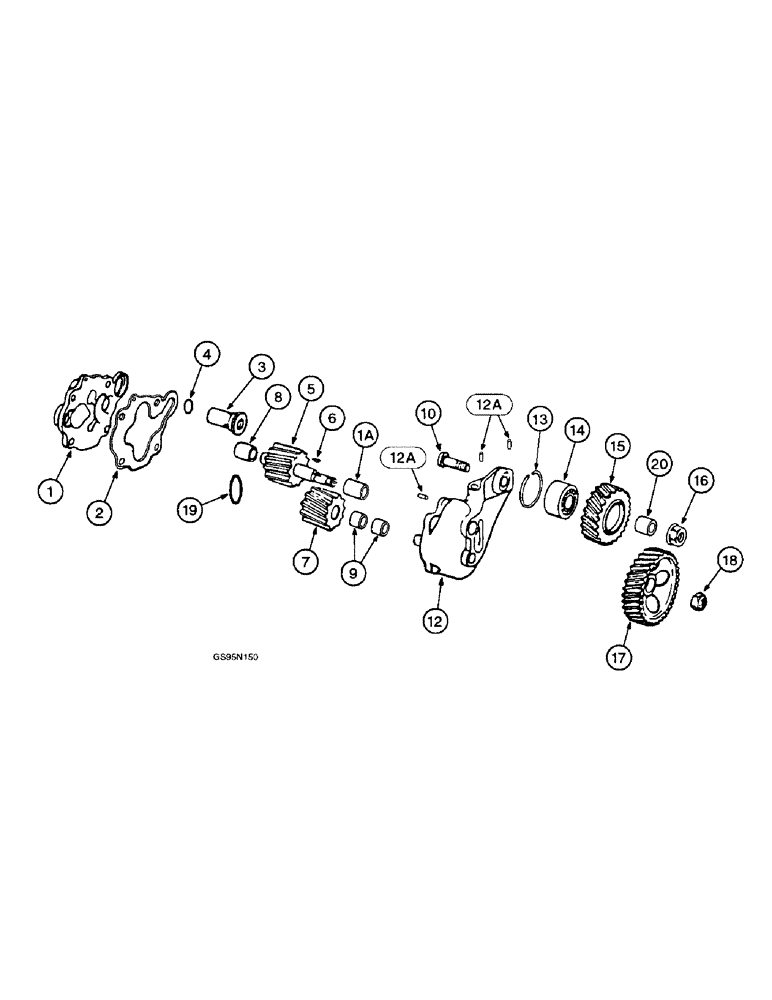

Запчасти Case IH DT-429 (9-54) - OIL PUMP

670275C93

PUMP

ASSEMBLY - oil, no longer used, order pump assembly 691136C91, Includes: Ref. 1 - 20

1шт.

735251C91

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - oil, remanufactured (North America only), component parts do not apply to the remanufactured assembly

1шт.

1928227C1

CORE-ENGINE OIL PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

691136C91

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, new, used with 4100 and 4156 tractors (Replaces pump assembly 670275C93), Includes: Ref. 1 - 20

1шт.

1

349064R11

COVER ASSEMBLY - oil pump, no longer available, Includes: Ref. 1A

1шт.

1a

345292R1

BEARING

BUSHING - oil pump

2шт.

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

(Replaces bolt 24841R1) Hex, 3/8"-16 x 1 1/2", G8

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened (Replaces washer 25534R1)

4шт.

2

349065R1

GASKET

- oil pump cover

1шт.

3

345161R91

VALVE

- safety

1шт.

4

349055R2

RING

O-RING - sealing, in lube oil pump

1шт.

5

326765R12

SHAFT

ASSEMBLY - oil pump drive, Includes: Ref. 5A

1шт.

5a

601905C2

GEAR WHEEL

GEAR - oil pump drive

1шт.

6

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

(Replaces key 124545) #5, 1/8" x 5/8", HT

1шт.

7

326767R21

PINION

GEAR ASSEMBLY - oil pump idler, Includes: Ref. 9

1шт.

9

326768R1

BUSHING

- idler gear

2шт.

10

670277C2

SHAFT

- oil pump drive idler, used with pump assembly 670275C93

1шт.

When ordering shaft 670277C2 or gear 326770R2, also order body 691137C91, ring 513010R1, gear 691135C1, shaft 691128C1, nut 691133C1, bushing 691132C1 and bearing 691177C91.

1шт.

10

691128C1

SHAFT

- oil pump drive idler, used with pump assembly 691136C91

1шт.

When ordering shaft 670277C2 or gear 326770R2, also order body 691137C91, ring 513010R1, gear 691135C1, shaft 691128C1, nut 691133C1, bushing 691132C1 and bearing 691177C91.

1шт.

691137C91

CASE

BODY ASSEMBLY - oil pump

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - oil pump, order body assembly 691137C91, Includes: Ref. 12A - 12C

1шт.

12a

37-148

DOWEL,1/4" x 1/2"

PIN - dowel, 3/8 x 3/4 inch, hardened (Replaces pin 19841R1)

4шт.

12b

345292R1

BEARING

BUSHING - shaft, not illustrated

1шт.

12c

NSS

NOT SOLD SEPARAT

SHAFT - oil pump, order body assembly 691137C91, not illustrated

1шт.

13

376219R1

SNAP RING,1.653, Int, #165

RING - seal, 1.835 inch, retaining, used with pump assembly 670275C93

1шт.

13

100-21200

SNAP RING,2", Int, #200

RING, SNAP, , Used with pump assembly 691136C91 (Replaces ring 513010R1) 2", Int, #200

1шт.

14

51791H

BALL BEARING,0.5906" ID x 1.6535" OD x 0.75"

- idler gear, used with pump assembly 670275C93

1шт.

14

691177C1

BALL BEARING,20mm ID x 52mm OD x 22.23mm W

BEARING - idler gear, used with pump assembly 691136C91

1шт.

15

326770R2

GEAR

- oil pump idler, used with pump assembly 670275C93

1шт.

When ordering shaft 670277C2 or gear 326770R2, also order body 691137C91, ring 513010R1, gear 691135C1, shaft 691128C1, nut 691133C1, bushing 691132C1 and bearing 691177C91.

1шт.

15

691135C1

GEAR

- oil pump drive idler, used with pump assembly 691136C91, no longer available

1шт.

16

625436C1

NUT

- oil pump drive, left-hand thread, used with pump assembly 670275C93, no longer available

1шт.

16

691133C1

NUT

- oil pump drive, left-hand thread, used with pump assembly 691136C91

1шт.

18

625338C1

NUT

- lock, oil pump drive shaft, no longer available

1шт.

19

349055R2

RING

O-RING - oil pump safety valve, 13/16 x 1 x 3/32 inch

1шт.

20

691132C1

BUSHING

- idler shaft, used with pump assembly 691136C91

1шт.
