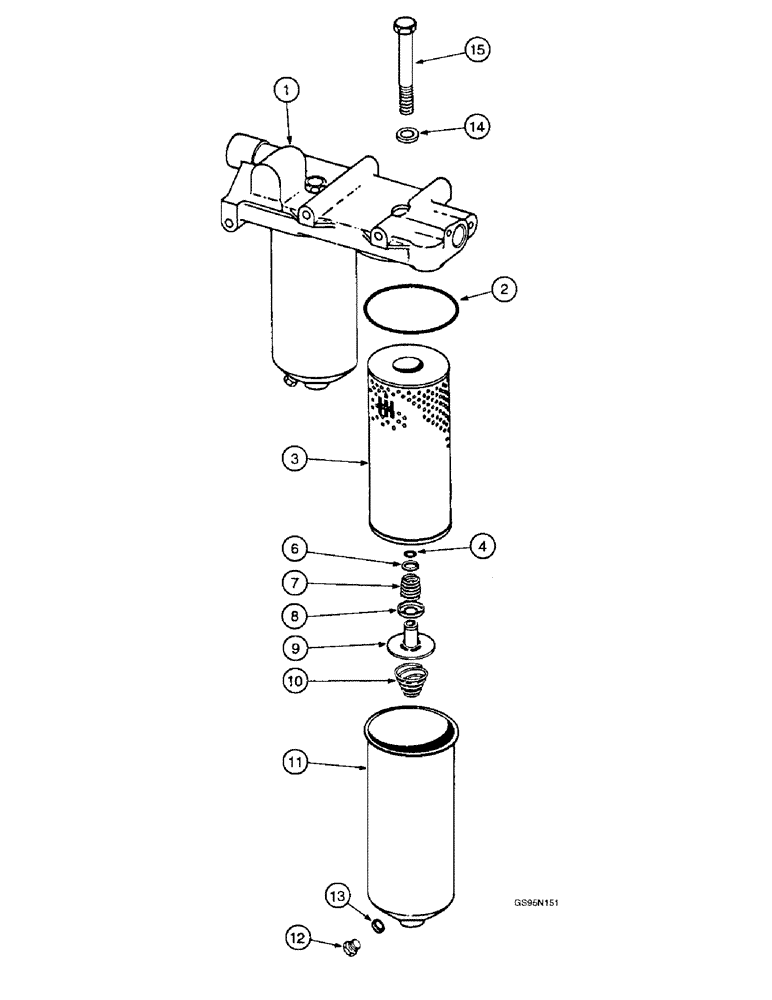

Запчасти Case IH DT-429 (9-52) - LUBRICATING OIL FILTER

1

345443R1

HEADER - oil filter, no longer available

1шт.

221-846

PLUG,Hex Soc, 1"-11 1/2

- hex socket, 1 inch PT (Replaces plug 444679)

1шт.

2

602997C1

GASKET

- oil filter housing

2шт.

3

602998C91

FILTER, ELEMENT

KIT - oil filter element service, includes item 2

2шт.

4

103-1150

SNAP RING,#50, Ext

Ring, Snap, , sealing, oil filter housing retaining bolt (replaces ring 324653R1) #50, Ext

2шт.

312887R91

LOCK VALVE

VALVE ASSEMBLY - by-pass, will work for 332579R91, Includes: Ref. 6 - 9

2шт.

6

100-1875

SNAP RING,#75, Ext

Ring, Snap, , by-pass valve spring (replaces ring 154665R1) #75, Ext

2шт.

7

308458R1

VALVE SPRING

SPRING - by-pass valve, no longer available

2шт.

8

NSS

NOT SOLD SEPARAT

CUP - by-pass valve spring, order valve assembly 312887R91

2шт.

9

NSS

NOT SOLD SEPARAT

VALVE - by-pass, order valve assembly 312887R91

2шт.

10

308422R1

VALVE SPRING

SPRING - element retainer

2шт.

11

345438R92

BOWL

HOUSING - oil filter, no longer available

2шт.

12

445078

PLUG

- hex, 1/2 inch NF, oil filter drain

2шт.

13

119937

GASKET,Copper, 1/2" x 11/16"

WASHER - oil filter drain plug

2шт.

14

345441R1

WASHER

- retaining bolt, oil filter housing

2шт.

15

345440R1

BOLT (SPREADER)

BOLT - retaining, oil filter housing

2шт.
