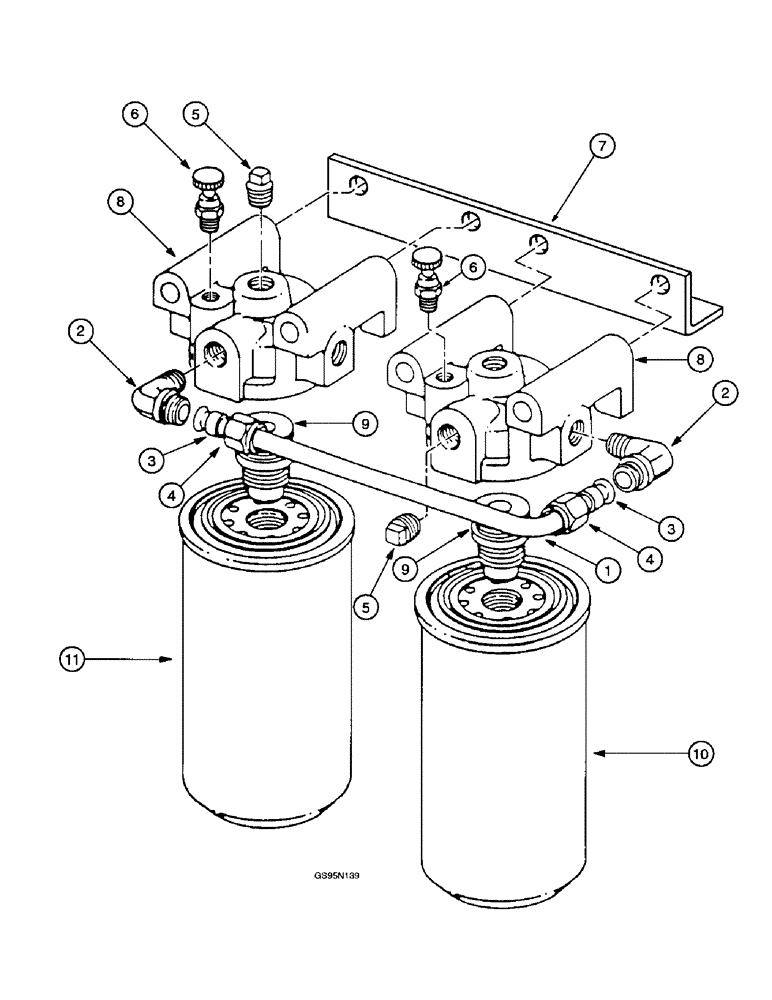

Запчасти Case IH DT-429 (9-46) - FUEL FILTERS, SPIN-ON TYPE

1

670256C11

TUBE - primary filter to final filter

1шт.

2

222-4047

ELBOW

- primary filter outlet and injection pump inlet, 90 degree compression x 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)

2шт.

3

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1)

2шт.

4

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)

2шт.

5

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 444655)

4шт.

6

39677DA

VALVE

- bleeder

2шт.

7

REF

INSTRUCTION

BRACKET - filter mounting, see Figure 9-34 or 9-38

1шт.

8

612277C2

FILTER HEAD

HEADER ASSEMBLY - filter, Includes: Ref. 9

2шт.

9

612275C1

RETAINER - filter, no longer available

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

4шт.

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch (Replaces bolt 433114)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

4шт.

10

702253C1

FILTER CARTRIDGE

FILTER - final fuel, will work for 702142C1

1шт.

11

A184773

SEPARATOR

FILTER - primary fuel (Replaces filter 625627C1)

1шт.
