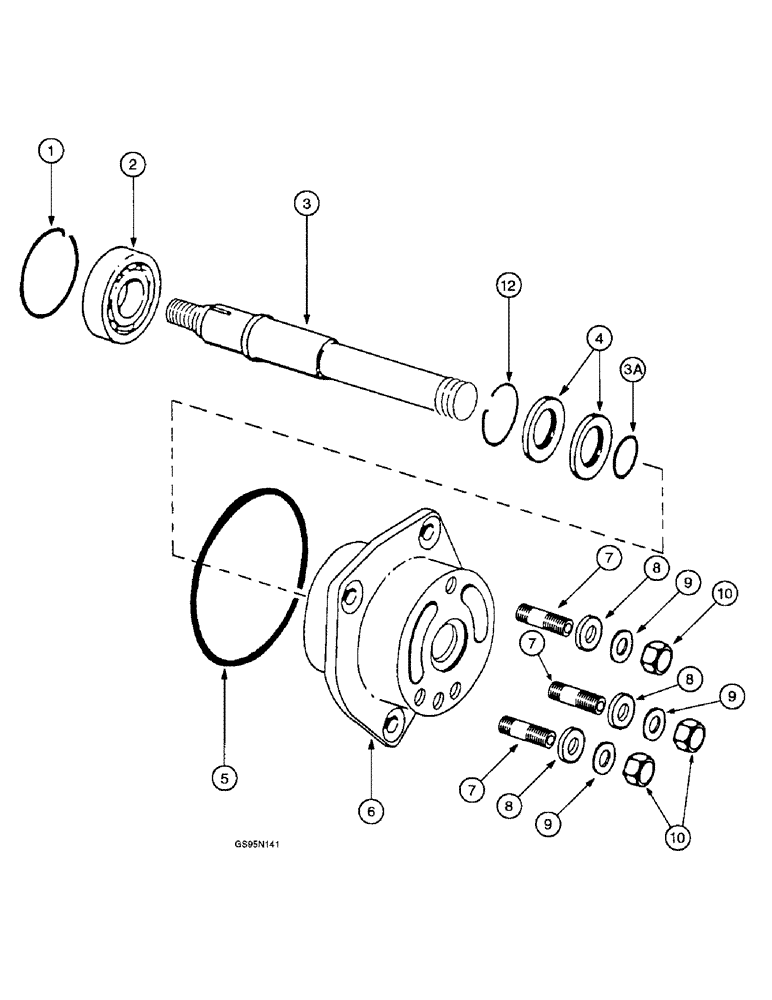

Запчасти Case IH DT-429 (9-44) - FUEL INJECTION PUMP DRIVE, ROOSA MASTER

1

346876R1

BUSHING

RING - bearing retainer

1шт.

2

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING - drive shaft (Replaces bearing 346893R91)

1шт.

3

606832C91

SHAFT

ASSEMBLY - drive, Includes: Ref. 3A

1шт.

3a

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Drive shaft

1шт.

4

372762R91

OIL SEAL

SEAL - drive shaft

2шт.

5

346895R1

WIPER SEAL

SEAL - mounting adapter

1шт.

6

619762C1

COUPLING

ADAPTER - mounting (Replaces adapter 613990C1)

1шт.

7

324688R1

STUD

- mounting

3шт.

8

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch, mounting stud (Replaces washer 469668R1)

3шт.

9

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER - lock, internal tooth, 3/8 inch (Replaces washer 115549)

3шт.

10

425-106

NUT,3/8"-16, Cl 5

Mounting stud (Replaces nut 346896R1) 3/8"-16, G5

3шт.

12

100-21137

SNAP RING,1.375", Int, #137

Ring, Snap, , seal (Replaces 273026R1) 1.375", Int, #137

1шт.
