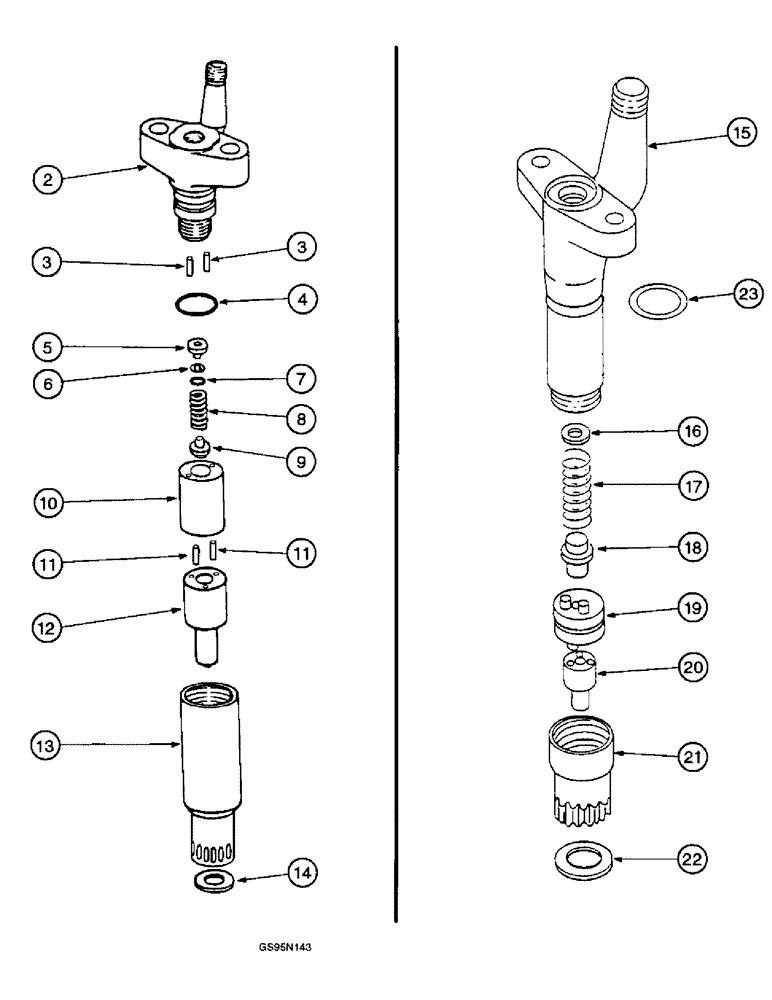

Запчасти Case IH DT-429 (9-42) - INJECTION NOZZLE, ENGINE SERIAL NUMBERS PRIOR TO 10028

749083C91

REMAN-INJECT NOZZLE

NOZZLE ASSEMBLY - injection, IH, remanufactured (North America only), no longer available, order nozzle assembly 610716C91 below, Prior to Engine Serial Numbers 10028, Includes: Ref. 2 - 14

6шт.

2

377273R11

BODY ASSEMBLY - nozzle and holder, no longer available, Includes: Ref. 3

1шт.

3

19855R1

PIN,7/64" x 3/8", Coiled

2шт.

4

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

(Replaces O-ring 364879R1) -118, 70 Duro, .862" ID x .103" Thk

1шт.

5

326694R1

SEAT

- nozzle spring, upper

1шт.

6

326688R1

SHIM

- nozzle spring wear

1шт.

7

326689R1

SHIM

- nozzle adjusting, 0.002 inch

1шт.

7

326690R1

SHIM

- nozzle adjusting, 0.003 inch

1шт.

7

326691R1

SHIM

- nozzle adjusting, 0.005 inch

1шт.

7

326692R1

SHIM

- nozzle adjusting, 0.010 inch

1шт.

8

326687R1

SPRING

- nozzle

1шт.

9

326686R1

SEAT

- nozzle spring, lower, no longer available

1шт.

10

337274R11

SLEEVE CYLINDER

RETAINER ASSEMBLY - nozzle spring, Includes: Ref. 11

1шт.

11

19854R1

PIN,7/64" x 1/4", Coiled

2шт.

12

702101C1

NOZZLE INJECTION

NOZZLE - injection, no longer available (Replaces nozzle 346554R91)

1шт.

13

326685R1

BASE

NUT - nozzle holder, no longer available

1шт.

14

601076C1

WASHER,9.42mm ID x 17.27mm OD x 1.68mm Thk

GASKET - nozzle

1шт.

610716C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, new, Includes: Ref. 15 - 21

6шт.

15

NSS

NOT SOLD SEPARAT

BODY - holder, order nozzle assembly 610716C91

1шт.

16

615109C2

SHIM

- nozzle adjusting, 0.077 inch

1шт.

16

615110C2

SHIM

- nozzle adjusting, 0.075 inch

1шт.

16

615111C2

SHIM

- nozzle adjusting, 0.073 inch

1шт.

16

615112C2

SHIM

- nozzle adjusting, 0.071 inch

1шт.

16

615113C2

SHIM

- nozzle adjusting, 0.069 inch

1шт.

16

615114C2

SHIM

- nozzle adjusting, 0.067 inch

1шт.

16

615115C2

SHIM

- nozzle adjusting, 0.065 inch

1шт.

16

615116C2

SHIM

- nozzle adjusting, 0.063 inch

1шт.

16

615117C2

SHIM

- nozzle adjusting, 0.061 inch

1шт.

16

615118C2

SHIM

- nozzle adjusting, 0.059 inch

1шт.

16

615119C2

SHIM

- nozzle adjusting, 0.057 inch

1шт.

16

615120C2

SHIM

- nozzle adjusting, 0.055 inch

1шт.

16

615121C2

SHIM

- nozzle adjusting, 0.053 inch

1шт.

16

615122C2

SHIM

- nozzle adjusting, 0.051 inch

1шт.

16

615123C2

SHIM

- nozzle adjusting, 0.049 inch

1шт.

16

615124C2

SHIM

- nozzle adjusting, 0.047 inch

1шт.

16

615125C2

SHIM

- nozzle adjusting, 0.045 inch

1шт.

16

615126C2

SHIM

- nozzle adjusting, 0.043 inch

1шт.

16

615127C2

SHIM

- nozzle adjusting, 0.041 inch

1шт.

16

615128C2

SHIM

- nozzle adjusting, 0.039 inch

1шт.

17

615105C1

VALVE SPRING

SPRING - nozzle

1шт.

18

615106C1

SEAT

- spring, lower

1шт.

19

615107C1

PLATE

- intermediate

1шт.

20

606401C91

NOZZLE

- injection

1шт.

21

615108C1

NUT

- nozzle cap

1шт.

22

601076C1

WASHER,9.42mm ID x 17.27mm OD x 1.68mm Thk

SOCKET - nozzle

6шт.

23

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

(Replaces O-ring 364879R1) -118, 70 Duro, .862" ID x .103" Thk

6шт.
