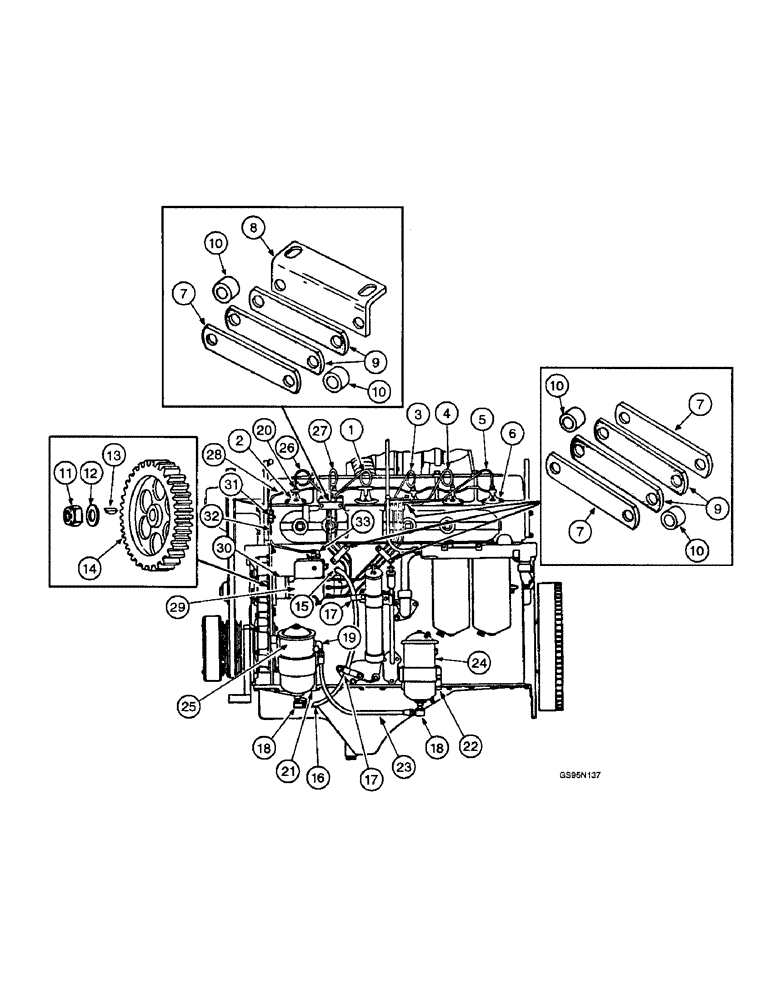

Запчасти Case IH DT-429 (9-34) - FUEL INJECTION PUMP, CONNECTIONS AND PIPES, ENGINE S/N PRIOR TO 11140

1

607271C11

PIPE - injection no. 3, no longer available

1шт.

2

336980R1

NUT

- leakoff manifold sleeve

6шт.

222-102

SLEEVE,1/4" Tube

(Replaces sleeve 915500R1) 1/4" Tube

6шт.

3

341489R11

TUBE

PIPE - injection no. 4, no longer available

1шт.

4

341490R11

TUBE

PIPE - injection no. 5

1шт.

5

341491R11

TUBE

PIPE - injection no. 6

1шт.

6

749083C91

REMAN-INJECT NOZZLE

NOZZLE ASSEMBLY - IH, engine serial numbers prior to 10027, parts list Figure 9-42

6шт.

6

610716C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - Bosch, engine serial number 10028 and after, parts list Figure 9-42

6шт.

601076C1

WASHER,9.42mm ID x 17.27mm OD x 1.68mm Thk

GASKET - nozzle holder

6шт.

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

(Replaces O-ring 364879R1) -118, 70 Duro, .862" ID x .103" Thk

6шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 179845)

12шт.

7

278834R2

CLAMP

- injector pipe

7шт.

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

(Replaces screw 179844) Hex, 3/8"-16 x 1 5/8", G5

6шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

4шт.

8

601444C2

BRACKET - injection pipe clamp, no longer available

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

9

601296C1

PAD

- injection pipe clamp

8шт.

10

601297C1

SPACER - injection pipe clamp, no longer available

8шт.

11

19899R1

NUT

- gear lock

1шт.

12

341508R1

WASHER

- injection pump gear, no longer available

1шт.

13

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

(Replaces key 124546) #6, 5/32" x 5/8", HT

1шт.

14

341395R2

PINION

GEAR - injection pump, no longer available

1шт.

15

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree x 5/8 inch x 1/4 inch PT (Replaces elbow 118755)

1шт.

16

610443C91

HOSE - final filter to pump, 3/8 ID x 27 inch (686 mm) long, no longer available

1шт.

17

267788R1

CLIP - final filter to pump hose, no longer available

2шт.

18

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree street, 3/8 inch PT x female PT, primary and final filter outlet (Replaces elbow 444042)

1шт.

19

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree x 9/16-18 flare x 3/8 inch PT, final filter inlet (Replaces elbow 333934R1)

1шт.

20

250617R1

NUT

- injection pipe

6шт.

250610R2

GUARD

SLEEVE - injection pipe

6шт.

21

607350R1

BRACKET - final fuel filter

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

22

607351R1

BRACKET - primary fuel filter, no longer available

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

23

610444C91

HOSE ASSY.

HOSE - primary filter to final filter, 3/8 ID x 18-1/2 inch (470 mm) long, no longer available

1шт.

24

606380C91

FILTER CARTRIDGE

FILTER ASSEMBLY - primary fuel, parts list page 9-49

1шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

(Replaces screw 181333) Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 615031R1) 3/8"

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

25

338371R91

FILTER CARTRIDGE

FILTER ASSEMBLY - final fuel, parts list page 9-49

1шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

(Replaces screw 181333) Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

195-104

WASHER,3/8"

- flat, 3/8 x 7/8 x 1/16 inch (Replaces washer 615031R1)

4шт.

26

607269C11

TUBE,36.06" Length

PIPE - injection no. 1

1шт.

27

607270C11

PIPE CLAMP

PIPE - injection no. 2, no longer available

1шт.

28

609062C91

MANIFOLD - fuel leakoff to pump, no longer available

1шт.

29

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list pages 9-23 - 9-33

1шт.

346895R1

WIPER SEAL

SEAL - fuel injection pump

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

2шт.

3113934H

WASHER - injection pump, no longer available

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

30

REF

INSTRUCTION

DRIVE - fuel injection pump, see page 9-45

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

3шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

3шт.

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, (Replaces washer 138542) Int Tooth, 3/8"

3шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

3шт.

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch (Replaces washer 142619H)

3шт.

31

222-122

TEE,1/4" Flex Tubing

- leakoff manifold to injection pump tube (Replaces tee 610606C1)

1шт.

32

609131C11

TUBE - leakoff manifold to injection pump, no longer available

1шт.

33

319615R1

ELBOW

- injection pump to leakoff manifold tube, 1/8 inch x 90 degree male

1шт.

279673R91

WASHER

WIRE - injection pump torque screw

1шт.
