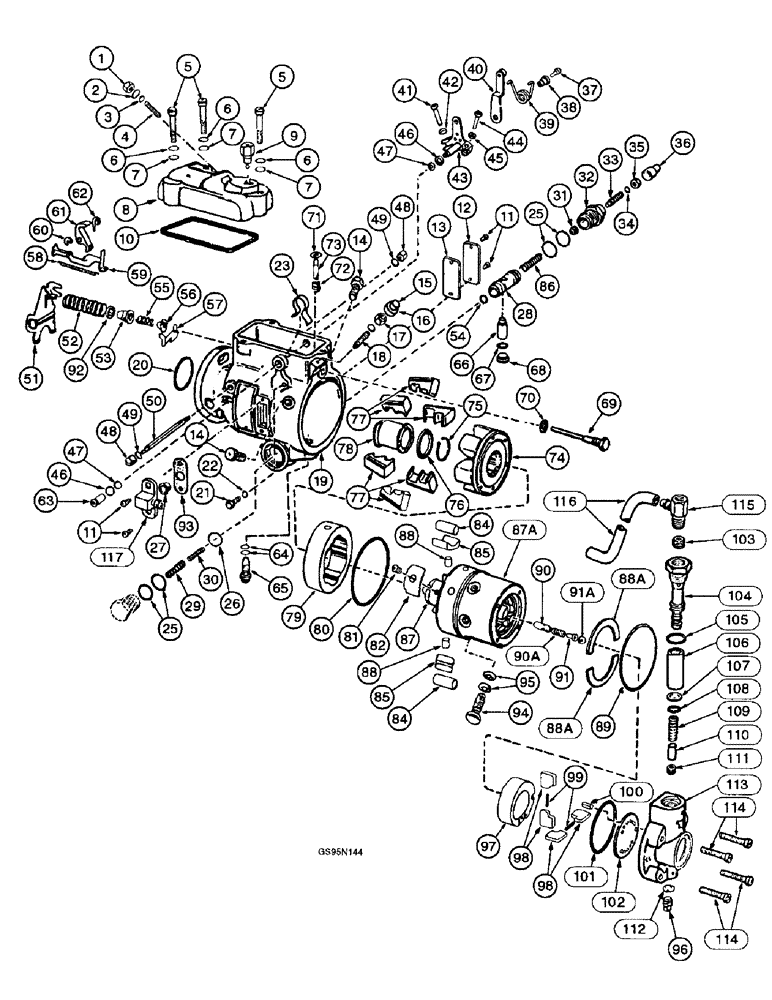

Запчасти Case IH DT-429 (9-28) - FUEL INJECTION PUMP, 4156 TRACTORS

749805C91

PUMP

ASSEMBLY - fuel injection, remanufactured for 619977C92, no longer available

1шт.

619977C92

PUMP ASSEMBLY - fuel injection, new, no longer available, Includes: Ref. 1 - 120

1шт.

336983R91

PUMP

ASSEMBLY - fuel injection, new, no longer available, Includes: Ref. 1 - 120

1шт.

1

51200274

NUT

- low idle adjusting screw (Replaces nut 368009R1)

1шт.

2

304728R1

WASHER

- low idle adjusting screw

1шт.

3

304721R1

SEAL

- low idle adjusting screw (Replaces seal 304729R1)

1шт.

4

304788R1

SET SCREW

- low idle adjusting

1шт.

5

319674R1

SCREW

- cover hold down, no longer available

3шт.

6

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No. 10, cover hold down screw

3шт.

7

319676R1

WASHER

- cover hold down screw

3шт.

8

304744R1

COVER ASSY

COVER - governor control

1шт.

9

610950C91

CONNECTOR, ELEC

CONNECTOR - return line

1шт.

10

368012R1

SEAL

RING - seal, governor control cover

1шт.

11

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

- timing line cover and fitting, machine, slotted oval head, No. 8 x 5/16 inch

4шт.

12

304740R1

COVER ASSY

COVER - timing line

1шт.

13

73453

GASKET

- timing line cover (Replaces gasket 367979R1)

1шт.

14

368810R1

SCREW - head locking

2шт.

15

313287R1

COVER ASSY

CAP - torque screw

1шт.

16

321313R1

NUT

- torque screw

1шт.

17

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Torque screw

1шт.

18

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW - torque

1шт.

19

702349C91

HOUSING - pump, no longer available

1шт.

20

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- 1-1/16 ID x 1/8 inch wide (Replaces seal 304720R1)

1шт.

21

20789R1

SCREW - torque screw hole plug, machine, slotted pan head, 1/4 NF x 1/2 inch, no longer used

1шт.

22

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

23

606415C1

STOP

- high idle screw

1шт.

25

319687R1

WIPER SEAL

- advance piston hole plug

4шт.

26

627885C1

RING

- advance piston, power

1шт.

27

610955C1

SCREW

SCREEN - return oil

1шт.

28

627271C1

PISTON ASSY.

PISTON - advance, no longer available

1шт.

29

606421C1

SPRING - outer advance, no longer available

1шт.

30

346653R1

VALVE SPRING

SPRING - inner advance, no longer available

1шт.

31

606422C1

GUIDE - advance adjusting screw, no longer available

1шт.

32

346888R1

PLUG

- piston hole, spring side, no longer available

1шт.

33

319691R1

CAPSCREW,1/4" x 1.385"

SCREW - advance adjusting

1шт.

34

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Advance adjusting screw

1шт.

35

321313R1

NUT

- advance adjusting screw lock

1шт.

36

313287R1

COVER ASSY

CAP - advance adjusting screw

1шт.

37

217921

SCREW - throttle lever spring, no longer available

1шт.

38

G49621

RETAINER

- throttle lever spring (Replaces retainer 304743R1)

1шт.

39

G48505

SPRING

- throttle lever (Replaces spring 304739R1)

1шт.

40

346702R91

LEVER

- throttle

1шт.

41

627588C1

SCREW - control lever stop, no longer used

1шт.

42

86837534

LOCK WASHER

- control lever stop screw (Replaces nut 368009R1)

1шт.

43

691471C1

SHAFT

- throttle (Replaces shaft 702393C1)

1шт.

44

627588C1

SCREW - control lever stop, no longer used

1шт.

45

51200274

NUT

- low idle adjusting screw (Replaces nut 368009R1)

1шт.

46

R22936

WASHER

- throttle shaft seal (Replaces washer 319744R1)

2шт.

47

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Throttle shaft (Replaces seal 352219R1)

2шт.

48

368018R1

NUT

- pivot shaft retainer

2шт.

49

304721R1

SEAL

- pivot shaft

2шт.

50

368016R1

SHAFT

- governor arm pivot

1шт.

51

321367R1

ARM

- governor

1шт.

52

615987C1

SPRING

- governor control (Replaces spring 319738R1)

1шт.

53

368015R1

RETAINER - idling spring

1шт.

54

346726R1

SEAL

- piston ring

1шт.

55

304810R1

SPRING

- governor idling, no longer available

1шт.

56

347998R1

GUIDE - idling spring

1шт.

57

324188R91

ARM

- metering valve

1шт.

58

367995R1

VALVE SPRING

SPRING - governor linkage

1шт.

59

702350C1

LINKAGE

HOOK - governor linkage

1шт.

60

368023R1

CAM

- shut-off shaft stop, no longer available

1шт.

61

304794R1

LEVER

- throttle shaft

1шт.

62

313690R1

LOCK ASSY

CLIP - shut-off

1шт.

63

691424C1

SHAFT - shut-off (Replaces shaft 615828C1)

1шт.

64

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

2шт.

65

1802905C1

SCREW

- head locating (Replaces screw 627207C1)

1шт.

66

346723R1

DOWEL

PIN - cam advance

1шт.

67

319689R1

WIPER SEAL

- advance screw hole plug

1шт.

68

1805552C1

PLUG

- advance screw hole

1шт.

69

313677R1

STUD

- governor idle spring

1шт.

70

368014R1

WASHER

- guide stud

1шт.

71

313286R1

WASHER

SHIM - metering valve spring

1шт.

72

304746R1

VALVE SPRING

SPRING - metering valve

1шт.

73

630224C1

PUSH BUTTON

VALVE - metering

1шт.

74

702588C91

RETAINER

ASSEMBLY - governor weight, no longer available, Includes: Ref. 75

1шт.

75

346732R1

RING, SNAP,#100, Ext

governor cage, no longer available #100, Ext

1шт.

76

368342R1

THRUST WASHER

- governor sleeve thrust

1шт.

77

319669R1

WEIGHT

- governor

6шт.

78

321369R1

ARM

SLEEVE - governor thrust, no longer available

1шт.

79

610922C2

RING

- cam

1шт.

80

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

81

346720R1

SCREW

- leaf spring adjusting, no longer available

1шт.

81

346719R1

CAPSCREW

SCREW - leaf spring adjusting

1шт.

82

346718R1

VALVE SPRING

SPRING - leaf

2шт.

84

368805R1

ROLLER

- plunger cam

4шт.

85

603530C1

SHOE (ASSY)

SHOE - cam roller, no longer available

4шт.

625956C91

HEAD (CYLINDER)

HEAD AND ROTOR ASSEMBLY - hydraulic, Includes: Ref. 87 - 89

1шт.

87

NSS

NOT SOLD SEPARAT

ROTOR - order head and rotor assembly 625956C91

1шт.

87a

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head and rotor assembly 625956C91

1шт.

88

NSS

NOT SOLD SEPARAT

PLUNGER - order head and rotor assembly 625956C91

1шт.

88a

304800R1

WASHER

RETAINER - rotor

2шт.

89

304801R1

RING

- rotor retainer

1шт.

90

346775R1

LOCK VALVE

VALVE - delivery

1шт.

90a

606144C1

VALVE SPRING

SPRING - delivery valve

1шт.

91

606145C1

LOCK ASSY

STOP - delivery valve

1шт.

91a

317901R1

CAPSCREW,3/25" x 7/32"

SCREW - delivery valve retaining

1шт.

92

324950R1

SPACER

- governor spring, no longer available

1шт.

93

610953C1

GASKET

- timing and return fitting

1шт.

94

73613

SCREW

- fuel line connector (Replaces screw 367983R1)

6шт.

95

670207C1

GASKET

WASHER - fuel line connector screw

12шт.

96

615695C1

PLUG

- end plate pipe

1шт.

97

304745R1

GUIDE

LINER - transfer pump

1шт.

98

619761C1

BLADE

- transfer pump

4шт.

99

346724R1

SPRING

- transfer pump blade

2шт.

100

368812R1

DOWEL

PIN - roll, end plate

1шт.

101

367982R1

O-RING,0.154" Width

SEAL - transfer pump, no longer available

1шт.

102

346725R1

PLATE ASSY.

PLATE - thrust

1шт.

103

346705R91

PLUG

- end plate adjusting

1шт.

104

1808814C1

SPOOL

SLEEVE - end plate

1шт.

REF NO104 and 111. If you order the 1808814c1 you do not need the seal 615142c1 any longer.

1шт.

105

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, End plate sleeve

1шт.

106

A43870

FILTER, FUEL

ELEMENT - filter (Replaces element 346708R1)

1шт.

107

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

108

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Sleeve seal

1шт.

109

A43867

SPRING

- regulating (Replaces spring 346707R1)

1шт.

110

367988R1

PLUNGER

PISTON - regulating

1шт.

111

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1, item 104

1шт.

REF NO104 and 111. If you order the 1808814c1 you do not need the seal 615142c1 any longer.

1шт.

112

340214R1

SEAL

- end plate plug

1шт.

113

346704R1

PLATE ASSY.

PLATE - end

1шт.

615489C1

LOCK ASSY

STRAP - end plate

2шт.

114

615491C1

SCREW

- end plate

4шт.

615733C1

CLIP

- screw retaining

4шт.

115

610954C91

FITTING - inlet, no longer available

1шт.

116

610952C91

HOSE - fuel returning by-pass, no longer available

1шт.

117

610951C91

FITTING

- timing and return

1шт.

118

603940C92

GASKET KIT

KIT - fuel injection pump overhaul, not illustrated

1шт.

119

606491C1

PLATE ASSY.

PLATE - name, not illustrated

1шт.

120

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

- name plate, drive, round head, No. 10 x 1/8 inch (Replaces screw 145362), not illustrated

2шт.
