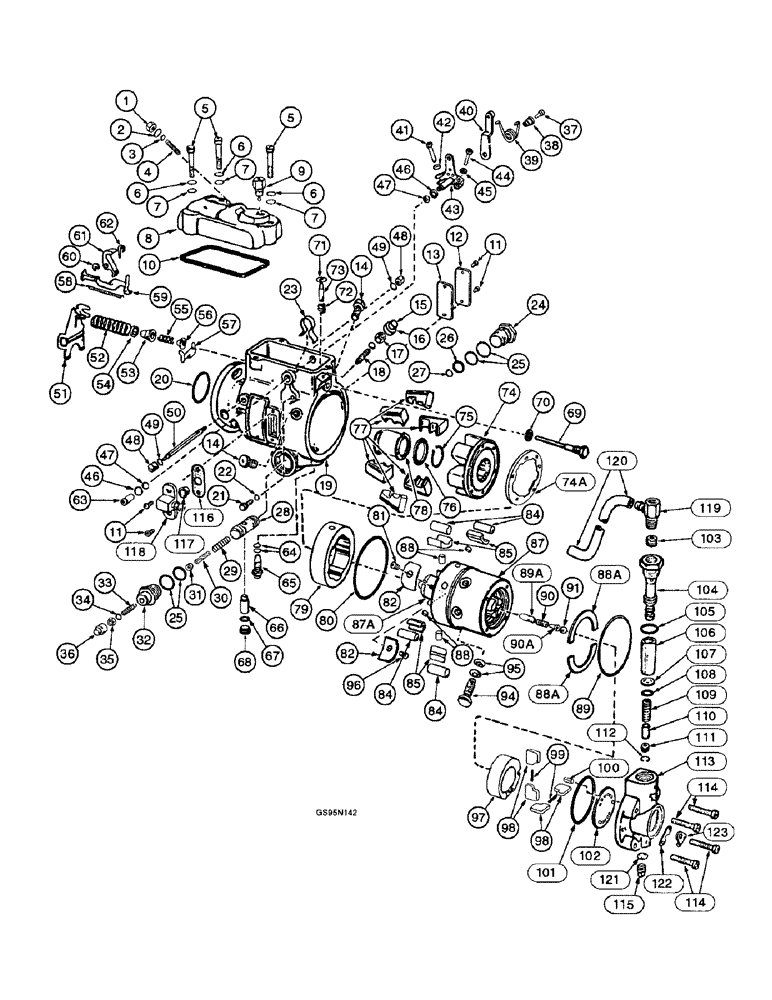

Запчасти Case IH DT-429 (9-22) - FUEL INJECTION PUMP, ROOSA-MASTER, 4100 TRACTORS

749527C91

PUMP

ASSEMBLY - fuel injection, remanufactured for 610441C91, no longer available

1шт.

610441C91

PUMP ASSEMBLY - fuel injection, new, no longer available, Includes: Ref. 1 - 128

1шт.

1

51200274

NUT

- low idle adjusting screw (Replaces nut 368009R1)

1шт.

2

304728R1

WASHER

- low idle adjusting screw

1шт.

3

304721R1

SEAL

- low idle adjusting screw (Replaces seal 304729R1)

1шт.

4

304788R1

SET SCREW

- low idle adjusting

1шт.

5

319674R1

SCREW

- cover hold down, no longer available

3шт.

6

138534

LOCK WASHER,Int Tooth, #10

WASHER - cover screw lock, internal tooth, No. 10

3шт.

7

319676R1

WASHER

- cover hold down screw

3шт.

8

304744R1

COVER ASSY

COVER - governor control

1шт.

9

610950C91

CONNECTOR, ELEC

CONNECTOR - return line

1шт.

10

368012R1

SEAL

RING - seal, governor control cover

1шт.

11

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

- slotted oval head, No. 8 x 5/16 inch

4шт.

12

304740R1

COVER ASSY

COVER - timing line

1шт.

13

NLS

NO LONGER SERVICED

- timing line cover (Replaces gasket 367979R1)

1шт.

14

368810R1

SCREW - head locking

2шт.

15

313287R1

COVER ASSY

CAP - torque screw

1шт.

16

321313R1

NUT

- torque screw

1шт.

17

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Torque screw (Replaces seal 352219R1)

1шт.

18

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW - torque

1шт.

19

702349C91

HOUSING ASSEMBLY - pump, no longer available, Includes: Ref. 19A

1шт.

19a

619449C1

BUSHING

- housing, no longer available, not illustrated

2шт.

20

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- 1-1/16 ID x 1/8 inch wide (Replaces seal 304720R1)

1шт.

21

20789R1

SCREW - torque screw hole plug, slotted pan head, 1/4 NF x 1/2 inch, no longer used

1шт.

22

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

23

606415C1

STOP

- high idle screw

1шт.

24

346887R1

PLUG

- piston hole, power side, no longer available

1шт.

25

319687R1

WIPER SEAL

- advance piston hole plug

4шт.

26

627885C1

RING

- advance piston, power

1шт.

27

346726R1

SEAL

- piston ring

1шт.

28

627271C1

PISTON ASSY.

PISTON - advance, no longer available

1шт.

29

606421C1

SPRING - outer advance, no longer available

1шт.

30

346653R1

VALVE SPRING

SPRING - inner advance, no longer available

1шт.

31

606422C1

GUIDE - advance adjusting screw, no longer available

1шт.

32

346888R1

PLUG

- piston hole, spring side, no longer available

1шт.

33

319691R1

CAPSCREW,1/4" x 1.385"

SCREW - advance adjusting

1шт.

34

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Advance adjusting screw (Replaces seal 352219R1)

1шт.

35

321313R1

NUT

- advance adjusting screw lock

1шт.

36

313287R1

COVER ASSY

CAP - advance adjusting screw

1шт.

37

217921

SCREW - throttle lever, hex, No. 10 x 5/8 inch, no longer available

1шт.

38

G49621

RETAINER

- throttle lever spring (Replaces retainer 304743R1)

1шт.

39

G48505

SPRING

- throttle lever (Replaces spring 304739R1)

1шт.

40

346702R91

LEVER

- throttle

1шт.

41

627588C1

SCREW - high idle adjusting, no longer used

1шт.

42

51200274

NUT

- high idle adjusting screw (Replaces nut 368009R1)

1шт.

43

691471C1

SHAFT

- throttle (Replaces shaft 702393C1)

1шт.

44

627588C1

SCREW - throttle lever stop, no longer used

1шт.

45

51200274

NUT

- control lever stop screw (Replaces nut 368009R1)

1шт.

46

R22936

WASHER

- shut-off and throttle shaft (Replaces washer 319744R1)

2шт.

47

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Shut-off and throttle shaft (Replaces seal 352219R1)

2шт.

48

368018R1

NUT

- pivot shaft retainer

2шт.

49

304721R1

SEAL

- pivot shaft

2шт.

50

368016R1

SHAFT

- governor arm pivot

1шт.

51

321367R1

ARM

- governor

1шт.

52

615987C1

SPRING

- governor control (Replaces spring 319738R1)

1шт.

53

368015R1

RETAINER - idling spring

1шт.

54

324950R1

SPACER

- governor control spring, no longer available

1шт.

55

304810R1

SPRING

- governor idling, no longer available

1шт.

56

367998R1

GUIDE

- idling spring

1шт.

57

324188R91

ARM

- metering valve

1шт.

58

367995R1

VALVE SPRING

SPRING - governor linkage

1шт.

59

702350C1

LINKAGE

HOOK - governor linkage

1шт.

60

313690R1

LOCK ASSY

CLIP - shut-off

1шт.

61

304794R1

LEVER

- throttle shaft

1шт.

62

368023R1

CAM

- shut-off, no longer available

1шт.

63

691424C1

SHAFT - shut-off (Replaces shaft 615828C1)

1шт.

64

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

2шт.

65

1802905C1

SCREW

- head locating (Replaces screw 627207C1)

1шт.

66

346723R1

DOWEL

PIN - cam advance

1шт.

67

319689R1

WIPER SEAL

- advance screw hole plug

1шт.

68

1805552C1

PLUG

- advance screw hole

1шт.

69

313677R1

STUD

- governor idle spring

1шт.

70

368014R1

WASHER

- guide stud

1шт.

71

313286R1

WASHER

SHIM - metering valve spring

1шт.

72

304746R1

VALVE SPRING

SPRING - metering valve

1шт.

73

630224C1

PUSH BUTTON

VALVE - metering

1шт.

74

702588C91

RETAINER

ASSEMBLY - governor weight, no longer available, Includes: Ref. 74A

1шт.

74a

615768C1

CLIP

RING - flexible retaining

1шт.

75

346732R1

RING, SNAP,#100, Ext

governor cage, no longer available #100, Ext

1шт.

76

368342R1

THRUST WASHER

- governor sleeve thrust

1шт.

77

319669R1

WEIGHT

- governor

6шт.

78

321369R1

ARM

SLEEVE - governor thrust, no longer available

1шт.

79

610922C2

RING

- cam

1шт.

80

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

81

346719R1

CAPSCREW

SCREW - leaf spring adjusting

1шт.

82

346718R1

VALVE SPRING

SPRING - plunger limiting leaf

2шт.

84

368805R1

ROLLER

- plunger cam

4шт.

85

346890R1

SHOE - cam roller

4шт.

625956C91

HEAD (CYLINDER)

HEAD AND ROTOR ASSEMBLY - hydraulic, Includes: Ref. 87 - 89

1шт.

87

NSS

NOT SOLD SEPARAT

ROTOR - order head and rotor assembly 625956C91

1шт.

87a

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head and rotor assembly 625956C91

1шт.

88

NSS

NOT SOLD SEPARAT

PLUNGER - order head and rotor assembly 625956C91

4шт.

88a

304800R1

WASHER

RETAINER - rotor

2шт.

89

304801R1

RING

- rotor retainer

1шт.

89a

346775R1

LOCK VALVE

VALVE - delivery

1шт.

90

606144C1

VALVE SPRING

SPRING - delivery valve

1шт.

90a

606145C1

LOCK ASSY

STOP - delivery valve

1шт.

91

317901R1

CAPSCREW,3/25" x 7/32"

SCREW - delivery valve retaining

1шт.

94

347983R1

SCREW - fuel line connector, no longer available

6шт.

95

670207C1

GASKET

WASHER - fuel line connector screw, not included with pump assembly 749527C91

12шт.

96

346720R1

SCREW

- leaf spring adjusting, no longer available

1шт.

97

304745R1

GUIDE

LINER - transfer pump

1шт.

98

619761C1

BLADE

- transfer pump

4шт.

99

346724R1

SPRING

- transfer pump blade

2шт.

100

368812R1

DOWEL

PIN - roll, end plate

1шт.

101

367982R1

O-RING,0.154" Width

SEAL - transfer pump, 1-1/2 x 1-13/16 x 5/32 inch, no longer available

1шт.

102

346725R1

PLATE ASSY.

PLATE - thrust

1шт.

103

346705R91

PLUG

- end plate adjusting

1шт.

104

1808814C1

SPOOL

SLEEVE - end plate

1шт.

REF NO104 and 111. If you order the 1808814c1 you do not need the seal 615142c1 any longer.

1шт.

105

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Fuel inlet strainer

1шт.

106

A43870

FILTER, FUEL

ELEMENT - filter (Replaces element 346708R1)

1шт.

107

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

108

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, End plate sleeve

1шт.

109

A43867

SPRING

- regulating (Replaces spring 346707R1)

1шт.

110

367988R1

PLUNGER

PISTON - regulating

1шт.

111

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1, item 104 (Replaces seal 346706R1)

1шт.

REF NO104 and 111. If you order the 1808814c1 you do not need the seal 615142c1 any longer.

1шт.

112

D61943

SNAP RING,0.25", Int, #25

Ring, Snap, , piston retainer, used with seal 346706R1 (replaces ring 346731R1) 0.25", Int, #25

1шт.

113

346704R1

PLATE ASSY.

PLATE - end

1шт.

114

615491C1

SCREW

- end plate retaining, together with four clips 615733C1 and two straps 615489C1, will work for screw 304790R1 and washer 319676R1

1шт.

115

615695C1

PLUG

- end plate pipe, together with seal 340214R1, will work for plug 346712R1

1шт.

116

610953C1

GASKET

- fitting

1шт.

117

610955C1

SCREW

SCREEN - return oil

1шт.

118

610951C91

FITTING

- housing

1шт.

119

610954C91

FITTING - inlet, no longer available

1шт.

120

610952C91

HOSE - return oil, no longer available

1шт.

121

340214R1

SEAL

- end plate plug

1шт.

122

615489C1

LOCK ASSY

STRAP - end plate

2шт.

123

615733C1

CLIP

- screw retaining

4шт.

124

603940C92

GASKET KIT

KIT - injection pump service, not illustrated

1шт.

125

606491C1

PLATE ASSY.

PLATE - name, not illustrated

1шт.

126

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

- name plate, drive, round head, No. 10 x 1/8 inch (Replaces screw 145362), not illustrated

2шт.

127

678026C1

ELECTRICAL WIRE

WIRE - lock, injection pump, not illustrated

2шт.

128

687459C1

ELECTRICAL WIRE

SEAL - injection pump wire (Replaces seal 678027C1), not illustrated

2шт.
