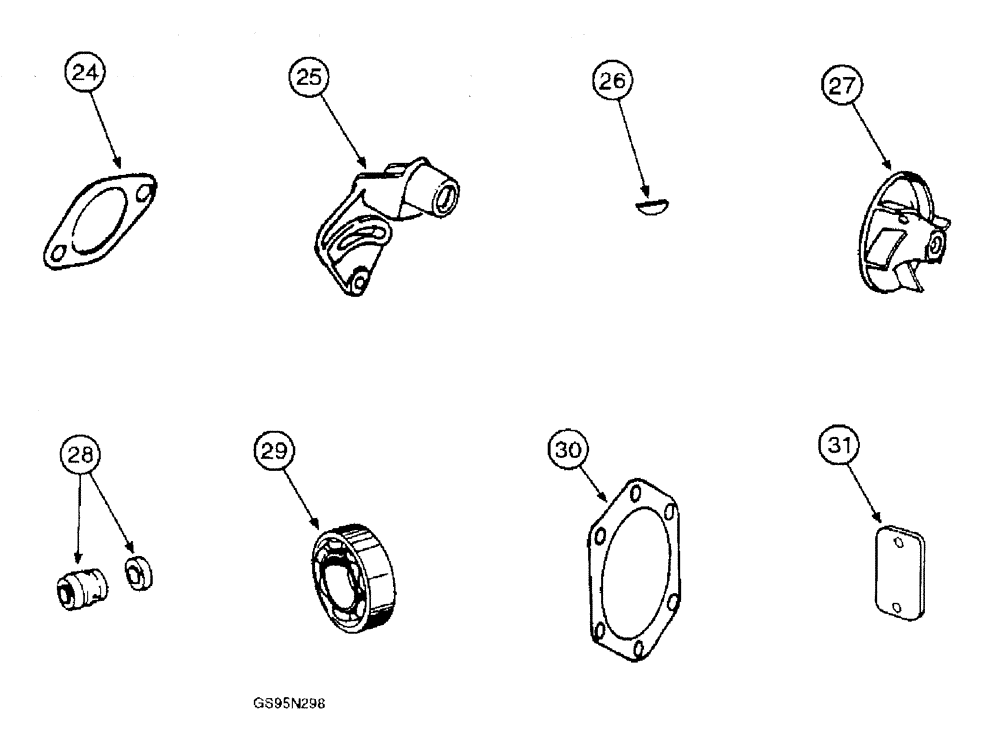

Запчасти Case IH DT-429 (9-20) - SERVICE KITS

670713C92

PACKAGE

KIT - solar turbocharger conversion, continued, no longer available, order components, Includes: Parts Listed Below

1шт.

24

1342827C1

SHIELD

GASKET - oil drain tube flange (Replaces gasket 670079C3)

1шт.

670080C1

SLEEVE CYLINDER

SLEEVE - turbocharger exhaust, no longer available

1шт.

702299C1

ASSEMBLY

SEAL - exhaust sleeve

1шт.

347184R91

SEALING RING

SEAL - exhaust sleeve, no longer available

1шт.

400445R1

HOSE

HOSE - air cleaner to turbocharger, no longer availablev

1шт.

613626C91

SPARE PART CLAMP - heavy duty t-bolt, no longer available

1шт.

401419R1

SPARE PART PAD - air cleaner hose support, 24 inch (607 mm) long, cut from bulk stock 990543R1

1шт.

403996R1

SUPPORT - air cleaner hose, front, no longer available

1шт.

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

(Replaces 181360)

2шт.

650526R1

SPARE PART CLAMP - air cleaner hose, front, no longer available

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT - carriage, 1/2 NC x 1 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

(Replaces nut 102637)

1шт.

1085318R1

SPARE PART PAMPHLET - installation instruction

1шт.

609461C92

STRIPPER PACKAGE

KIT - water pump service, no longer available as a kit, order components, Includes: Parts Listed Below

1шт.

25

607322C1

SHAFT

SHAFT - water pump

1шт.

26

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

(Replaces key 124545)

1шт.

27

332304R1

IMPELLER

SPARE PART IMPELLER - water pump, no longer available

1шт.

28

687161C92

KIT

KIT - seal, water pump

1шт.

338394R91

SEAL

SEAL - oil, water pump, rear

1шт.

347235R91

SEAL

SPARE PART SEAL - oil, water pump, front, no longer available

1шт.

29

ST286

BALL BEARING,17mm ID x 47mm OD x 14mm W

BEARING - rear

1шт.

29

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING - doffer drive shaft upper, front

1шт.

100-21206

SNAP RING,2.062", Int, #206

(Replaces 456736C1)

1шт.

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

Water pump (Replaces O-ring 252723R1)

1шт.

345394R1

BUSHING

RING - wear, water pump seal

1шт.

30

349254R1

GASKET

GASKET - water pump, no longer available

1шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT - pulley (Replaces nut 19263R1)

1шт.

603940C92

GASKET KIT

KIT - fuel injection pump overhaul gasket, Includes: Parts Listed Below

1шт.

346726R1

SEAL

SEAL - piston ring

1шт.

670207C1

GASKET

WASHER - fuel line connector screw

16шт.

31

NLS

NO LONGER SERVICED

- timing line cover (Replaces gasket 367979R1)

2шт.

368012R1

SEAL

RING - seal, governor control cover

1шт.

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

(Replaces seal 304720R1)

1шт.

304721R1

SEAL

SEAL - pivot shaft

2шт.

319687R1

WIPER SEAL

SEAL - advance piston hole plug

4шт.

319689R1

WIPER SEAL

SEAL - advance screw hole plug

1шт.

R14711

SEAL

SEAL - drive shaft oil (Replaces seal 313288R1)

2шт.

A43871

SEAL

SEAL - element (Replaces seal 346709R1)

1шт.

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

(Replaces seal 352219R1)

1шт.

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

367982R1

O-RING,0.154" Width

SEAL - 1-1/2 x 1-13/16 x 5/32 inch, no longer available

1шт.

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

(Replaces seal 371544R1)

1шт.

1807682C1

SEAL

SEAL - hydraulic head (Replaces seal 368337R1)

1шт.

R22936

WASHER

WASHER - shut-off and throttle shaft (Replaces washer 319744R1)

2шт.

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

367984R1

SEALING WASHER

WASHER - cam locating screw

1шт.

368014R1

WASHER

WASHER - guide stud

1шт.

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1

1шт.
