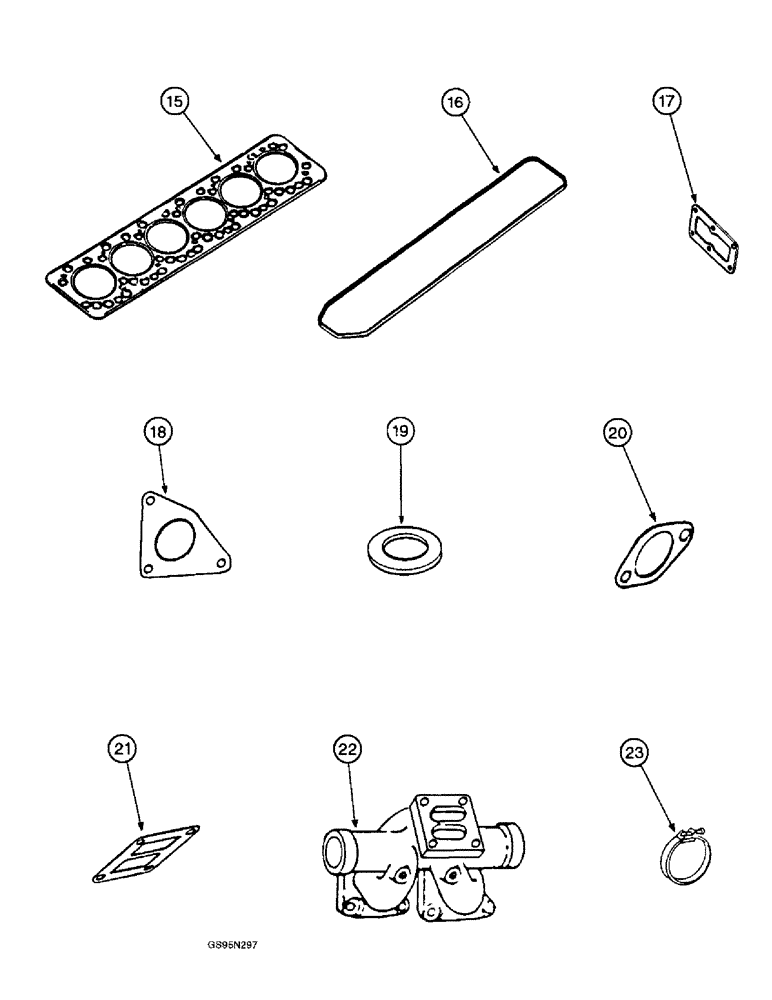

Запчасти Case IH DT-429 (9-18) - SERVICE KITS

345289R93

STRIPPER PACKAGE

KIT - crankcase gasket, continued, Includes: Parts Listed Below

1шт.

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

-250, 70 Duro, 4.984" ID x .139 Thk, Water pump breather housing (Replaces O-ring 22414R1)

1шт.

59657D

WASHER,13.1mm ID x 19.05mm OD x 1.58mm Thk

- filter bolt

2шт.

119937

GASKET,Copper, 1/2" x 11/16"

WASHER - filter drain

2шт.

345290R92

GASKET KIT

KIT - gasket, valve grinding, Includes: Parts Listed Below

1шт.

328767R1

GASKET

- air cross over elbow, no longer available

1шт.

337195R1

GASKET - cover plate, no longer available

1шт.

15

341117R4

GASKET

- cylinder head

1шт.

16

337302R1

GASKET

- cylinder head cover

1шт.

17

330421R1

GASKET

- cylinder head front plate

1шт.

18

315791R1

GASKET

- exhaust manifold

6шт.

19

601076C1

WASHER,9.42mm ID x 17.27mm OD x 1.68mm Thk

GASKET - nozzle

6шт.

315817R1

GASKET

- rear end plate, no longer available

1шт.

264429R1

GASKET - turbocharger, no longer available

1шт.

20

253664R2

GASKET

- turbocharger oil drain

1шт.

20

1342834C1

GASKET

- turbocharger oil inlet tube (Replaces gasket 253660R1)

1шт.

21

1342826C1

GASKET

- turbocharger, air research (Replaces gasket 670073C1)

1шт.

253664R2

GASKET

- turbocharger oil inlet

1шт.

1342827C1

SHIELD

GASKET - turbocharger oil drain, air research (Replaces gasket 670079C3)

1шт.

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Dust seal (Replaces O-ring 364879R1) -118, 70 Duro, .862" ID x .103" Thk

6шт.

670713C92

PACKAGE

KIT - solar turbocharger conversion, no longer available, order components, Includes: Parts Listed Below

1шт.

REF

INSTRUCTION

TURBOCHARGER - engine

1шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, , Turbocharger mounting (Replaces nut 9413980) 3/8"-24, GC

4шт.

21

670073C1

GASKET

- turbocharger

1шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

22

670081C1

MANIFOLD

- exhaust center, no longer available

1шт.

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

256333R1

STUD

- pump mounting, exhaust manifold

4шт.

315791R1

GASKET

- exhaust manifold

6шт.

701135C1

TUBE - air crossover, no longer available

1шт.

670040C2

HOSE,1.96" ID x 2.50", SAE J200

Air Crossover 1.96" ID x 2.50", SAE J200

1шт.

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp 274087R91) #28, 1.31/2.25 Type F Worm

2шт.

601145C1

HOSE

- air crossover, no longer available

1шт.

23

615139C1

CLAMP

- hose, no longer available

2шт.

701133C1

TUBE - oil inlet, no longer available

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

328990R1

CLIP - turbocharger

1шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

1шт.

1342834C1

GASKET

- turbocharger oil inlet tube (Replaces gasket 253660R1)

1шт.

277737R1

SLEEVE

- oil inlet tube

1шт.

701134C1

TUBE

- oil drain upper, no longer available

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.
