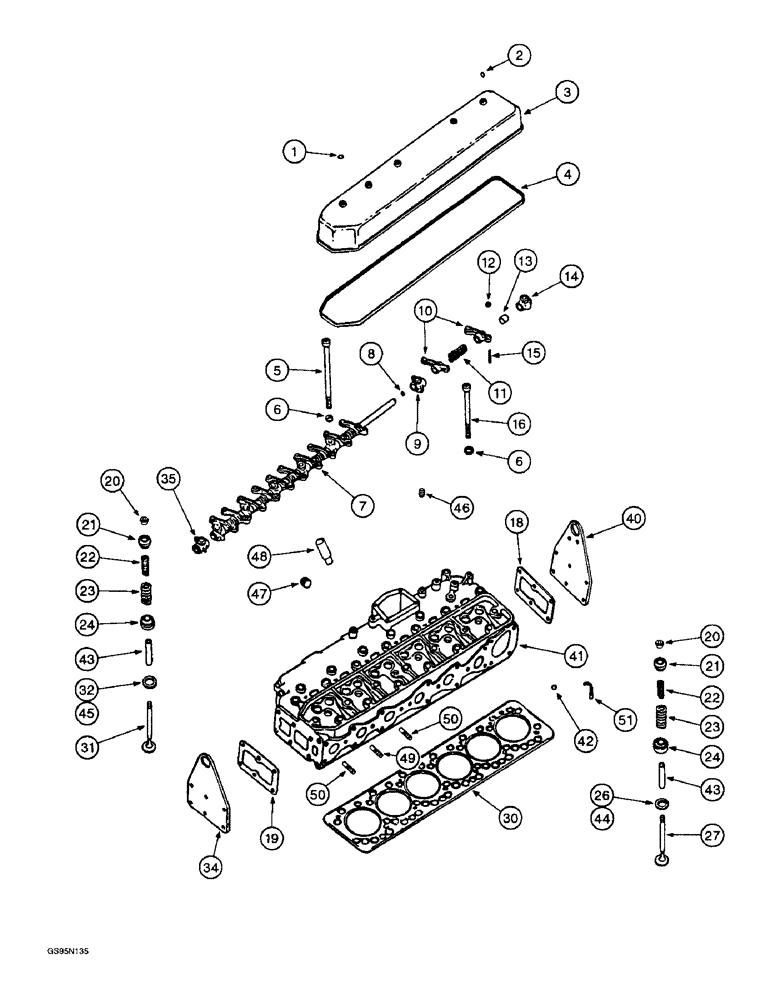

Запчасти Case IH DT-429 (9-14) - CYLINDER HEAD AND RELATED PARTS

1

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER - valve cover bolt

4шт.

2

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 444655)

1шт.

3

345078R2

COVER ASSY

COVER - valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces bolt 179848)

4шт.

4

337302R1

GASKET

- valve cover

1шт.

5

601943C2

BOLT (SPREADER)

BOLT - cylinder head, long, no longer available

7шт.

6

39422D

WASHER

- cylinder head bolt

26шт.

7

326839R21

SHAFT

ASSEMBLY - valve lever, no longer available, Includes: Ref. 8

1шт.

8

109544R1

PLUG

- valve lever shaft

2шт.

9

326841R1

BRACKET - valve lever shaft, no longer available

5шт.

10

326837R21

LEVER

- valve, no longer available

12шт.

11

133642R1

SPRING

- valve lever

6шт.

12

133093R1

NUT,Hex, 3/8" - 24

- valve lever adjusting screw

1шт.

13

326838R3

BUSHING

- valve lever

1шт.

14

326840R1

BRACKET - valve lever shaft front, no longer available

1шт.

15

16067DA

ADJUSTMENT SCREW,3/8" - 24

- valve lever adjusting

1шт.

16

601944C2

BOLT (SPREADER)

BOLT - cylinder head, short

19шт.

18

330421R1

GASKET

- front end plate

1шт.

19

315817R1

GASKET

- rear end plate, no longer available

1шт.

20

A27554

SPRING LOCK

LOCK - valve spring retainer (Replaces lock 60437R1)

24шт.

21

341076R1

RETAINER

- valve spring, no longer available

12шт.

22

684056C1

SPRING

- valve inner (Replaces spring 133472R1)

12шт.

23

133473R1

SPRING

- valve outer

12шт.

24

337375R91

CUP ASSY.

ROTOCOIL - intake and exhaust valve, no longer available

12шт.

26

349042R1

INSERT - intake valve seat, 0.005 inch oversize, no longer available

6шт.

26

349043R1

SEAT

INSERT - intake valve seat, 0.015 inch oversize, no longer available

6шт.

27

601864C1

LOCK VALVE

VALVE - intake

6шт.

30

341117R4

GASKET

- cylinder head

1шт.

31

341057R3

VALVE

- exhaust

6шт.

32

609032C1

INSERT

- exhaust valve seat, 0.005 inch oversize (Replaces insert 609033C1)

6шт.

32

609034C1

SEAT

INSERT - exhaust valve seat, 0.015 inch oversize, no longer available

6шт.

34

607339C21

EYE - rear lifting, no longer available

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

6шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

6шт.

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - pipe, 1/2 inch PT (Replaces plug 445751)

1шт.

35

330016R1

BRACKET - valve lever shaft rear, no longer available

1шт.

40

330420R2

EYE - front lifting, no longer available

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

345129R94

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, no longer available, Includes: Ref. 41 - 51

1шт.

41

NSS

NOT SOLD SEPARAT

HEAD - cylinder, order head assembly 345129R94

1шт.

42

211-1016

BALL,12.7mm OD, Gr 24

- chrome alloy steel, 1/2 inch, grade 24 (Replaces ball 17016R1)

6шт.

43

341059R1

GUIDE

- valve

12шт.

44

345015R1

SEAT

INSERT - intake valve seat, standard, no longer available

16шт.

45

610272C1

SEAT

INSERT - exhaust valve seat, standard, no longer available

6шт.

46

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 445751)

1шт.

47

221-846

PLUG,Hex Soc, 1"-11 1/2

- hex socket, 1 inch PT (Replaces plug 444679)

9шт.

48

326503R1

SLEEVE CYLINDER

SLEEVE - injector

6шт.

49

250450R1

STUD

- manifold

16шт.

50

273851R1

STUD

- manifold

2шт.

51

326833R1

TUBE - jet, no longer available

12шт.
