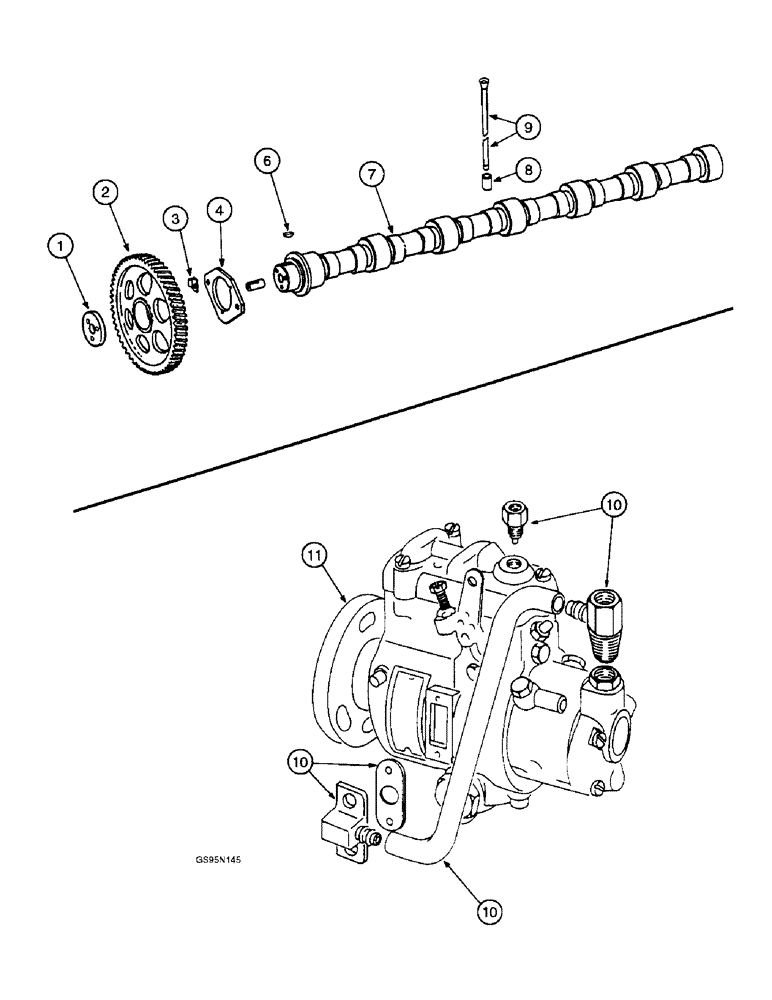

Запчасти Case IH DT-429 (9-12) - CAMSHAFT AND RELATED PARTS / FUEL RETURN BY-PASS SYSTEM

1

315778R2

RETAINER

- camshaft gear

1шт.

425475

SCREW - hex, 3/8 NC x 1-1/8 inch, includes lock washer

3шт.

2

326868R3

GEAR WHEEL

GEAR - camshaft

1шт.

3

277788R1

RETAINER

LOCK - bolt

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

2шт.

4

326867R1

PLATE ASSY.

PLATE - camshaft thrust

1шт.

6

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

(No. 807) (Replaces key 124551) #A, 1/4" x 7/8", HT

1шт.

7

332409R21

CAMSHAFT

ASSEMBLY - engine, no longer available, Includes: Ref. 7A

1шт.

7a

330306R1

SLEEVE CYLINDER

SLEEVE - tachometer drive, not shown, no longer available

1шт.

8

911776R3

TAPPET

- valve

12шт.

9

341055R91

ROD

- valve push, no longer available

12шт.

10

606847C91

STRIPPER PACKAGE

KIT - fuel return by-pass, no longer available

1шт.

11

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figures 9-22 & 9-28

1шт.
