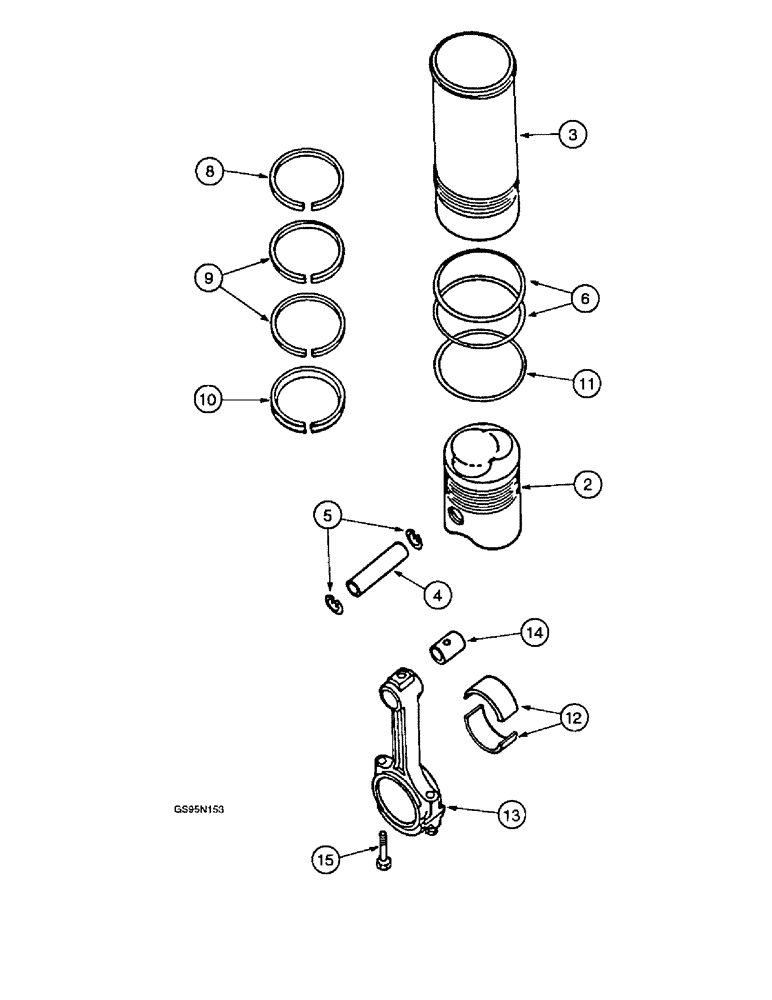

Запчасти Case IH DT-429 (9-10) - CONNECTING RODS, PISTONS AND SLEEVE SETS

349290R96

PISTON

KIT - piston and sleeve, Includes: Ref. 2 - 11, no longer available, order components

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - order kit 349290R96

1шт.

3

A77689

SLEEVE

- cylinder (Replaces sleeve 677127C2)

1шт.

4

326873R1

AXLE PIN

PIN - piston

1шт.

5

326874R1

RETAINER

RING - piston pin retaining

2шт.

6

326967R2

RING

- packing, cylinder sleeve, no longer available, order ring 684938C1

3шт.

6

684938C1

O-RING

RING - packing, cylinder sleeve

3шт.

674730C91

PACKAGE, RINGS

KIT - piston ring service, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

RING - compression piston, top or first groove, order kit 674730C91

1шт.

9

NSS

NOT SOLD SEPARAT

RING - compression piston, second groove, order kit 674730C91

2шт.

10

NSS

NOT SOLD SEPARAT

RING - oil piston, third or bottom groove, order kit 674730C91

1шт.

11

349104R3

SHIM

- cylinder sleeve, 0.002 inch

1шт.

11

601262C1

SHIM - cylinder sleeve, 0.0063 inch

1шт.

11

601263C1

SHIM - cylinder sleeve, 0.008 inch

1шт.

11

601264C1

SHIM - cylinder sleeve, 0.010 inch, no longer available

1шт.

11

601265C1

SHIM

- cylinder sleeve, 0.0159 inch

1шт.

11

601266C1

SHIM

- cylinder sleeve, 0.0201 inch

1шт.

11

609016C1

SHIM

- cylinder sleeve, 0.064 inch

1шт.

12

674365C1

BEARING SET

- connecting rod, two halves, standard

6шт.

12

674367C1

BEARING SET

BEARING - connecting rod, two halves, 0.010 inch oversize

6шт.

12

674369C1

BEARING SET

- connecting rod, two halves, 0.030 inch oversize

6шт.

13

601015C12

ROD

ASSEMBLY - connecting, Includes: Ref. 14 & 15

6шт.

14

317505R1

BEARING

BUSHING - upper end rod

1шт.

15

601016C2

BOLT

- connecting rod

2шт.
