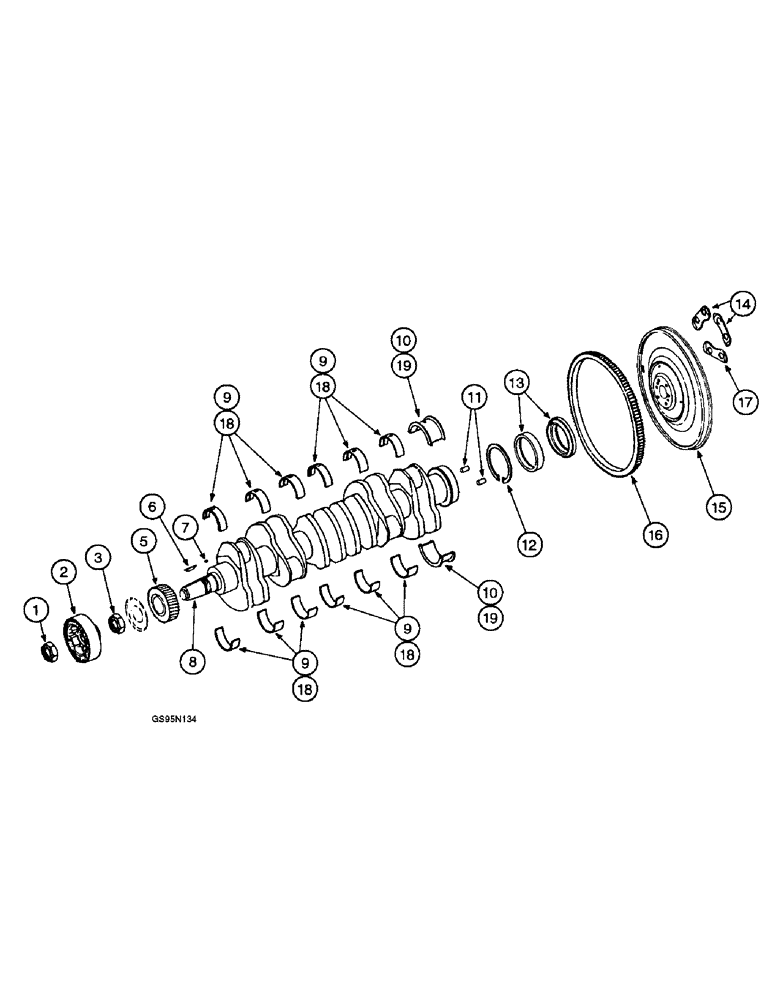

Запчасти Case IH DT-429 (9-08) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

612039C2

NUT

- crankshaft

1шт.

2

610058C91

DAMPER - crankshaft, no longer available

1шт.

3

625359C1

NUT

- gear

1шт.

5

343176R1

GEAR WHEEL

GEAR - crankshaft (Replaces gear 326857R1)

1шт.

6

126-148

WOODRUFF KEY,#29, 3/8" x 2 1/8", HT

KEY - Woodruff, 3/8 x 2-1/8 inch, No. 29 (Replaces key 118002)

1шт.

7

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

349348R92

CRANKSHAFT

ASSEMBLY - standard, Includes: Ref. 8 - 11, no longer available, order components

1шт.

8

NSS

NOT SOLD SEPARAT

CRANKSHAFT - standard, order crankshaft assembly 349348R92

1шт.

50410DA

PLUG

- crankshaft

6шт.

674365C1

BEARING SET

- standard (Replaces bearing 337265R11)

6шт.

9

332028R91

BEARING SET

- crankshaft main, two halves, standard

6шт.

10

332031R91

BEARING SET

BEARING - crankshaft thrust, two halves, standard

1шт.

11

37-11024

DOWEL,5/8" x 1 1/2"

PIN - dowel, 5/8 x 1-1/2 inch, flywheel to crankshaft (Replaces pin 19875R1)

2шт.

12

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, (Replaces 456736R1) 2.062", Int, #206

1шт.

13

1809964C92

OIL SEAL

KIT - crankshaft rear oil seal and wear sleeve service, also includes gasket 332303R1 (Replaces kit 609333C93)

1шт.

14

349083R1

RETAINER

LOCK - bolt

2шт.

15

612314C11

FLYWHEEL ASSEMBLY - crankshaft, no longer available, Includes: Ref. 16

1шт.

16

326759R1

GEAR

- flywheel ring, 132 teeth

1шт.

349375R1

BOLT - flywheel to crankshaft, no longer available

6шт.

17

349084R1

RETAINER

LOCK - bolt

1шт.

349352R91

KIT - crankshaft, undersize, Includes: Undersize Crankshaft & Ref. 18 & 19

1шт.

KIt 349352R91 and component bearings are no longer available.

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT - undersize, order kit 349352R91

1шт.

18

332035R91

BEARING

- crankshaft main, two halves, 0.002 inch undersize

6шт.

18

332042R91

BEARING - crankshaft main, two halves, 0.010 inch undersize

6шт.

18

332049R91

BEARING

- crankshaft main, two halves, 0.020 inch undersize

6шт.

18

332056R91

BEARING

- crankshaft main, two halves, 0.030 inch undersize

6шт.

19

332038R91

BEARING

- crankshaft thrust, two halves, 0.002 inch undersize

1шт.

19

332045R91

BEARING LINER

BEARING - crankshaft thrust, two halves, 0.010 inch undersize

1шт.

19

332052R91

BEARING - crankshaft thrust, two halves, 0.020 inch undersize

1шт.

19

332059R91

BEARING

- crankshaft thrust, two halves, 0.030 inch undersize

1шт.
